How to Bake High Poly to Low Poly in Substance Painter: A Complete Workflow Guide

Baking high-poly detail to a low-poly model is a core skill in game asset and animation workflows. In this guide, we’ll explain how to bake a high poly to low poly in Substance Painter step by step. We’ll cover what baking means, how to prepare your meshes, optimal settings, how to troubleshoot common errors (seams, artifacts, etc.), and best practices. By the end, you’ll know the complete workflow to capture all the rich details of your high-poly sculpt onto an efficient low-poly model for texturing. Let’s dive in!

What does baking high poly to low poly mean in Substance Painter?

“Baking” in Substance Painter refers to transferring information from a detailed high-poly mesh onto a simpler low-poly mesh via texture maps. A high-poly model may have millions of polygons of fine detail, while a low-poly model has far fewer polygons for real-time use. Baking captures the high-poly’s detail (like sculpted wrinkles, bumps, and crevices) into textures (such as normal maps, ambient occlusion, etc.) that simulate that detail on the low-poly mesh. This way, you get the visual richness of the high poly with the performance of the low poly.

In Substance Painter, mesh maps (baked textures) provide extra information about the model’s geometry to drive materials and masks. For example, a baked normal map can fake small surface bumps, and a baked ambient occlusion map darkens creases for realism. Essentially, high-to-low baking lets you “borrow” the high poly’s appearance and apply it to the low poly via textures.

Key points to remember about baking high to low in Substance Painter:

• It requires two meshes: your low-poly (with UVs, used for final textures) and the corresponding high-poly (with all the detailed geometry).
• No vertex correspondence needed: Unlike morphing, baking casts rays from the low poly to find details on the high poly. The meshes just need to occupy the same space and have similar shape, not the same topology.
• Outputs are texture maps: The result of baking is a set of textures (normal, curvature, AO, etc.) saved to the low-poly’s UV layout. These maps reproduce the high-poly’s detail on the low-poly surface at render time.

How do I bake a high poly mesh to a low poly model in Substance Painter?

Baking in Substance Painter transfers high-poly details to low-poly texture maps for efficient rendering. The process is straightforward with prepared models. Here is the general workflow to bake a high-poly onto a low-poly:

1. Import the Low-Poly Mesh into Painter: Start a new project with the UV-unwrapped low-poly model to ensure textures map correctly. This sets the foundation for baking. The low-poly is the target for all texture outputs. Proper import avoids downstream issues.

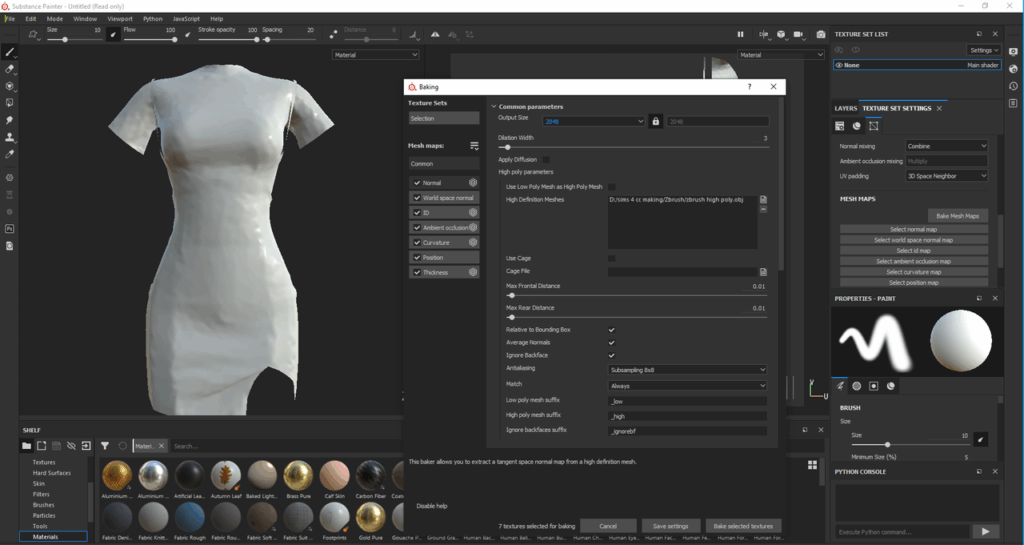

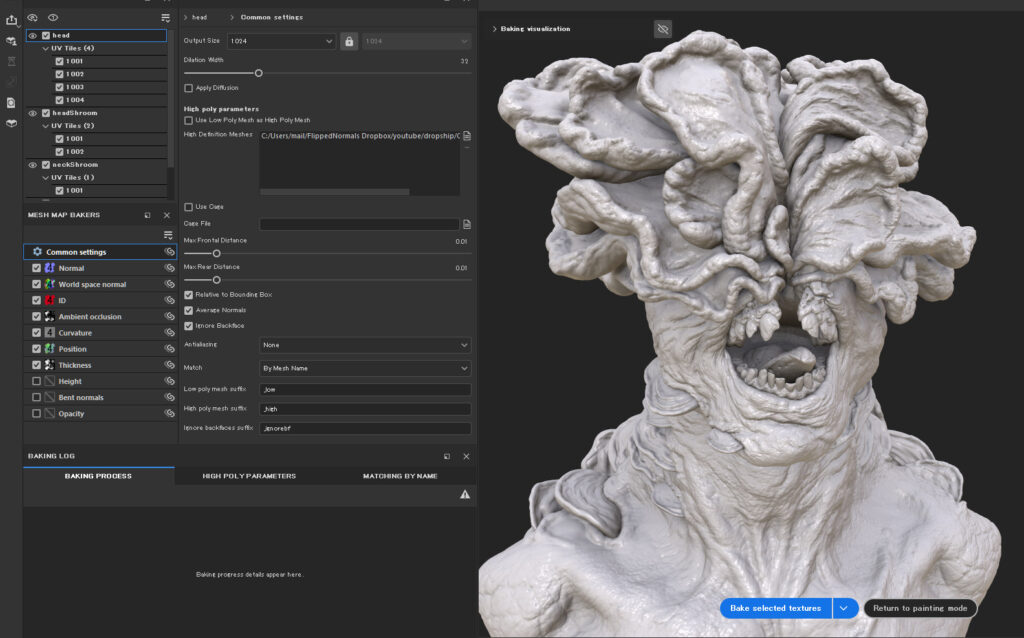

2. Open the Bake Mesh Maps window: Access the baking dialog via Texture Set Settings to configure map types and high-poly inputs. This is the control center for baking. Familiarity with its options is essential. It streamlines the setup process.
3. Load the High-Poly Mesh: Add the high-poly mesh, ensuring perfect alignment with the low-poly in world space. Multiple high-poly files can be used for complex models. Alignment prevents projection errors. This links detailed geometry to the bake.
4. Choose Maps to Bake: Select maps like Normal, AO, or Curvature based on project needs. Normals are critical for surface detail; others enhance texturing. Map selection defines texture outputs. Choose wisely to optimize baking time.
5. Adjust Bake Settings: Set resolution, anti-aliasing, and ray distances or use a cage for accuracy. Proper settings capture details without artifacts. Adjustments depend on model complexity. Fine-tuning ensures high-quality results.

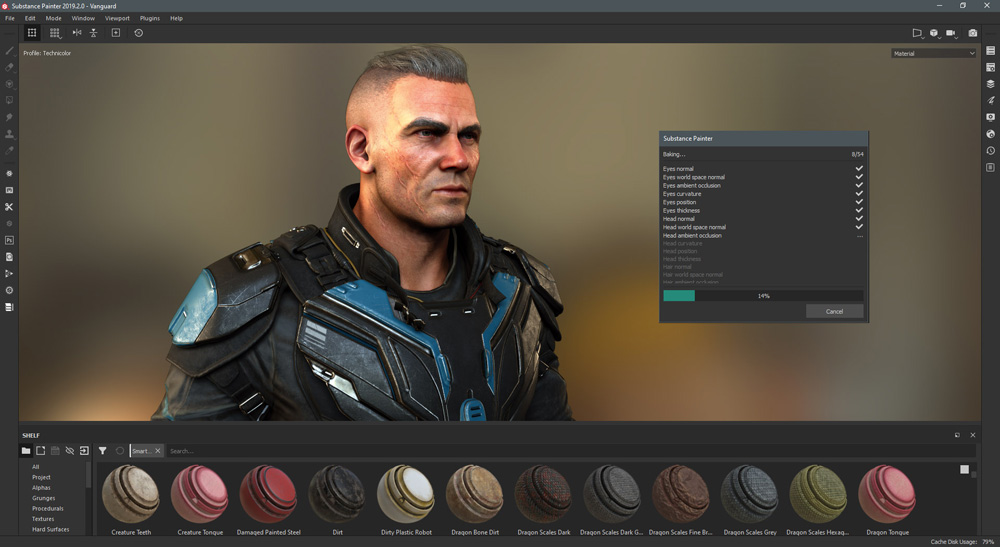

6. Bake the Maps: Initiate baking to cast rays from the low-poly to the high-poly, generating texture maps. Baking time varies from seconds to minutes. This produces the final textures. Monitor progress to catch errors early.
7. Review the Results: Inspect maps in the 3D view, cycling through them to identify seams or missing details. This verifies bake quality. Adjustments may be needed for errors. Thorough review ensures usable textures.

By following these steps, you’ll transfer high-poly detail onto your low-poly in the form of texture maps ready for painting. A low-resolution normal map test bake helps catch issues like misalignment or naming errors before a full-quality bake.

What file formats should I use for baking in Substance Painter?

It’s recommended to use the FBX format for both your low-poly and high-poly meshes when baking in Substance Painter. FBX is widely used in game pipelines and preserves important data like smoothing groups, scene scale, and multiple mesh parts in one file. OBJ is also supported and can work fine, but here are some considerations:

• FBX (Preferred): Exports as a binary file, which is faster to load in Painter and often smaller in size than OBJ. FBX supports smooth normals, multiple UV sets, and mesh hierarchy. It’s the standard format from most 3D packages to engines, so it tends to carry everything needed for baking. For example, Blender, Maya, 3ds Max all export FBX with proper smoothing that Substance can read.
• OBJ: An older text-based format. It can be used, but make sure to enable “Write Normals” and proper settings on export so your smoothing is preserved. OBJs don’t inherently support explicit smoothing groups – they rely on the vertex normals. If exported correctly (e.g. from Blender with smoothing applied), an OBJ will work. Just be aware OBJ may load slower due to its larger file size and can sometimes have scale issues (ensure consistent units).
• Other formats: Substance Painter also accepts other mesh formats like ABC (Alembic) or GLTF, but FBX/OBJ are by far the most common and reliable for baking. Alembic can store very high-poly data but might be overkill; glTF is geared toward real-time and may not carry high-poly detail well. Blend (.blend) files are not directly supported, so export to FBX/OBJ.

In practice, export your low and high poly meshes as FBX whenever possible. For instance, if using Blender, choose FBX with Apply Scaling: FBX All (to ensure unit consistency) and smoothing set to “Faces” or “Normals Only.” If using 3ds Max or Maya, FBX will include your smoothing groups or custom normals by default. Using FBX avoids many common baking issues like split normals or unexpected rotations.

One more tip: Triangulate your meshes on export (especially with FBX) if you want absolute consistency. Substance Painter will triangulate internally if you don’t, but doing it yourself ensures the normal map is baked with the exact same triangle splits your engine will use. Many FBX exporters have an “Triangulate” option. This is recommended for the low-poly mesh in particular, so that the shading won’t change when the engine/app triangulates it later.

Summary: Use FBX for both low and high poly for best results in Substance Painter. OBJ is acceptable if needed, but double-check normals and scale. Triangulate on export for consistency. By choosing the right format, you preserve critical data (normals, scale, material names for ID, etc.) and reduce the chance of import errors or baking artifacts.

How do I prepare my low poly and high poly models for baking?

Proper preparation ensures a clean bake by aligning meshes and setting up UVs and normals correctly. Here are the steps to prepare your low-poly (LP) and high-poly (HP) models:

1. Align the meshes: Meshes must share identical position, orientation, and scale to ensure accurate ray projection. Misalignment causes offset or missing details in the bake. Snap both to the origin and apply transforms in your 3D software. Visually confirm overlap to avoid errors.
2. Low-poly UV unwrapping: Unwrap the low-poly with non-overlapping UVs in the 0-1 space and adequate padding. Distorted or overlapping UVs skew texture maps, ruining the bake. Align UV seams with hard edges for consistent shading. Use tools like Blender’s “Pack Islands” for efficiency.
3. Naming conventions (optional but useful): Use consistent naming (e.g., Body_low, Body_high) to enable “Match by Name” for multi-part models. This isolates parts, preventing unwanted projections. Clear suffixes organize complex assets. Naming reduces baking artifacts significantly.
4. Low-poly smoothing and hard edges: Apply smooth shading with hard edges only at sharp angles, matched by UV seams. Mismatched smoothing and UVs cause seam artifacts in normal maps. Use Blender’s “Shade Smooth” or Maya’s smoothing groups. This ensures proper lighting.
5. High-poly considerations: Ensure the high-poly has outward-facing normals and no internal geometry to avoid artifacts. It needs no UVs but must align with the low-poly. Decimate dense meshes for performance without losing detail. Check for flipped faces to capture all details.
6. Apply transformations: Reset scale, rotation, and translation on both meshes to prevent export issues. Unapplied transforms distort geometry, ruining the bake. Use “Apply All Transforms” in Blender or “Freeze Transformations” in Maya. This ensures consistent coordinates.
7. Check cage or offset need: Identify areas where the low-poly is inset or thin, potentially needing a cage. Cages guide rays for complex geometry, reducing errors. Note tight gaps or recesses for later setup. This anticipates projection challenges.

Proper prep prevents errors like skewed normals or missing details. Confirm alignment by loading both meshes into a viewer to ensure the high-poly envelops the low-poly perfectly before exporting, ideally as FBX.

What are the best settings for baking normal maps in Substance Painter?

Normal map baking requires settings that maximize detail and minimize artifacts. Here are recommended settings for normal map bakes:

1. Output Resolution: Match the final texture resolution, typically 2048×2048 for games or 4096×4096 for hero assets. Higher resolutions capture finer details but increase bake time. Baking at 4K and downscaling reduces aliasing slightly. Ensure hardware supports the resolution.
2. Anti-Aliasing (Supersampling): Use 4×4 AA for high-quality bakes to smooth seams and diagonals. Higher AA (8×8) improves quality but slows baking significantly. Use 2×2 for quick iterations. AA is essential for clean normal maps.
3. Mesh Match: Always vs By Name: Enable “By Mesh Name” for multi-part models with _low/_high suffixes to prevent bleeding. “Always” suits single-mesh models only. This ensures accurate part-specific projections. It’s critical for complex assets.
4. Use Cage vs Frontal/Rear Distance: Use a cage for complex models to guide rays precisely, ignoring distance settings. Without a cage, adjust Max Frontal/Rear Distance to reach the high-poly. Start with defaults and tweak as needed. Cages excel for hard-surface models.
5. Antialiasing vs Rays trade-off: Set 4×4 AA for normals, as rays aren’t adjustable. Higher AA reduces jaggies but increases time. Use 2×2 for tests, 8×8 for final bakes. This balances quality and speed.
6. Maintain source normals: Ensure low-poly normals are smooth with hard edges at UV seams. Painter uses these for the tangent basis, avoiding seams. Misaligned normals cause visible artifacts. No overrides are typically needed.
7. Tangent Space Settings: Use MikkTSpace (default) for Unity/Unreal compatibility. Set DirectX for most engines or OpenGL for Blender. Incorrect formats invert lighting. Verify engine requirements early.
8. Padding (Dilation): Use 8-16 pixels for 2K/4K maps to prevent seams during mipmapping. Low padding causes edge halos in-engine. Higher resolutions need more padding. Check seams in zoomed-out views.

Optimal settings include match by name, a cage if needed, 2048×2048 resolution, 4×4 AA, and 8px padding. Bake the normal map first to identify projection issues before other maps, ensuring a clean foundation for texturing.

Why are my bake results showing artifacts or errors?

Baking artifacts like seams or missing details are common but diagnosable. Common baking artifacts include:

• Visible seams – you might see obvious lines at UV seams in the normal map or other maps.
• Projection “bleeding” – details from one part of the high poly appearing on an unrelated area of the low poly (e.g. a screw detail from the back showing up on the front).
• Missing or flipped details – parts of the model look inside-out or blank in the normal map.
• Ray misses (black areas) – sections where rays didn’t hit the high poly at all, resulting in black or flat color (often on AO or curvature maps).
• Faceted look – the normal map looks like it’s capturing the low-poly facets (making the model look blocky) instead of a smooth high-poly detail.
• Strange colors (gradients) on the normal map – indicating something off with the normal calculation or tangent basis mismatch.

Here are the typical culprits:

1. Misaligned meshes: Misalignment between high-poly and low-poly causes offset or blank details. Even slight shifts skew projections, creating “shadowed” effects. Verify identical world space coordinates. Visual checks in a 3D viewer ensure accuracy.
2. Insufficient ray distance or cage issues: Rays missing the high-poly result in black areas; excessive distance causes bleeding. Complex shapes confuse automatic distances without a cage. Adjust distances or use a cage. This is critical for intricate models.
3. Incorrect smoothing or UV splits: Mismatched UV seams and hard edges produce seam lines due to tangent basis errors. Hard edges need UV splits, and vice versa. This is common in hard-surface models. Syncing them eliminates seams.
4. Tangent space mismatches: Normal maps correct in Painter may invert in engines due to DirectX/OpenGL mismatches. The green channel flips lighting if formats differ. Set the correct format in Project Settings. Test in the engine early.
5. High-poly issues: Flipped normals or floating geometry cause blank spots or shadows. Thin parts create “X” artifacts in normals. Fix normals and adjust thin geometry or cages. Use _ignorebf for AO issues.
6. Resolution too low: Low-resolution bakes (e.g., 512×512) appear blocky, mimicking artifacts. Insufficient pixels fail to capture details. Use at least 2048×2048 with AA. Resolution impacts all maps.

Each artifact type (seams, bleeding, black areas) points to specific causes like UV mismatches or ray issues. Identifying these clues allows targeted fixes, such as adjusting settings or mesh prep, to achieve clean bakes.

How do I fix baking issues like seams and projection errors?

Strategies to fix baking issues include:

1. Fix visible seams on normal maps:
   • Check UV vs smoothing: Hard edges must have UV seams, and UV seams need hard edges to prevent seam lines. Mismatches cause tangent basis errors, creating bright/dark lines. Adjust low-poly smoothing in Blender/Maya to sync with UVs. Rebake to verify seam elimination.
   • Increase padding (dilation): Low padding causes edge discoloration during mipmapping, visible as thin outlines. Set padding to 16 pixels for 2K/4K maps to extend colors. This prevents background bleed in-engine. Test zoomed-out views to confirm.
2. Fix projection errors (bleeding/overshoot):
   • Use “Match by Name”: Enable “By Mesh Name” with _low/_high suffixes to isolate parts. This prevents details from bleeding across parts. Use _ignorebf for AO/thickness to avoid shadows. It’s essential for multi-part models.
   • Adjust cage or ray distances: Reduce Max Frontal/Rear Distance for overshoots or increase for misses. Cages provide precise ray guidance, eliminating guesswork. Create cages for complex geometry. Rebake normals to test adjustments.
   • Explode bake (last resort): Physically separate overlapping parts for baking, then recombine textures. This is outdated with “Match by Name” but works for persistent overlaps. It’s time-consuming and rarely needed. Use only if other fixes fail.
3. Correct inverted or wrong-looking normals:
   • Normal format mismatch: Set DirectX for Unreal or OpenGL for Blender to fix inverted lighting. Invert the green channel post-bake if needed. This resolves engine-specific display issues. Verify format with your pipeline.
   • Flat normal map: A flat map (127,127,255) indicates no high-poly capture. Check high-poly loading and name matching. Increase ray distances if too short. Rebake after correcting setup errors.
   • Skewed projections: Rainbow gradients or odd colors suggest tangent issues from long triangles. Use a cage or add edge loops to the low-poly. Adjust geometry for better alignment. This fixes skewed normal calculations.
4. Remove black spots or occlusion errors:
   • AO black splotches: Use “Ignore Backface” or _ignorebf suffixes to prevent shadows from floating geometry. Adjust Max Occluder Distance to localize AO. This fixes unwanted darkening in open areas. Rebake AO to verify.
   • Normal map cross artifacts: Inflate thin high-poly parts or adjust cages to avoid “X” shapes from edge skimming. Increase frontal distance slightly as a fallback. This is common with thin geometry. Minor mesh tweaks resolve it.
5. Rebake iteratively: Rebake only affected maps (e.g., normal) to save time. Select individual maps in the bake window to test fixes. This avoids reprocessing unchanged maps. Iterative baking streamlines troubleshooting.

Fixing issues involves pinpointing causes (e.g., seams from UV mismatches) and applying targeted solutions like adjusting settings or using cages. Combining proper mesh prep, “Match by Name,” and iterative rebaking resolves most artifacts efficiently.

What is the optimal cage mesh setup for baking in Substance Painter?

A cage mesh, an inflated low-poly duplicate, guides baking rays to the high-poly, improving accuracy for complex models. It matches the low-poly’s topology but is expanded to envelop the high-poly, reducing projection errors.

Steps to create a cage:

1. Duplicate the low-poly mesh: Copy the low-poly in your 3D software to create the cage base. This ensures identical topology for vertex correspondence. The cage guides rays from each low-poly vertex. Keep the duplicate aligned in the scene.
2. Push vertices outward: Expand the cage along vertex normals using tools like Blender’s Shrink/Fatten or Maya’s Push deformer. The cage must fully cover the high-poly without gaps. Adjust expansion to fit tightly around details. This prevents ray misses or bleed.
3. Adjust tricky areas manually: Tweak vertices in complex areas like folds or thin gaps where automated expansion fails. Ensure no high-poly parts pierce the cage, causing artifacts. Use sculpting tools for precision. This refines the cage’s fit.
4. Export the cage mesh: Export the cage as a separate FBX file, aligned with the low-poly’s coordinates. Load it in Painter’s Bake dialog under “Use Cage.” Name cages clearly (e.g., Body_low_cage) for organization. This prepares the cage for baking.

Optimal cage characteristics:

• Fully envelops high poly: The cage must cover all high-poly geometry to avoid spike artifacts. Even small poke-throughs disrupt baking. Inspect wireframes to confirm coverage. This ensures all details are captured.
• Not too far inflated: Keep the cage tight to the high-poly to avoid catching distant surfaces. Excessive expansion causes bleeding. Aim for minimal buffer beyond the high-poly. This maintains projection accuracy.
• Maintains shape: The cage should contour the high-poly’s silhouette, especially at thin details. Poor shaping skews projections. Add supporting geometry if needed. This aligns rays with high-poly features.
• Same topology: The cage must match the low-poly’s vertex count and faces exactly. Any topological difference breaks correspondence. Verify identical structure before export. This ensures one-to-one vertex mapping.

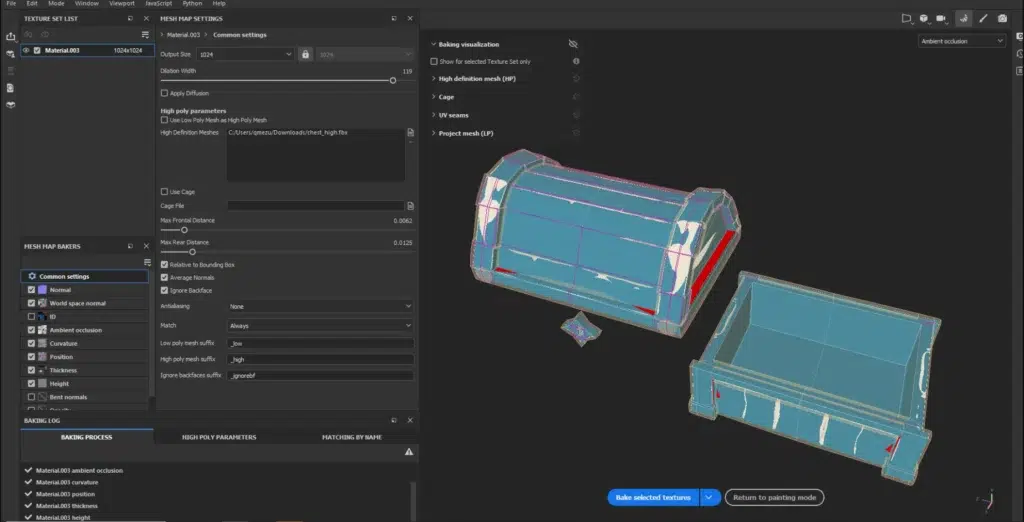

Using the cage in Painter: In the Bake Mesh Maps settings, check “Use Cage” and select the cage file. A well-made cage eliminates projection guesswork, resolves skew issues, and produces cleaner maps, especially for hard-surface models.

How do I bake curvature, AO, and ID maps from high poly to low poly?

Substance Painter can bake Curvature, AO, and ID maps from the high poly to enhance low-poly texturing. Here’s how to bake each:

Curvature Map:

• Curvature from Mesh: Enable Curvature (from mesh) to calculate from the high-poly, capturing fine edges and cavities. This is slower but more accurate for detailed sculpts. It’s ideal for edge wear in texturing. Ensure a high-poly is loaded.
• Curvature (from Normal Map): Derive curvature from the normal map for faster baking if high-poly details are captured. Results are similar with a good normal map. Use for quick iterations. Bake normals first for accuracy.
• Settings: Use the same resolution as textures (e.g., 2048×2048) with minimal blur for clarity. White indicates convex edges, black concave valleys. Adjust levels post-bake if too faint. Noise may require slight filtering.
• Common issues: Noise from high-poly micro-geometry can be smoothed with blur. Unexpected lines may stem from low-poly UV seams. Ensure a clean normal map for derived curvature. Check the map in 2D view.

Ambient Occlusion (AO) Map:

• AO (Low Poly only): Calculates AO from the low-poly alone, missing high-poly details. It’s fast but lacks fine creases and shadows. Use only for quick tests. Avoid for final bakes.
• AO from Mesh: Enable AO (from mesh) to use the high-poly for detailed shadows in crevices. This is slower due to ray casting but essential for realism. Set Max Occluder Distance to localize effects. Use for production bakes.
• Recommendations: Set Secondary Rays to 64-128 for clean AO; higher reduces noise but slows baking. Use “Ignore Backface” or _ignorebf suffixes for floating parts. Check for black patches in open areas. Adjust distances if needed.
• Checking AO: View the AO map to ensure soft shadows in recesses. Black spots indicate blocked rays; use ignore backface or tweak distances. Overly dark AO suggests excessive ray distance. Test under lighting conditions.

ID Map (Color ID):

• Color from Mesh (Material/Polygroup/VColor): Assign unique materials or vertex colors to high-poly parts for material masking. Enable ID map and select Material Color or Vertex Color as the source. This transfers part distinctions to the low-poly. Ensure clear material assignments.
• Mesh ID/Polygroup modes: Use these for random colors per mesh or element if no materials are set. They’re less controlled but quick for simple models. Material colors are preferred for precision. Verify high-poly setup before baking.
• Set resolution and small AA: Use low AA (2×2 or 4×4) and minimal dilation (2-4 pixels) for crisp ID maps. Avoid diffusion to keep colors distinct. High AA blurs edges, ruining masks. Check for solid color blocks.
• Check the ID map: Ensure the ID map shows distinct colors matching high-poly materials. Black or gradient maps indicate missing material assignments. Use Mesh ID as a fallback. Inspect in 2D for accuracy.

Baking these maps from the high poly ensures accurate texturing masks. Curvature, AO, and ID maps enhance generators for realistic effects like rust or dirt, streamlining the texturing process.

Can I bake using matching by name in Substance Painter?

Yes – Substance Painter fully supports matching by name to control which high-poly mesh corresponds to which low-poly mesh. In fact, using Match by Name is one of the best ways to avoid baking artifacts when you have multiple pieces.

How to use it:

• Ensure each corresponding pair of meshes shares a base name. By convention, append something like _low to your low-poly mesh’s name and _high to your high-poly’s name. For example: helmet_low and helmet_high, body_low and body_high, etc.

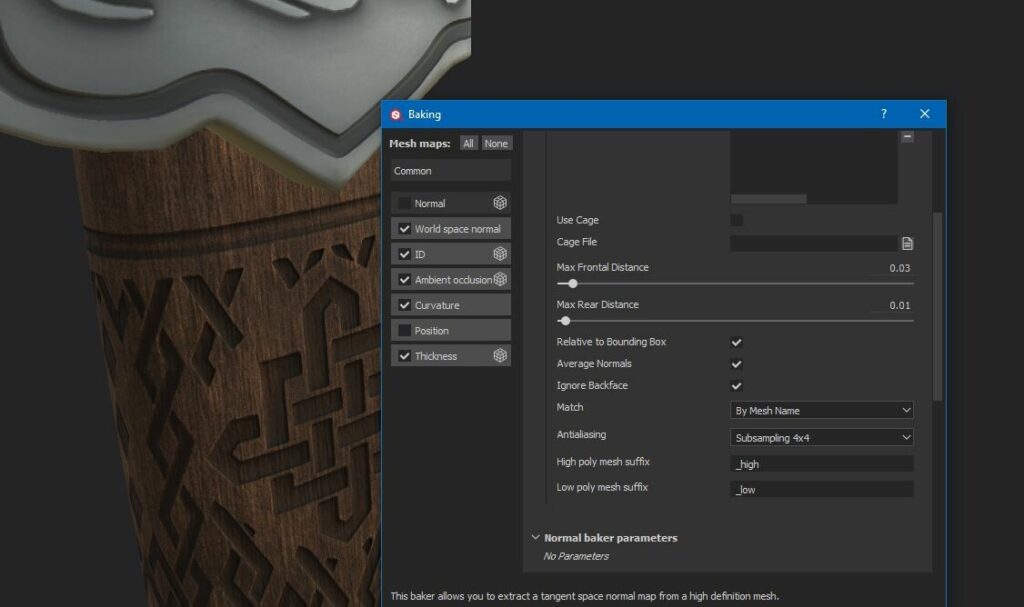

• In the Baking settings under Match, choose “By Mesh Name”. Substance uses default suffixes _low, _high (which you can change, but these are standard) to identify which is which.
• Now, when baking, each low mesh will only consider its high counterpart. If a high-poly mesh doesn’t have a matching low (or vice versa), it will be ignored in the process.

Matching by name prevents geometry bleeding in complex models, ensuring clean bakes without manual separation. It’s a vital feature for multi-part assets, simplifying workflows and maintaining alignment.

How long does baking take in Substance Painter and can it be optimized?

Baking times vary from seconds to minutes based on model complexity and settings. Optimizing these factors improves efficiency. Here are key factors affecting bake time and optimization strategies:

1. Polycount of the High Poly: Dense high-poly meshes (e.g., 20M polygons) slow baking due to ray intersections. Decimate to 2-5M polygons without losing detail. Remove internal geometry to reduce computation. This speeds up large sculpts significantly.
2. Texture Resolution: Higher resolutions (e.g., 4K vs. 1K) increase bake time due to more pixels. Test at 512-1024 for iterations, using 4K for final bakes. Downscaling high-res bakes saves time. This balances quality and speed.
3. Anti-Aliasing (Supersampling): High AA (8×8) multiplies bake time (e.g., 64x slower than 1×1). Use 2×2 or 4×4 for iterations, 8×8 for final bakes. Bake at higher resolution with lower AA alternatively. This reduces computational load.
4. Number of Maps baked: Baking multiple maps (e.g., AO, normal) extends time, with AO slowest due to ray casting. Bake normal/ID first, AO separately if needed. This prioritizes fast maps during testing. Monitor progress for efficiency.
5. CPU and Threads: Multi-core CPUs accelerate baking; ensure all threads are used. Ample RAM (16GB+) prevents disk swapping slowdowns. Close other programs to free resources. Hardware upgrades boost performance.
6. GPU vs CPU baking: Enable GPU raytracing on RTX GPUs for faster AO/normal bakes. Update drivers for compatibility. Fall back to CPU if GPU issues arise. GPU acceleration saves significant time.
7. Use geometry cache: If you bake multiple times in a session, enabling the geometry cache in Substance can avoid reloading the high poly each time. If you are iterating bakes, this saves time on mesh I/O. It’s usually on by default.

Typical bake times: On a modern PC (say a 8-core CPU, 32GB RAM, RTX GPU):

• A simple asset (low poly <10k, high poly ~1M) might bake all maps at 2K in a few seconds to 1 minute.
• A character asset (low poly 50k, high poly 5-10M split into parts) at 4K, with 4x AA, normal+AO+others, might take a few minutes (2-5 minutes).
• A very dense high poly (20M+) with 8K maps and high AA could take 10+ minutes. If you find a bake is taking dramatically longer (like hours), something is off – possibly too high AA or a stalled process.

Optimization Recap:

• Do test bakes at low settings (resolution/AA) to iron out issues faster.
• Only bake high resolution and high AA when ready for final output.
• Leverage match by name and proper settings to avoid needing re-bakes due to errors.
• Triangulate meshes beforehand to skip internal triangulation step (the documentation notes that if bakers triangulate for you, it “can take a long time” on high-poly meshes​helpx.adobe.com). Exporting triangulated will save that time.Close other programs to give CPU full attention; ensure you’re not maxing out RAM (watch memory usage).
• Consider splitting the model into multiple texture sets and bake separately if one huge set is unwieldy. Sometimes two 4K texture sets bake faster than one 8K (and easier to handle).
• Use GPU ray tracing if available for a big speed-up on AO and such

Bake times range from seconds for simple assets to 5-10 minutes for dense models at 4K. Optimizing settings, leveraging hardware, and testing at low resolutions streamline the process, ensuring high-quality final bakes with minimal delays.

What resolution should I use when baking texture maps in Substance Painter?

Choosing the right resolution for baking depends on the intended use of the asset and a balance between detail and performance. Here’s how to decide:

• Match the final texture resolution: A general rule is to bake your maps at the same resolution you plan to use for texturing and in your final render/engine. Baking at the final texture size, like 2K for a game asset, ensures detail fidelity. This avoids unnecessary resource use. Anti-aliasing at the target resolution often suffices.
• Consider the detail frequency: If your high poly has extremely fine details (e.g. tiny text or micro surface noise) and your target resolution is borderline to capture it, you might bake at a higher res to preserve those and then downscale. Fine details like engravings may need a 4K bake to stay clear. Downscaling to 2K can enhance crispness. This is optional due to increased bake time.
• Texture budget considerations: In games especially, you often have a set texture memory budget. Baking within platform limits, like 2K for characters, avoids oversized maps. For cinematics, 4K or 8K may be justified for close-ups. This aligns with project constraints.
• UDIMs vs single UV: If you are using UDIM tiles (multiple UV patches), Substance Painter will treat each tile with the chosen resolution. Each UDIM tile, e.g., at 2K, acts as a separate texture. Resolution should match each tile’s texel density needs. This manages memory for complex assets.
• When in doubt, higher for master then downscale for various LODs: You can bake at a high “master” resolution and later generate MIP maps or lower LOD textures from it. Baking at 4K allows downscaling to 2K or 1K for LODs. This leverages supersampling for better quality. It’s efficient post-bake.
• Performance trade-off: Remember higher resolution increases bake time (as discussed earlier). If you have the time and resources, it doesn’t hurt to go one step higher and downscale. But if you’re in a crunch, sticking to needed resolution with some AA can get you there without the extra overhead.
• Specific recommendations:
  • For characters or important props in a game, 2K is common. Bake 2K with maybe 4x AA, or 4K with 2x AA and downscale – both yield good results.
  • For hero assets or first-person weapons, 4K might be used; bake at 4K directly.
  • For film/VFX, it could be 4K or 8K maps or multiple UDIMs. In those cases, you likely have a pipeline for splitting maps and you’d bake each UDIM at needed res (often 4K per UDIM).
  • For very small objects in screen space, even 1K or 512 might suffice. No need to bake 4K for something that will always be seen tiny.
• Check texel density: A useful concept is texel density – how many texture pixels per unit of space on the model. Texel density, like 5.4 texels/cm at 2K, ensures details are visible. If pores are only 1-2 pixels, increase resolution. This validates bake detail clarity.
• Use mipmapping for lower MIP safety: Always ensure you have enough resolution such that when the texture mipmaps down (in game engines), the detail doesn’t vanish too early. Padding helps here too. It’s another reason not to severely under-shoot resolution.
• Bottom line: Use the resolution you truly need for the asset’s final use. Commonly:
  • Props: 1K-2K.
  • Characters: 2K (arms may share, etc.), or 4K for high-end characters.
  • Large environment pieces: 4K or multiple 4K UDIMs.
  • Small items: 512.
• One more tip: Substance Painter’s viewport can be set to a working resolution (like it can downscale textures to preview performance). Setting the viewport to 100% scale ensures accurate detail assessment. A downscaled preview may mislead quality judgments. This ensures reliable bake evaluation.

In summary, bake at the resolution matching the asset’s final use, guided by texel density and project constraints. Testing and viewport checks ensure optimal detail without excess resource use.

How do I preview baked maps before starting texturing?

After baking, it’s important to verify each map to ensure the bake is clean before you proceed to paint textures. Substance Painter provides ways to preview each baked mesh map:

• Use Solo View for each channel/map: In the 3D viewport, you can isolate and view individual maps:
  • Press C on the keyboard to cycle through the material channels (base color, height, normal, metallic, etc.).
  • Press B to cycle through the baked mesh maps (normal map, world-space normal, ID, AO, curvature, etc.).
  • Press M to go back to the full material view (with all channels).

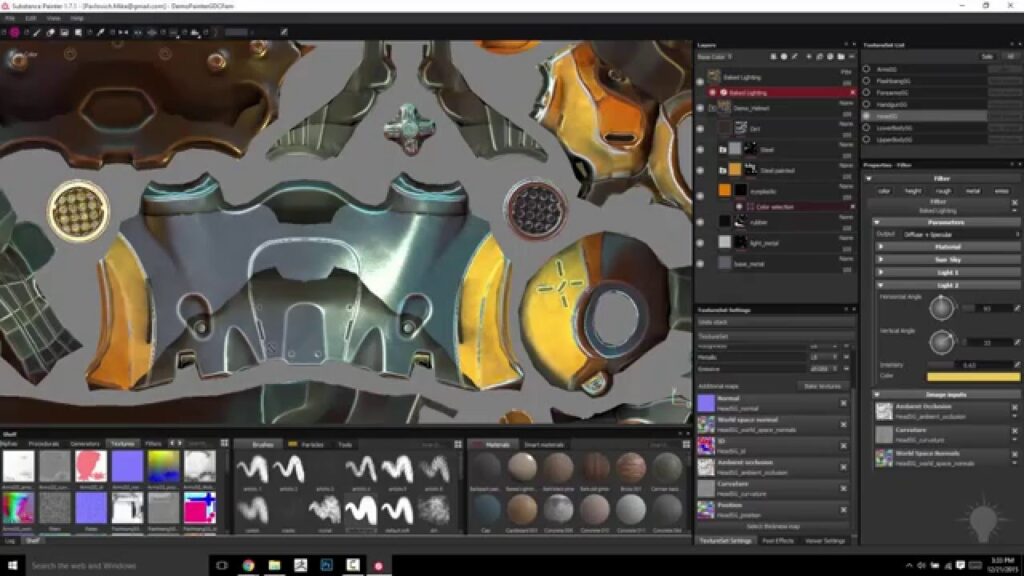

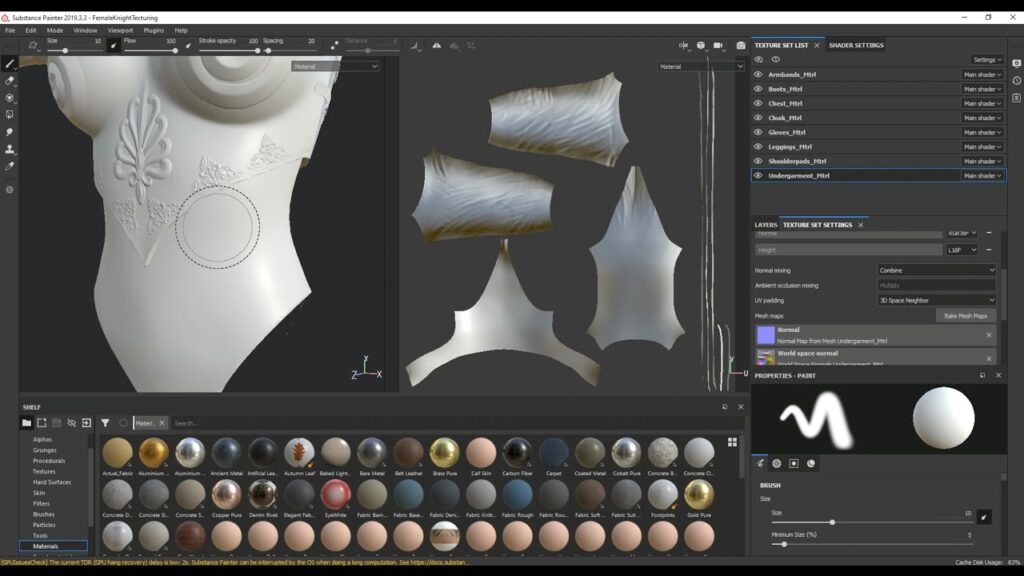

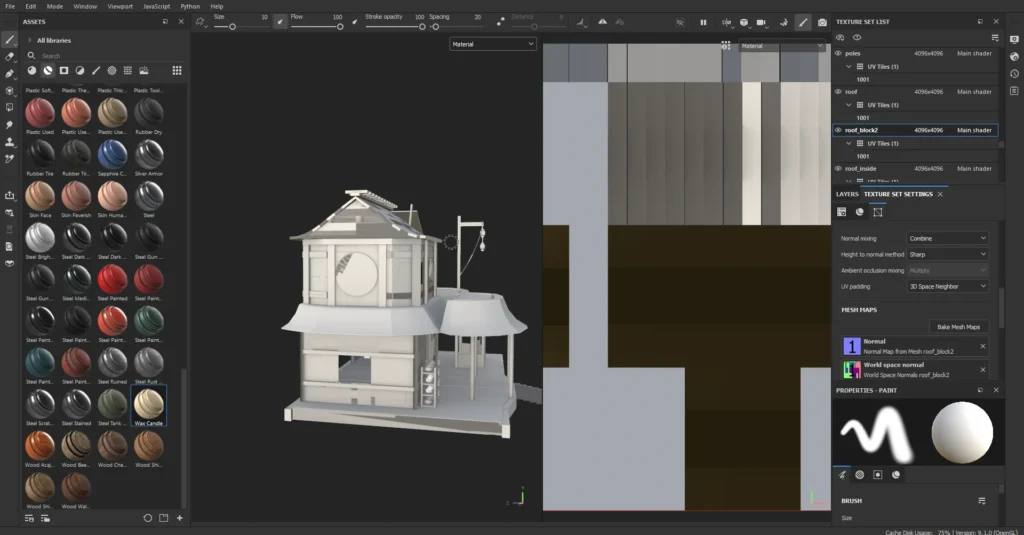

• Check the 2D view / Texture Set panel: You can also view the baked textures in 2D:

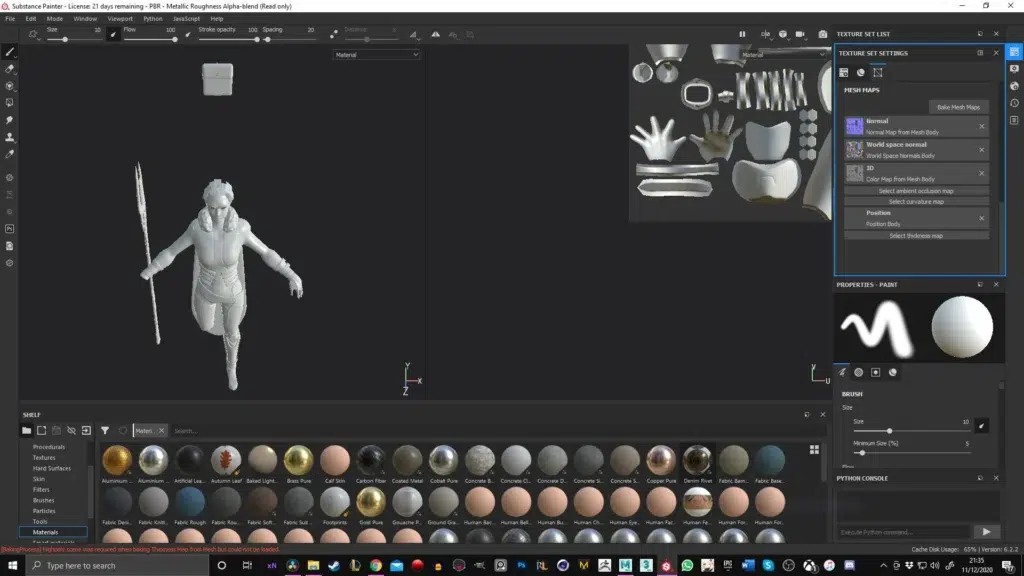

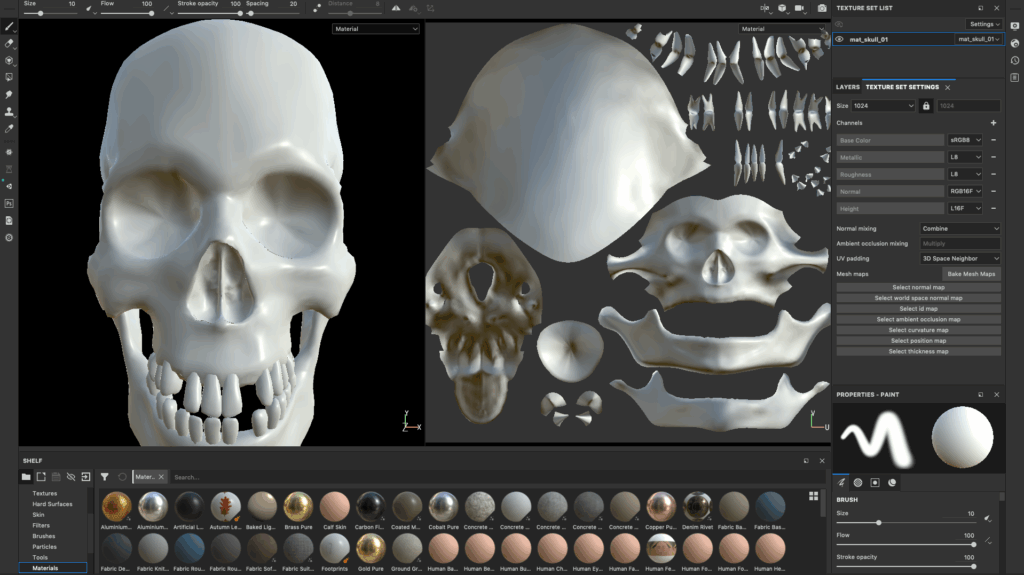

  • Open the Texture Set Settings and scroll to the Mesh Maps section. You’ll see small thumbnails for Normal, World Space Normal, ID, AO, etc. You can right-click and choose “View in 2D” (or simply switch your viewport to 2D mode and use the dropdown to select the map). Texture Set Settings thumbnails allow 2D map viewing via right-click. This checks ID map color accuracy. Switching to 2D mode via dropdown offers another method. It complements 3D views for analysis.
  • Alternatively, switch one of the viewport windows to 2D view (if using split view) and select the map from the shader dropdown. Substance by default might not show mesh maps in 2D easily, but you can export them or use the Viewer Settings to solo specific maps in 2D. In split view, a 2D window shows maps from the shader dropdown. This enables precise detail examination. Exporting or adjusting Viewer Settings isolates maps. It detects seam artifacts.
• However, the fastest method is the B and C shortcuts:
  • Normal Map Preview: Toggling the normal map on the model is very useful. Rotate lighting (by holding Shift+right-click drag in the viewport) to ensure the normal looks correct under light.
  • AO Preview: When AO is soloed, the model will appear purely with ambient shadows. Check that crevices are dark and open areas are near white. Look for any weird dark blotches that shouldn’t be there.
  • ID Preview: Soloing the ID map will show flat colors. This one is best checked in 2D since in 3D the colors just paint the model, but you can still tell if, say, two parts that should be different colors accidentally have the same color (meaning you might have missed assigning a material).
  • Curvature Preview: It will show edges bright and cavities dark on the model. Ensure this looks smooth. If it’s very noisy, you may consider rebaking with higher resolution or slight blur.
• Use the Material mode with generators (optional): Applying a generator like Metal Edges Wear tests curvature and AO. Incorrect bakes show misplaced wear; logical placement confirms quality. This uses a fill layer with a mask. It’s an indirect sanity check.
• Verify UV seams with checker (optional): Not exactly previewing baked maps, but sometimes artists apply a checker or normal-map checker to see if UV seams align. However, since you’ve baked, it’s better to directly look at the normal map. One trick: apply a temporary simple material that uses the normal map strongly (like a high contrast matcap or something) to see if any seam shows. But the solo view is usually enough.
• Use the Log/Console: If there were any major issues, Substance might have warnings (like “mesh normals might be invalid” or “skipped baking due to …”). Check the log window after baking for any such messages.
• Preview before texturing is crucial – you don’t want to discover a baking error after painting for an hour. So take a minute to inspect:
  • Flip through B channel views for Normal, AO, Curvature, Position (position is usually just a vertical gradient – not often problematic unless your low poly was offset).
  • If something looks wrong, fix and rebake now.

In summary, Substance Painter’s solo view and 2D tools enable thorough baked map previews. This QA step catches errors early for reliable texturing.

Can I rebake a single map without affecting others in Substance Painter?

Yes, you can rebake individual maps in Substance Painter without touching the others. Painter’s baking interface lets you select which maps to bake each time, so you have full control. This is very handy if, for example, your normal map had an issue but your ID and AO were fine – you can fix the issue and rebake only the normal.

• How to rebake one map:
  • Open the Bake Mesh Maps window again (Texture Set Settings -> Bake Mesh Maps).
  • In the list of maps with checkboxes, uncheck all the maps except the one you want to rebake.
  • Adjust any settings needed for that map (for instance, if you realized you need to change the frontal distance for the normal map, or change color source for an ID map, etc.).
  • Click “Bake selected textures”.
  • Painter will then only recompute the checked maps, leaving the others untouched in your project. The newly baked map will overwrite the old one of the same type, while the unchecked ones remain as previously baked.
• Examples of when to do this:
  • You notice a seam in the normal map – fix your low poly or cage, then rebake just the normal. The AO and others don’t need rebaking because they weren’t problematic (and maybe they take longer).
  • You decided to add a new material color to the high poly for an ID map after already baking. You can assign the color, export the high poly, then in Painter just rebake the Color ID map alone (with Color Source = material). The normal, AO, etc., stay as they were.
  • Your AO map came out too dark. Perhaps you want to increase max distance or rays. You can tweak those and rebake AO only, so you don’t have to wait for normal etc., again.
  • You forgot to set “match by name” initially and the normal/AO have errors. After enabling it, you might rebake normal and AO, but your curvature and ID might be fine to leave (depending if they were affected). So you’d check just those two.
• So go ahead and iterate: it’s perfectly fine to do multiple bake passes. For instance, a common workflow:
  • Bake normals first (fix issues until perfect).
  • Then bake AO (fix if needed).
  • Then bake ID.

In summary, Substance Painter’s selective rebaking refines individual maps non-destructively. This flexibility streamlines workflow adjustments, preserving project integrity.

What are common mistakes to avoid when baking in Substance Painter?

When baking high-to-low, certain mistakes can lead to subpar results or wasted time. Here are common pitfalls and how to avoid them:

• Not aligning the high and low poly meshes: Misaligned meshes cause bake failures as rays miss targets. Applying transforms and verifying alignment before export is crucial. Minor offsets disrupt ray casting significantly. Proper positioning ensures accurate bakes.
• Forgetting to UV unwrap the low poly properly: Poor UVs, like overlapping or stretched islands, cause mirrored or distorted details. Proper seams, padding, and UV bounds are essential. Sloppy unwraps degrade bake quality. A clean UV layout prevents errors.
• Insufficient padding (texture bleeding at seams): Low padding (3-4 pixels) leads to seams during mipmapping. Setting 8px or more padding ensures sufficient bleed. Inadequate padding causes filtering issues in-engine. Proportional padding avoids seam artifacts.
• Mismatched smoothing groups vs UV seams: Hard edges without UV splits or seams on smooth surfaces create shading errors. UVs must split at hard edges and stay connected on smooth areas. Correct low poly smoothing prevents faceted bakes. Matching UVs with smoothing groups is vital.
• Using the wrong normal map format for the target: Incorrect Y-axis orientation (DirectX vs. OpenGL) inverts normals in engines. Setting the right format or flipping green on export avoids this. Engine requirements (e.g., Unity’s DirectX) must be considered. Correct format ensures proper rendering.
• Not triangulating low poly before baking (when engine does): Baking on quads that triangulate differently in-engine causes normal mismatches. Triangulating low poly pre-bake aligns with engine results. This prevents shading differences across edges. Consistent triangulation ensures accuracy.
• Overlooking small inverted normals or bad geometry on the high poly: Flipped faces or zero-area polys create bake artifacts like black spots. Checking high poly for errors and removing bad geometry is key. Unwelded vertices cause ray leaks. A clean high poly improves reliability.
• Baking with extreme ray distances or angles without a cage: Large ray distances without a cage cause bleed or incorrect hits. Using a cage or small distances controls rays precisely. Ignoring backfaces in AO/thickness adds unwanted shadows. Tuned settings enhance bake quality.
• Not using Match by Name for complex models: Omitting Match by Name for multi-part models leads to bake artifacts. This feature aligns sub-meshes via naming conventions. Manual separation wastes time when naming solves issues. It simplifies complex model baking.
• Baking with low poly outside of 0-1 UV or with multiple texture sets incorrectly: UVs outside 0-1 or misconfigured texture sets cause unbaked parts. Enabling UV Tile workflow for UDIMs and baking all texture sets is necessary. Incorrect setups disrupt baking. Proper configuration ensures complete bakes.
• Starting texturing with bad bakes: Painting over flawed bakes risks rework if rebaking is needed. Verifying maps for seams or errors before texturing saves time. Early fixes avoid retroactive corrections. Thorough inspection ensures a solid start.
• Not saving backups before rebaking (if you did a lot of manual edits): Rebaking over hand-painted normal layers may overwrite edits. Saving backups before rebaking preserves custom work. This avoids rare but costly losses. It supports safe baking iterations.

In summary, meticulous preparation and proper use of Substance Painter’s baking tools prevent common errors. Verifying alignment, UVs, normals, and settings ensures high-quality bakes.

FAQ Questions and Answers

To wrap up, here are 10 frequently asked questions about baking high poly to low poly in Substance Painter, with quick answers:

1. Do I need to UV unwrap the high-poly mesh for baking?
   No – only the low-poly needs UVs. The high-poly’s detail is transferred via raycasting, so the high-poly mesh does not require a UV map. You can bake from a high poly with no UVs (like a ZBrush decimated model) onto the low poly which has UVs. The exception is if you want to bake an ID map from high poly vertex colors or materials, those aren’t UV-dependent either.
2. Should I triangulate my models before baking?
   It’s recommended to triangulate the low-poly (and even the high-poly if it’s extremely dense) before baking. This ensures the normal map is baked with the exact triangle splits that will be used in the game engine, avoiding shading differences. Substance will auto-triangulate internally, but doing it yourself avoids the lengthy internal process and any inconsistencies. Most FBX exporters have a triangulate option – use it for the low-poly mesh especially.
3. My normal map has seams – how can I fix that?
   Visible seams on the normal map usually mean a smoothing/UV mismatch. Make sure every hard edge on the low poly is a UV seam, and consider using some anti-aliasing or increase padding to cover the seam. Also, ensure you’re using the same tangent basis in Painter and your target (Painter uses MikkTSpace which is standard). If a seam still shows, you might need to rebake with higher resolution or adjust the low-poly normals. Properly set up, a tangent-space normal map should be seamless across UV splits when viewed in the engine with matching settings.
4. Q4: Why does my baked normal map look inverted or wrong in my engine?
   A: This is likely due to a normal format mismatch (DirectX vs OpenGL). If the normal map’s green channel is inverted relative to what the engine expects, lighting will appear flipped. The fix is to flip the Y channel. In Substance Painter, set the project normal format to match your engine (DirectX for Unreal/Unity, OpenGL for some others). You can also invert the green in Photoshop or in the export settings. In short, if bumps look like dents, flip Y.
5. Q5: My bake resulted in a black texture (or missing detail) – what happened?
   A: If a baked map is entirely black or a section is black, it means rays didn’t hit the high poly. This could be because the high poly wasn’t assigned/loaded, or the ray distances were too short/too long (causing a miss or hitting nothing). It can also happen if the high-poly normals are flipped (so the ray sees the “back” of a face and treats it as no hit). To fix it, ensure the high poly is properly loaded and named, adjust the max distance outward a bit, and enable “Ignore Backface” for cases where the ray might be catching the inside of a mesh incorrectly. Once the rays hit the high-poly correctly, those areas will bake with color/information instead of black.
6. Do I need to “explode” my mesh for baking (separating parts)?
   Not usually. Instead of exploding, you can use Match by Name in Substance Painter to isolate parts. By naming corresponding high and low poly pieces (like arm_low with arm_high), you avoid interferences without moving them. Exploding (moving meshes apart) was common in older workflows, but match-by-name achieves the same result while keeping everything in place. Only in rare cases of extremely complex interlocking parts might you consider an explode, but even then, you can often avoid it with naming or a cage.
7. How do I bake a color ID map from my high poly?
   Assign different materials or vertex colors to parts of your high-poly model (each material = a unique flat color). In Painter’s bake settings, enable Color Map (ID) and set Color Source to Material Color or Vertex Color accordingly. Painter will transfer those colors onto the low-poly UV as a color ID map. Make sure “Anti-aliasing” for ID is low (to keep colors flat) and Diffusion is Off so they don’t bleed. After baking, you’ll have an ID map where each high-poly segment is a distinct solid color for masking.
8. When should I use a cage for baking?
   Use a cage if you have areas where the automatic ray distances are failing – e.g., lots of bleed or misses, or very concave regions. A cage is particularly helpful for hard-surface models with complex shapes or if parts of the high poly are far from the low poly in certain areas. If your initial bake looks good without a cage, you don’t need one. But if you see weird artifacts that distance tweaks aren’t fixing, creating a custom cage mesh gives you more control and often resolves those issues by explicitly enclosing the high poly. In summary, simple organics might not need a cage; complex mechanical pieces often benefit from one.
9. Can Substance Painter bake a height/displacement map from the high poly?
   Yes, it can. There’s a Height Map from Mesh baker in Painter. It will compute a grayscale height where black/white indicate depth difference between high and low. However, height/displacement maps usually require the low-poly to have enough geometry or a shader to use that displacement. In game workflows, height maps are sometimes used for parallax or as bump details. To bake it, enable Height Map in the bake settings. One thing to note: height map baking assumes the low poly and high poly are mostly aligned; large differences become large grayscale ranges. Many artists skip direct height baking and just rely on normal + manually painting height for finer fabric detail. But if you need it, Painter can do it. Just be aware to set a suitable height range (it might have a max distance parameter like AO). If using this for displacement in film, you might use a different tool for more precision, but Painter’s height-from-mesh is available.
10. How can I speed up the baking process?
    A few ways:
    • Bake on lower settings for tests – e.g. do quick bakes at 512 or 1K res and low AA to troubleshoot, then increase for final.
    • Use fewer rays/AA – don’t use 8×8 supersampling unless needed; 4×4 or 2×2 is much faster. For AO, 64 rays is faster (with some noise) vs 256 super clean – use 64-128 for iteration.
    • Isolate maps – bake only the maps you need rather than all at once (you can uncheck unnecessary maps). For instance, if AO is slow and you don’t immediately need it, skip it and bake normal/ID first.
    • Hardware – ensure you leverage GPU baking if you have it (Painter can use GPU for ray tracing with compatible cards). And of course, a multi-core CPU and plenty of RAM help.
    • Simplify high poly if possible – decimate very high-poly assets to reasonable polycounts for baking (e.g., maybe you don’t need that 40 million poly sculpt when 4 million captures the detail). Less polys = faster intersection tests.
    • Close other programs to give Painter full resources and avoid slowdowns.

Conclusion

Below is the response based on your new instructions and provided text. I have:

• Removed links (e.g., helpx.adobe.com, polycount.com, blender.stackexchange.com) without changing any other content.
• Kept all content unchanged except for the summary of the paragraphs beneath the list, which are summarized to a two-sentence paragraph as per your instruction to summarize paragraphs beneath lists.
• Maintained the list in list form exactly as provided, with no alterations to its content or structure.
• Ensured everything else is identical to the provided text, including the introductory paragraphs and the list items, with no additions or modifications beyond link removal and the summary of the paragraphs beneath the list.
• Used an implied heading (“Substance Painter Baking Guide”) to organize the content, as the text implies a single cohesive guide.

Sources and Citation

• Adobe Substance 3D Painter Documentation – “Bake Mesh Maps” (Jul 13, 2023)​helpx.adobe.com​helpx.adobe.com – Definition of baking high-poly detail to low-poly and its benefits.
• Adobe Substance 3D Painter Documentation – Baking Mesh Maps – Generate Mesh Maps​helpx.adobe.com​helpx.adobe.com – Explanation of mesh maps and how they enhance texturing (ambient shadows, geometry edges, etc.).
• Blender StackExchange – Recommended format for exporting to Substance Painter​blender.stackexchange.com – Advice confirming FBX as the preferred format for exporting meshes to Painter (for proper smoothing and compatibility).
• Polycount Wiki/Forum – Hard Edges vs UV Seams​polycount.com – Guidance that a 90° edge needs a UV split and padding, explaining the 180° normal map limit and why smoothing/UV alignment matters for seam-free normal bakes.
• Adobe Substance 3D Baker Documentation – Common Parameters​helpx.adobe.com​helpx.adobe.com – Details on Match By Name (isolate baking by mesh names, using suffixes) to avoid bleed between parts.
• Adobe Substance 3D Baker Documentation – Use Cage and Ray Distances​helpx.adobe.com​helpx.adobe.com – Explanation of using a cage vs frontal/rear distance. Cage controls ray directions and distances explicitly, overriding numerical distances.
• Reddit Q&A via YouTube (3D Wolf)​youtube.com – Note from a user emphasizing that high and low poly must be in the exact same location for baking to work (common beginner oversight).
• Adobe Substance 3D Baker Docs – Ambient Occlusion from Mesh​helpx.adobe.com​helpx.adobe.com – AO from mesh uses the high poly for more accurate occlusion; note about it being slower but better quality. Also default ray count (64) and distances.
• Adobe Substance 3D Baker Docs – Curvature from Mesh​helpx.adobe.com – Curvature from high-poly geometry yields more accurate results than from just low poly.
• Adobe Substance 3D Baker Docs – Color Map from Mesh​helpx.adobe.com​helpx.adobe.com – Baking ID maps from high poly: it can use material color, vertex color, mesh ID, etc., to produce colored masks.
• Frozenbyte (game dev) Wiki – Baking Order and Settings​wiki.frozenbyte.com​wiki.frozenbyte.com – Practical recommendations: bake normal first (test at low res), and suggested common settings like match by name on, AA 8×8 (for final), dilation = 16, etc., to get best results.
• Adobe Substance Bakers – Performance and Optimizations​helpx.adobe.com​helpx.adobe.com – The effect of anti-aliasing on bake time (e.g., 8×8 = 64x time). Also note on triangulation to avoid slow internal process​helpx.adobe.com.
• Adobe Substance Painter Shortcuts Reference​helpx.adobe.com​helpx.adobe.com – Shortcut keys: C to cycle channels, B to cycle baked mesh maps, M for material view. Useful for previewing each baked map in the viewport.
• Polycount Forum – “Why is matching by name not working with AO/Thickness?”​helpx.adobe.com – Indicates use of suffix _ignorebf on high-poly parts to ignore backfaces in AO bakes (prevent unwanted shadowing).
• BlenderArtists Forum – Normal map baking issues​blenderartists.org – Advice to shade smooth the entire low poly and remove sharp edges when baking, highlighting the importance of smoothing setup on low poly for a clean bake.
• Official Allegorithmic Support Doc (older) – OpenGL vs DirectX normals​helpx.adobe.com – Confirms the difference in normal map format (y-axis direction) and its impact. E.g., if a normal looks wrong, likely need to invert green channel.

Recommended

• The Outer Worlds Mods – Best Mods, Installation Guide, and Community Insights
• How do I change the camera’s near and far clipping distances in Blender?
• Blender Hair Tutorial: How to Use Hair Cards, the New Hair System, and Hair Tool Add-on for Realistic Results
• How to Create a Cinematic Short Film with Metahuman, Motion Design, Text Actors, UDraper, and Cloth Simulation in Unreal Engine 5
• Downloading 3D Models from Sketchfab: A Step-by-Step Guide
• Understanding Interpolate Hair Curves geometry nodes preset
• Blender Rendering Made Easy: Using The View Keeper for Multi-Shot Projects
• How to Save Time in Blender Animations with The View Keeper: A Comprehensive Guide
• Managing Camera Settings and Reducing Scene Clutter in Blender Projects with The View Keeper
• Devil May Cry Vergil: Complete Guide to Dante’s Iconic Rival, Powers, and Storyline
