Custom Skyboxes with Blender: Create Equirectangular HDRIs, Fix Seams, and Export to Unity & Unreal

Custom skyboxes and HDRIs built in Blender Foundation workflows can be generated procedurally, rendered as a 360° equirectangular panorama, converted to cubemaps, and then deployed for real‑time rendering and lighting in game engines like Unity Technologies and Epic Games. Correct projection, resolution choices, seam management, and colour management are the difference between a “good enough” skybox and one that holds up under exposure changes, reflections, and HDR lighting.

What is a skybox and how does it work in games and 3D scenes

A skybox is a background technique used to make a 3D level feel vastly larger by enclosing the scene in a cube (or a sphere/dome) textured with distant scenery such as sky, clouds, mountains, or city skylines. Because the skybox is treated as infinitely far away (often moving with the camera so it shows no parallax), it creates the illusion of distance at minimal performance cost.

In many pipelines, the “skybox texture” is stored as either:

• six square images (a cubemap) mapped to the faces of a cube, or
• one 2:1 equirectangular panoramic image mapped to a sphere/dome.

Cube mapping is the underlying method that stores an environment on the six faces of a cube; cubemaps can be generated by rendering the environment six times from a single viewpoint with 90° views aligned to the axes.

Skybox vs HDRI in Blender: what’s the difference

“Skybox” is primarily about what is drawn behind the scene (background/visual context). “HDRI” (high dynamic range image) is about lighting fidelity: an HDR environment map stores a wide range of luminance values so the environment can drive believable reflections and ambient lighting rather than acting as a flat backdrop.

In Blender workflows, HDRI lighting is typically done in the World shader using an Environment Texture node (rather than a regular Image Texture node) to ensure correct environment mapping (equirectangular/lat‑long or mirror ball).

A practical mental model:

• Skybox: “what the player sees around the horizon and above.”
• HDRI: “what the engine samples to light the scene and generate reflections.”
  Often, the same panoramic image can serve both roles, but the “best” file format, compression, and exposure handling will differ depending on whether it’s used for lighting, background visuals, or both.

How to create a custom skybox in Blender using Sky Texture

Blender’s Sky Texture node generates a procedural sky and is documented as a Cycles‑only node in the Blender manual.

A stable, engine‑friendly approach is to build the sky in the World shader:

1. Switch the Shader Editor context to World (so the node tree affects the scene environment).
2. Use a Sky Texture node feeding a Background node, then into World Output.
3. Choose the sky model and tune physical-ish parameters (sun direction/elevation, turbidity, ground albedo) to match the target time of day and atmosphere. The manual documents sky models and parameters such as turbidity and ground albedo.
4. Control overall intensity with Background Strength (or equivalent exposure controls), separating “look” from “brightness” so the render is easier to export and tone-map later.

When the Sky Texture’s Vector input is left unconnected, Blender uses generated coordinates by default (per the manual), which is generally appropriate for world-space sky generation and avoids UV authoring.

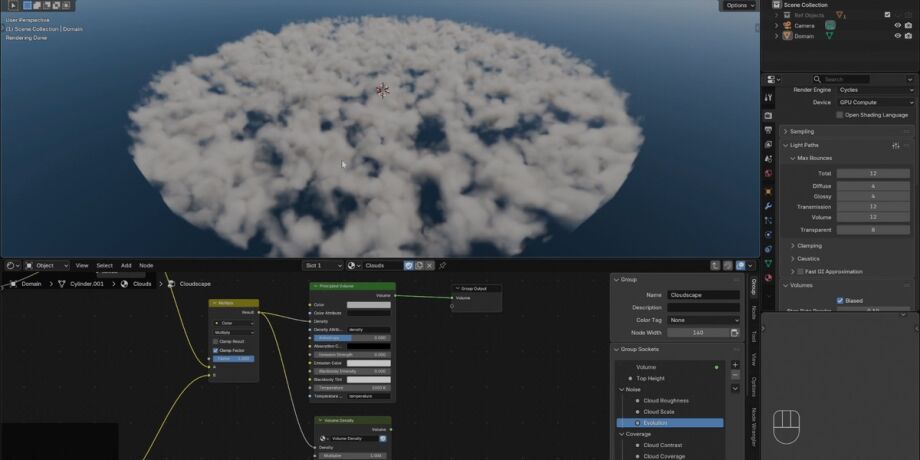

How to make procedural clouds for skyboxes in Blender (volumetric cloud shader workflow)

Procedural cloud layers for skyboxes are commonly built using volumetric shaders (e.g., Principled Volume or Volume Scatter/Absorption components) driven by 3D noise, so cloud density exists in volume rather than on a flat 2D image. Blender’s manuals describe Principled Volume as a combined volume shading node and Volume Scatter as the component that scatters light through a volume (typical for fog).

A production-minded cloud workflow for skybox rendering:

• Create a large “cloud container” mesh (often a sphere shell or a thick dome) surrounding the camera, then assign a volume material to that object. This avoids relying on a World volume for clouds; Blender’s documentation notes that filling the entire world with a volume shader is a strong assumption and recommends using a volume object around the scene for fog/atmospheric effects.
• Build the cloud density from 3D procedural textures (noise/musgrave-style fractals) and remap them through thresholds/ramps to form clustered cloud shapes rather than uniform fog.
• Light the volume with the same sun direction implied by the sky model so shadows and silver lining behave consistently, and raise samples as needed because volumes are noise-prone in path tracing.

For seam resilience, prefer sampling procedural textures in 3D space (object/world/vector) rather than painting cloud detail directly into a 2D equirectangular image, because 2D lat‑long images inherently wrap at a seam while 3D fields are continuous around the camera.

How to render a 360 equirectangular skybox in Blender (Cycles panoramic camera)

Blender’s Cycles documentation describes a panoramic camera mode with an Equirectangular projection that renders a full 360° horizontally and 180° vertically.

A correct equirectangular render setup:

• Use Cycles as the render engine (the panoramic camera documentation referenced here is under Cycles).
• Set Camera type to Panoramic and Panorama type to Equirectangular.
• Expect viewport limitations: Cycles panoramic cameras are noted as not displaying correctly in non-rendered viewport modes (e.g., Solid); they “only work for the final render.”

For predictable alignment between a rendered environment map and Blender’s default environment texture mapping, Blender’s manual provides a specific camera rotation reference: set the camera rotation to (90, 0, -90) or point along +X to match the default environment texture mapping view alignment.

Best skybox resolution and aspect ratio for equirectangular panoramas (2:1 explained)

A full-sphere equirectangular panorama is typically 2:1 (twice as wide as it is high). This matches the idea that the image spans a full 360° east‑west but only 180° north‑south.

Resolution is a trade-off between clarity, file size, runtime memory, and target hardware. A practical set of starting points for real‑time skyboxes:

• 2048×1024: lightweight previews, mobile prototypes, or stylised skies with soft gradients.
• 4096×2048: common baseline for game skyboxes where the sky is visible but not scrutinised up close. Community guidance for 360 equirectangular rendering often cites 4096×2048 as a minimum for acceptable 360 output quality.
• 8192×4096: higher-end PC/console use when clouds/stars must remain crisp and reflection probes are sensitive to detail. Unreal documentation commonly works with power-of-two constraints in texture settings (e.g., max LOD sizes expressed as power-of-two values), making 8192 a meaningful upper bracket in many workflows.

Power-of-two dimensions also simplify mipmap generation in Unity: Unity’s manual notes that to automatically generate mipmaps, the original texture’s resolution should be a power-of-two value.
Unity additionally documents that NPOT textures can be used, but may be padded/scaled to the next power-of-two on some platforms, costing memory and load time; choosing power-of-two sizes (like 4096×2048) avoids that class of overhead.

A useful equivalence (inference based on pixel counts): a cubemap with face size N contains 6·N² pixels, while a 2:1 equirectangular image sized (2H×H) contains 2·H² pixels. Matching pixel counts gives H ≈ √3·N and width ≈ 3.46·N—so a 4096×2048 equirectangular is in the same pixel-count ballpark as a cubemap around ~1182×1182 per face, though quality differs due to projection and sampling.

How to avoid seams in skybox renders (equirectangular seam fixes)

Equirectangular images wrap horizontally: the left and right edges represent the same meridian, so any mismatch becomes a visible vertical seam when mapped as a sky.
In practice, seams come from one (or more) of three sources: content mismatch (painting/grade), sampling/filtering, or projection conversion.

High-reliability seam fixes:

• Rotate the seam away from the focal direction: if the seam lands behind the least-viewed area (often opposite the main composition), minor mismatches become harder to notice. Both Blender (via world mapping) and engines often allow sky rotation: Unity’s Cubemap skybox shader explicitly supports skybox rotation, which is useful for hiding seams behind level geometry.
• Edit with wrap-aware workflows: panorama tools recommend temporarily working on an image wider than 360° (a “wrap/overlap” copy), applying adjustments, then trimming back—because ordinary grading tools can break continuity at the stitched edge.
• Blend two offset renders (render seam-coverage passes): a Blender community workaround for visible stitch lines is rendering two equirectangular images with the camera rotated (e.g., 180° apart), then blending/offsetting to cover the seam region.
• Use engine-side edge seam mitigation for cubemaps: Unity’s cubemap import settings include a “Fixup Edge Seams” option designed as a workaround for filtering limitations that can create incorrect filtering between cubemap faces.

Also treat sampling as a first-class seam factor:

• If a seam appears only after conversion (e.g., cubemap → equirectangular or vice versa), the culprit can be interpolation and edge bleeding. Blender’s Environment Texture node documents multiple interpolation modes (Linear, Closest, Cubic), and using sharper/controlled interpolation during certain conversions can reduce edge contamination.

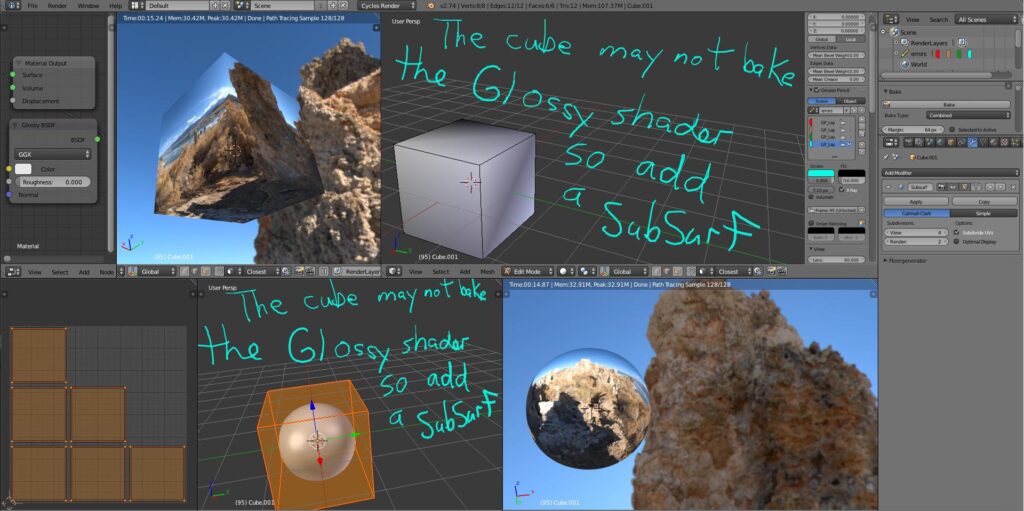

How to turn a Blender sky render into a cubemap skybox (cube faces vs equirectangular)

A cubemap stores the surrounding environment on six square textures corresponding to the faces of a cube. A standard method to generate a cubemap is to render the scene six times from a single viewpoint, each time using a 90° view aligned to a different axis.

Key practical differences:

• Equirectangular (lat‑long): one image, easy to paint/grade, but has pole distortion and uneven pixel density.
• Cubemap: better uniformity and often preferred by real-time renderers for sampling environments, but introduces face-edge seams that must be managed (or “fixed up”) during filtering.

Two dependable conversion paths from Blender output to a runtime cubemap:

• Engine importer conversion: Unity’s cubemap documentation describes support for multiple cubemap layouts, including LatLong (latitude-longitude/cylindrical), and Unity’s cubemap import settings explicitly support “Latitude Longitude (Cylindrical)” mapping. This allows importing a 2:1 panorama and generating a cubemap asset from it.
• Direct cube-face rendering in Blender: render six square images from a single position with a perspective camera at 90° FOV. This aligns with the general cube mapping generation method described in computer graphics references.

Orientation caveat (critical): the required face order and axis conventions vary by engine and shader (e.g., which direction is “+Z”), so the cubemap face naming and rotation should be verified in-engine with a labelled test pattern before committing to a large batch render.

How to export skyboxes from Blender as HDR, EXR, or PNG (which format to use)

Format selection should be driven by how the sky will be used:

• For lighting and reflections (HDR workflows)
  OpenEXR stores pixel data as 16-bit or 32-bit floating-point values (high dynamic range), which is specifically valuable when the environment must preserve bright sun cores, high-contrast skies, and physically meaningful intensity ranges.
  Radiance HDR (.hdr / RGBE) is another HDR format that encodes RGB with a shared exponent, enabling wide dynamic range in a compact representation.
• For background visuals only (LDR workflows)
  PNG is typically used when the skybox is purely visual and lighting is baked or handled separately, since PNG is an 8-bit (or sometimes 16-bit) LDR format relative to HDR float formats. Blender’s supported formats documentation differentiates float HDR formats (OpenEXR, Radiance HDR) from standard integer formats.

Engine-facing considerations:

• Unity’s skybox documentation recommends HDR textures to generate the best ambient lighting, which favours EXR/HDR sources for skyboxes intended to light the scene.
• Unreal workflows frequently depend on TextureCube assets for Sky Light “specified cubemap” usage; community guidance notes that importing as a TextureCube may require the source file to be .hdr (with non-.hdr formats sometimes importing as regular 2D textures).

Practical export guidance for Blender-based skyboxes:

• Export a master in EXR (ideally 16-bit half float for size efficiency, or 32-bit float if heavy grading is expected) and derive engine-specific deliverables from that master.
• Keep the sky HDR in a consistent colour pipeline; Blender’s Environment Texture node explicitly distinguishes colour vs non-colour data to avoid unwanted conversions.

How to batch render cubemap faces faster with The View Keeper (multiple camera views without scene clutter)

Cubemap workflows become bottlenecked by camera management: six cameras (or six duplicated rigs) are error-prone and clutter the scene hierarchy. The View Keeper is positioned as a camera management add-on that stores multiple camera angles (“records”) on a single camera and can automatically render multiple shots without duplicating cameras.

A cubemap batching approach using this capability:

• Create one camera at the intended cubemap centre and define six stored views, each rotated to face one cube direction (±X, ±Y, ±Z) with a 90° FOV. This aligns with the standard cube mapping generation concept of six axis-aligned renders.
• Name outputs consistently so the engine import step can reliably assign faces or detect layout automatically. Unity’s cubemap import tooling supports several layouts and an “Auto” mapping detection mode, but deterministic naming/layout still reduces mistakes.
• Render all stored views in one batch, keeping exposure and render settings identical across faces to prevent brightness seams.

Unity skybox setup from Blender HDRI (Texture Shape Cube and Skybox material)

Unity supports skyboxes via skybox shaders and cubemap textures. The core steps depend on whether the deliverable is (a) a generated cubemap asset or (b) a panoramic (lat‑long) 2D texture.

Cubemap path (Texture Shape = Cube)
Unity’s cubemap import settings document a “Mapping” option that can interpret a source texture as:

• 6 Frames Layout (cubic environment)
• Latitude Longitude (cylindrical / lat‑long)
• Mirrored Ball (sphere mapped)
  and includes an edge seam fix option.

Workflow:

1. Import the HDRI image into Unity.
2. In the texture’s Inspector, set Texture Shape/Type appropriate for cubemaps and choose Mapping: Latitude Longitude (Cylindrical) if the image is equirectangular.
3. If face-edge artefacts appear after conversion, try Fixup Edge Seams (Unity documents it as a workaround for cubemap filtering limitations).
4. Create a Material using the Skybox/Cubemap shader and assign the cubemap. Unity’s manual for the Cubemap skybox shader covers key parameters like rotation.
5. Assign the skybox material in Lighting/Environment settings so it drives background and (if configured) ambient/reflection sources.

Panoramic path (single 2D equirectangular texture)
Unity’s Panoramic skybox documentation specifies that a panoramic skybox uses latitude-longitude (cylindrical) mapping and notes that HDR textures generate the best ambient lighting.

For projects where a single texture is preferred (and cubemap conversion is unnecessary), the panoramic skybox shader can be used directly with the 2:1 equirectangular image.

Unreal Engine skybox workflow from Blender (HDRI import and sky sphere material setup)

Unreal commonly uses a Sky Light for environment lighting and supports a “Specified Cubemap” mode; Epic’s Sky Light documentation describes “SLS Specified Cubemap” as building sky lighting from the specified cubemap and exposes a Cubemap slot when that source type is used.

A robust workflow (lighting + visible sky):

• Import the panorama in an Unreal-friendly HDR format, then ensure it becomes (or is converted into) a TextureCube where required. Community guidance frequently notes that importing a texture as a TextureCube asset may require a .hdr file, otherwise it imports as a regular 2D texture.
• Create a Sky Light, set Source Type to SLS Specified Cubemap, and assign the TextureCube.
• For a visible background, map the HDRI onto a sky sphere mesh using an unlit material so it displays without being affected by scene lighting. Practical UE5 lighting guides commonly pair a Sky Light with a Sky Sphere using the HDRI as an emissive/unlit background, and also recommend controlling auto-exposure via a Post Process Volume to avoid “blown out” HDRI appearance.

Where rapid setup is needed, Unreal’s HDRI Backdrop feature is documented as a quick way to set up an HDR image projection with real-time lighting and shadowing (commonly used for product visualisation).

How to test skyboxes in Blender before exporting (quick viewport and lighting checks)

Fast validation in Blender should answer three questions: (1) does it wrap cleanly, (2) does it light properly, and (3) is it oriented correctly.

Testing approaches grounded in Blender documentation:

• Use the World shader with a Background and Environment Texture/Sky Texture setup; Blender’s World Environment documentation explains the world surface as background + environment lighting.
• For HDRI image-based lighting, use the Environment Texture node (not Image Texture) so equirectangular mapping is correct.
• When using the Cycles panoramic camera for a 360 render, remember it is not properly previewed in non-rendered viewport modes and should be validated with a low-resolution test render.

A practical seam/orientation test:

• Place a glossy sphere and a grey diffuse sphere at the origin. Correct HDR lighting should create plausible reflections and ambient fill that match the visible sky brightness relationships. This directly exercises the “image based lighting” role of environment textures described in Blender’s world documentation.
• Rotate the environment until the horizon/sun direction matches intended gameplay composition; the Cycles manual provides an explicit rotation reference for aligning an equirectangular panorama to default environment mapping.

How to create stylized hand-painted skyboxes and map them correctly (equirectangular painting tips)

Stylised skyboxes (hand-painted sunsets, anime skies, low-poly gradients) still need correct projection fundamentals:

• A full-sphere equirectangular image is a flattened representation of spherical latitude-longitude lines, which is why it is standard for spherical panoramas but introduces shape distortion (especially toward the poles).

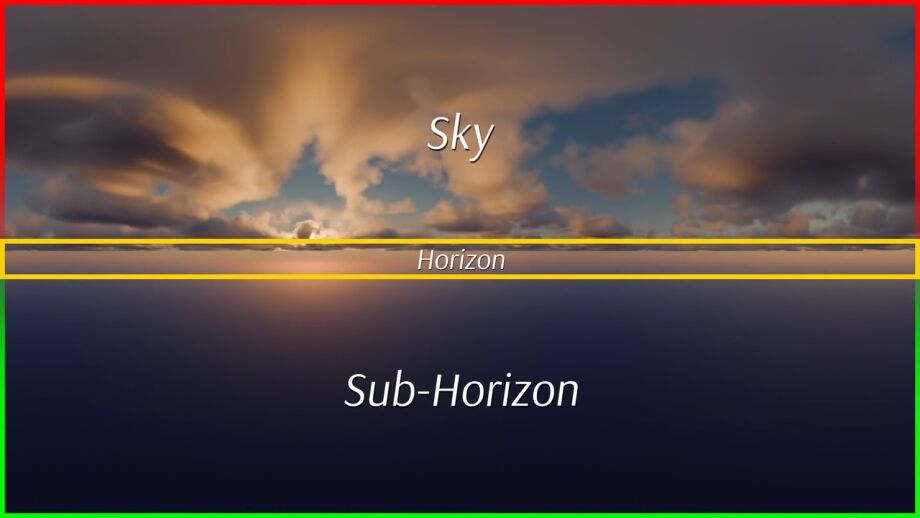

• Keeping the horizon near the equator line (mid-height) minimises visible distortion for most gameplay cameras, while heavy detail near the poles should be avoided or painted with stretching in mind.

Seam-aware painting in Blender:

• Blender documentation for Texture Paint tiling describes a setting that “wraps the stroke to the other side of the image” as the brush moves off the canvas, which is specifically useful for making seamless textures. This is directly applicable to the left/right wrap seam of equirectangular skies.
• Blender’s brush texture documentation describes Stencil mapping as ideal for projection/stamping workflows, which supports hand-painted clouds, stars, auroras, and gradient overlays while keeping scale consistent.

Frequently Asked Questions (FAQs)

1. What’s the difference between an equirectangular skybox and a cubemap skybox?
   Equirectangular skyboxes store the environment in one 2:1 latitude-longitude image, while cubemaps store it on six square faces and can be generated by six axis-aligned renders.
2. Why is 2:1 the standard aspect ratio for 360° equirectangular skies?
   A full sphere panorama spans 360° horizontally and 180° vertically, which corresponds to a 2×1 image for full coverage with square pixels.
3. Can Cycles panoramic equirectangular renders be previewed accurately in the viewport?
   Cycles panoramic cameras are documented as not displaying in non-rendered viewport modes (such as Solid) and only working for the final render, so validation should be via test renders.
4. What resolution is a good balance for game skyboxes?
   A common balance is 4096×2048 (2:1), which is power-of-two and aligns with Unity’s mipmap guidance while offering practical clarity; higher resolutions (8192×4096) are for high-end needs.
5. Why do seams appear even when the panorama is “perfectly” 2:1?
   The left and right edges represent the same longitude; any mismatch from editing, filtering, or conversion becomes a visible seam on wrap. Tools recommend wrap-aware editing workflows (e.g., temporary >360° width editing) to keep continuity.
6. How can cubemap face seams be reduced in Unity?
   Unity’s cubemap import settings include a “Fixup Edge Seams” option intended as a workaround for filtering limitations that can cause incorrect filtering between faces.
7. Should HDR skyboxes be exported as EXR or HDR?
   OpenEXR supports 16/32-bit float per channel and is widely used for HDR pipelines; Radiance HDR (.hdr / RGBE) is another HDR format with compact encoding. Engine compatibility may push toward .hdr for specific Unreal TextureCube import workflows.
8. How does Unity use HDR skyboxes for lighting?
   Unity’s skybox documentation states that HDR textures generate the best ambient lighting for skyboxes, supporting HDR-based environment lighting and reflections.
9. Why won’t an HDRI show up in Unreal’s “Specified Cubemap” slot?
   Epic documentation describes “SLS Specified Cubemap” as taking a cubemap asset; community guidance notes that importing as a TextureCube may require a .hdr file, while other formats may import as 2D textures unless converted.
10. What’s the fastest way to create six cubemap renders in Blender without adding six cameras?
    A camera management add-on such as The View Keeper is described as storing multiple camera angles on a single camera and automatically rendering multiple shots, which can be applied to the six cube directions.

Conclusion

Procedural skies and clouds created in Blender can be rendered as 360° equirectangular HDRIs using Cycles panoramic cameras, then exported in HDR-capable formats (EXR/HDR) for real-time skyboxes and environment lighting. Correct 2:1 projection, power-of-two resolution choices, seam-aware editing, and disciplined colour management (including modern view transforms like AgX and export dithering for LDR outputs) are the core requirements for skyboxes that remain stable across engines and lighting scenarios.

Sources and citation

• https://docs.blender.org/manual/en/latest/render/cycles/camera.html#panoramic
  Blender Documentation. “Cycles Panoramic Camera (Equirectangular, Viewport Limitations, Alignment).” Blender Manual, 2026.
• https://docs.blender.org/manual/en/latest/render/lights/world.html
  Blender Documentation. “World Environment and Image-Based Lighting with Environment Texture.” Blender Manual, 2026.
• https://docs.blender.org/manual/en/latest/render/shader_nodes/textures/sky.html
  Blender Documentation. “Sky Texture Node (Procedural Sky, Cycles Parameters).” Blender Manual, 2026.
• https://docs.blender.org/manual/en/latest/render/shader_nodes/textures/environment.html
  Blender Documentation. “Environment Texture Node (Equirectangular Mapping and Color Space).” Blender Manual, 2026.
• https://wiki.blender.org/wiki/Reference/Release_Notes/4.0/Color_Management
  Blender Foundation. “AgX Color Management and Filmic Deprecation.” Blender 4.0 Release Notes, 2026.
• https://en.wikipedia.org/wiki/Equirectangular_projection
  Wikipedia. “Equirectangular Projection (2:1 Full-Sphere Aspect Ratio).” 2026.
• https://www.openexr.com/en/latest/TechnicalIntroduction.html
  OpenEXR. “Technical Introduction to OpenEXR (HDR, 16/32-bit Float Storage).” 2026.
• https://en.wikipedia.org/wiki/RGBE_image_format
  Wikipedia. “Radiance HDR / RGBE Image Format.” 2026.
• https://docs.unity3d.com/Manual/class-Cubemap.html
  Unity Documentation. “Cubemap Import Settings (LatLong Mapping, Edge Seam Fixup).” Unity Manual, 2026.
• https://docs.unity3d.com/Manual/skybox-shaders.html
  Unity Documentation. “Skybox Shaders (Panoramic, Cubemap, HDR Lighting).” Unity Manual, 2026.
• https://docs.unity3d.com/Manual/ImportingTextures.html
  Unity Documentation. “Texture Import Settings (Mipmaps, Power-of-Two, NPOT Guidelines).” Unity Manual, 2026.
• https://docs.unrealengine.com/5.0/en-US/sky-light-in-unreal-engine/
  Epic Games. “Sky Light (SLS Specified Cubemap and Lighting Behavior).” Unreal Engine Documentation, 2026.
• https://docs.unrealengine.com/5.0/en-US/hdri-backdrop-in-unreal-engine/
  Epic Games. “HDRI Backdrop Feature Overview.” Unreal Engine Documentation, 2026.
• https://forums.unrealengine.com/t/import-hdri-cubemap-settings/
  Unreal Engine Community. “TextureCube (.hdr) Import Constraints and HDRI Lighting Setup Guidance.” 2026.

Recommended

• Battlefield 6 Takes Home Game of the Year at UKIE Video Game Awards 2026
• 28 Years Later: The Bone Temple Is Coming to Netflix on March 31, 2026 in the US: Release Date, Cast, Plot, and Streaming Details
• Helldivers 2: Comprehensive Guide to Gameplay, Features, Factions, and Strategies
• How to Modify MetaHuman: A Comprehensive Guide
• The Ultimate Guide to Hair for Games: Techniques, Tools, and Trends
• What Is Depth of Field in Blender, and How Do I Set It?
• What is the View Keeper?
• How to Create a 3D Environment Like Arcane: A Step-by-Step Guide
• Developers With Foreign Legal Entities May Be Allowed to Include Games in the Russian Software Registry: Requirements, VAT Benefits, and What Changes in 2026
• Battlefield 6’s New Patch 1.2.1.5 (March 3, 2026): Full Patch Notes, Crash Fixes, Spawn Updates & REDSEC Changes
