How to Use Decals and Stickers in Substance Painter: A Complete Guide for 3D Artists

What are decals and stickers in Substance Painter?

Decals and stickers in Substance Painter are textured images applied onto 3D surfaces to add isolated details without modifying the underlying mesh. Think of them as digital stickers: you “stamp” an image on a model to create small elements like logos, labels, bullet holes, or graffiti, enhancing realism without complex modeling. In Substance Painter, decals are typically materials with an alpha channel – meaning they contain transparency data for every texture channel (color, normal, etc.). Stickers refer to similar concepts, often implying simpler images (like a decal graphic) with transparency.

For example, adding a warning label on a machine or a coffee stain on a table can be done with decals instead of sculpting those details into the geometry. This not only saves modeling time but also keeps the polygon count low. Importantly, Substance 3D Painter provides dedicated tools to handle decals, so you can apply them flexibly and even remove or edit them later without altering the base texture.

Key points:

• Decals are images stamped on a mesh to simulate small details.
• They utilize alpha transparency to blend into the surface.
• Common uses include adding text, logos, damage marks, and surface wear quickly.
• They are often implemented as fill layers with a mask, which lets you adjust channels like color, roughness, height, etc., for the decal.

Using decals and stickers effectively means you can create game-ready textures with added realism (like worn stickers on a suitcase or signage on a wall) without needing a separate material for each decal in your game engine.

How do I apply decals in Substance Painter?

Applying a decal in Substance Painter can be done in a few straightforward steps. The most flexible workflow is using a fill layer with a mask and an alpha image (your decal). Here’s a step-by-step guide:

1. Add a Fill Layer: Create a new fill layer in your layer stack (this layer will hold the decal). In the layer’s properties, disable unwanted channels (e.g., if your decal is just a color graphic, you might disable height/metallic unless needed).
2. Add a Black Mask: Right-click the fill layer and choose “Add Black Mask.” This hides the entire fill layer initially.
3. Load Your Decal Alpha: Import or locate your decal image in the Assets (or Shelf) panel under Textures/Alphas. You can drag and drop your image directly into Substance Painter’s Assets window; when prompted, define it as a Texture (or Alpha).
4. Apply the Decal via Projection: There are two common methods:
   • Method A: Drag onto Base Color (Quick Stamp) – Drag the decal from the Assets and drop it onto the Base Color channel of your fill layer. Then switch to the 2D view, select the fill layer’s mask, and use the transform gizmo to position/scale it. Ensure UV wrap is set to None so the decal doesn’t tile.
   • Method B: Paint through Stencil – Alternatively, set your brush to Projection mode. In the Properties panel for the brush, click the “Material” drop-down and load your decal image as a stencil. Then paint the decal where you want it by left-clicking (use S + left-click drag to rotate the stencil, S + right-click drag to zoom it, S + middle-click to pan). This method is like projecting the decal onto the model, useful for precise control on complex surfaces.
5. Position and Scale: In either method, you can hold Shift while clicking and dragging in the 2D or 3D view to uniformly scale the decal. Use standard transform shortcuts:
   • Ctrl + left-click drag rotates the decal stamp (or rotates the brush in projection mode).
   • Ctrl + right-click drag changes brush size (projection scale).
   • Use 2D view for exact placement, especially if you have the UV layout open.
6. Tweak the Material: After placing the decal, adjust the fill layer’s properties. You can set the Base Color to your decal image (already done if you dragged it in) and tweak Roughness, Metallic, or Height to make the decal look like a painted-on graphic or a separate sticker. For example, give a sticker a slight height (bump) and distinct roughness to stand out from the surface.
7. Use an Anchor Point (Optional but Powerful): If your decal has transparency and you want to add effects like dirt or damage precisely to it, add an Anchor Point. Right-click your decal layer and choose Add Anchor Point. Then, in the decal’s mask, add a fill effect referencing that anchor with “Alpha: Extract Alpha” to correctly isolate the decal shape (this prevents transparent parts from being affected). This is useful for layering wear and tear just on the decal.
8. Refine Edges and Wear: To make the decal blend realistically, consider painting a subtle grunge or blur on the edges. For example, add a fill on the mask with a grunge texture and set it to Multiply blending, which can create a peeled or worn look on the decal edges.

By following these steps, you stamp any image onto your model as a decal. Substance Painter’s non-destructive layers mean you can move or modify this decal anytime by adjusting the mask or the fill settings. This workflow is ideal for game assets and film models alike, as it keeps your texture maps consolidated while adding detail.

Pro Tip: Use UV projection alignment when stamping decals. In your brush settings (when using alpha stamps), set Alignment to UV if you want the decal to adhere directly to UV space, or Tangent for wrapping on curved surfaces. UV alignment is best for precise placement without stretching.

How do I import custom stickers into Substance Painter?

Importing your own sticker or decal images into Substance Painter is simple. You can import images like PNGs, JPEGs, or even SVGs as textures/alphas. Here’s how:

• Drag and Drop: Substance Painter allows drag-and-drop import. Simply drag your image file from your computer and drop it into the Assets panel (the section previously called “Shelf”). When you drop the file, an Import Resources dialog will appear:
  • Select Import Type: Choose to import into the current project, into the shelf (library), or as a session asset. For a one-time use, project import is fine. For reuse across projects, import to the shelf.
  • Set Resource Type: Substance might auto-detect the file type, but ensure it’s correctly set. For decal images used in Base Color, choose Texture. If you plan to stamp it via brush alphas, you could select Alpha.
  • Choose Path (Shelf Location): If adding to shelf/library, pick a custom folder (e.g., create a “My Decals” category) for organization.
• Using the Image: Once imported, your image will appear in the Assets under the category you specified (e.g., Textures or Alphas). You can then drag it onto a fill layer or use it as a brush stencil/alpha as described in the previous section.

Alternatively, Import via Menu:

1. Go to File > Import Resources.
2. In the dialog, click Add Resources, select your image file.
3. Set the resource type and import options similarly.
4. Click Import and if adding to shelf, assign it to a shelf library folder.

Substance Painter also supports SVG files. Dropping an SVG into the 3D view automatically creates a new fill layer with warp projection enabled and converts the SVG to a stampable graphic. This can be a powerful way to import vector logos and scale them losslessly inside Painter.

Remember: Use PNGs with transparency for decals (more on that next) and ensure your images have sufficient resolution. A 512×512 image may look pixelated if applied large on a 4K texture, so consider higher resolutions like 2K for important decals. Substance will mipmap and downscale as needed, but starting with quality sources is key.

Once imported, your custom stickers are ready to be used exactly like built-in alphas or textures.

Can you use PNG images as decals in Substance Painter?

Yes, PNG images are ideal for decals in Substance Painter, especially because PNG supports transparency (alpha channel). In fact, using PNG (or TGA) with an embedded alpha is the most common way to bring in decal graphics like logos, signs, or stickers.

Why PNG? A decal needs transparency around the design (unless it’s a full-frame image). For example, if you have a circular logo, you want only the circle to show and everything else to be invisible. PNG preserves this alpha channel, so when imported into Painter, the transparent areas remain transparent. When you apply such an image as a decal:

• If you use it on a fill layer’s Base Color, anything outside the decal’s opaque pixels won’t affect the model.
• If you use it as a brush alpha, the brush will only paint the shape of the decal.

How to use PNG decals effectively:

• Ensure Proper Alpha: Prepare your image in Photoshop or GIMP by removing the background so only the decal graphic is visible. Save it as PNG with alpha.
• Import as Texture/Alpha: Drag it into Painter, define it as a Texture (for fill layer usage) or Alpha (for stamping).
• Alpha Settings: When applying via a fill layer mask, you might need to tell Substance how to use the alpha. Using “Alpha: Preserve Alpha” or “Alpha: Extract Alpha” in the fill’s grayscale settings can ensure the decal’s dark edges don’t appear if your alpha is inverted. For instance, Extract Alpha treats the PNG’s transparency correctly so that black or dark pixels in your image don’t inadvertently become transparent.
• No Background “Halo”: PNGs can sometimes have semi-transparent edge pixels (antialiasing). If you notice a faint border, you can fix this by:
  • Setting Alpha Premultiplied if Painter gives the option, or
  • Using a slight levels adjustment on the mask to tighten the alpha.

Common Question: “Can I use JPEGs?” You could, but JPEG has no alpha channel. You’d have to import a separate black-and-white mask for transparency which is extra work. PNG (or TGA/TIF) is simpler since one file carries both color and transparency.

In summary, PNG images work great as decals. They maintain image quality and transparency, making decal application in Substance Painter straightforward. Just drop in your PNG and start stamping.

How do I position and scale decals accurately in Substance Painter?

Positioning and scaling decals accurately is crucial for a polished result. Substance Painter provides tools in both 2D (UV) view and 3D view to place decals with precision:

• Use 2D View for UV Precision: In the 2D view (UV layout), you can see exactly where the decal lies on the texture space. This is useful for exact placement relative to other texture details. After placing a decal (using a fill layer with mask or projection stencil):
  • Switch to 2D view (press F3 or the UV button).
  • Select the Transform tool for the fill or mask that has the decal.
  • You’ll see a gizmo or bounding box around the decal in the UV space. Drag to move it; use corner handles to scale uniformly.
  • Hold Shift while scaling in 2D view to maintain aspect ratio. This prevents warping the decal.
• 3D View Widget: In 3D view, if you use the projection stencil method, you won’t see a transform gizmo but rather use the S + mouse controls (as mentioned earlier) for placement. Another approach:
  • Apply decal via drag-and-drop to fill layer (as in the earlier method A).
  • In 3D view, with the fill layer’s mask selected, press F to get the 3D manipulator. This allows moving/rotating/scaling the projection in 3D directly. However, this is generally similar to adjusting in 2D because decals use UV or planar projection.
• Brush Alignment and Size: If stamping manually (without a fill layer mask), check brush settings:
  • Set Alignment = UV to prevent the decal from stretching across UV seams.
  • Use Angle or Rotation settings to precisely set a rotation (or hold Ctrl while stamping for free rotate).
  • For exact scaling, you can type a brush size in pixels if you know the desired decal size relative to texture resolution.
• Numeric Transform: In the Properties panel for a fill layer with a projection, you might see numeric inputs for offset, rotation, and scale (especially if using planar projection or the new warp projection grid). Here you can type exact values if needed (e.g., offset X=0.25, Y=0.5 to move the decal to a specific UV coordinate).
• Anchor Points (advanced positioning): If you use an anchor point with the decal and then reference it in the mask, the decal’s own transform is effectively “recorded.” You would then paint or fill via the mask referencing the anchor. This is advanced, but it allows you to move the original decal layer and have the mask follow it or vice versa.
• Snapping Considerations: If aligning decals with existing features (like panel lines), using the 2D view with the baked normal map or ambient occlusion as a guide can help. There isn’t a “snap to edge” for decals, but eyeballing with the UV layout visible gets the job done.

Tip for Curved Surfaces: Positioning on curved surfaces might appear off in the UV view (since UVs distort), so a combination of 3D view and 2D view adjustments may be necessary. You can project in 3D view for initial placement then fine-tune in 2D.

Accurate placement often involves some trial and error: stamp, undo, adjust, stamp again. Use Ctrl+Z liberally if a placement isn’t right, and try again with slight adjustments. Over time, you’ll get a feel for how much to rotate or move.

Finally, remember that Substance Painter’s resolution plays a part. If you want to place a decal pixel-perfect, ensure your project resolution is high enough (e.g., work at 2K or 4K if the decal needs clarity). Otherwise, even a well-placed decal could look blurry (more on that later).

What is the best way to create custom decals for Substance Painter?

Creating custom decals involves both making the image and preparing it for use in Substance Painter. Here’s a guide to create high-quality custom decals:

1. Design Your Decal Image: Use software like Adobe Photoshop, Illustrator, GIMP, or Inkscape to create the decal.
   • For logos, icons, or text-based decals, starting in vector format (SVG) is great for scalability. Illustrator or Inkscape can produce SVGs which Painter can import.
   • For photographic decals (e.g., graffiti or sticker images), use Photoshop or GIMP. Ensure you have the rights to use the image or use public domain resources.
2. Use High Resolution: Work large (e.g., design at 2048×2048 or higher) even if the final decal will be small on the model. You can always scale down, but scaling up will cause pixelation. Many artists use 2K or 4K canvases for decals.
3. Include an Alpha Channel: Remove backgrounds so only the decal content is visible.
   • If working in Photoshop, delete the background layer or use a layer mask to isolate the decal. The transparent areas will become the alpha channel.
   • If using a vector (SVG) workflow, define shapes with no background. Painter’s SVG import will automatically handle transparency.
4. Choose Format: Save the decal in a format that supports transparency – PNG and TGA are common. PNG is more convenient (smaller file sizes typically, lossless compression).
5. Test in Painter: Import your custom decal into Substance Painter and test it on a simple shape (like a sphere or plane) to ensure the edges are clean and there are no artifacts.
   • Check that colors look correct and the alpha cuts out the shape properly. If not, adjust levels on your alpha in your image editing software and re-export.
6. Optionally Create a Material Preset: If your decal needs specific material properties (normal map detail, roughness variations, etc.), consider creating a decal material in Substance Designer or Painter:
   • Substance Designer can create .sbsar materials with exposed parameters (color, aging, etc.).
   • These materials in SBSAR can be imported as Decals in Painter, and they come with built-in alpha for all channels.
   • This is advanced, but extremely powerful if you plan to reuse and tweak decals frequently (e.g., a single decal that can be any color via a parameter).
7. Organization: Keep a library of your custom decals. Over time you’ll accumulate many. It’s wise to store the source files (PSD/AI) in one place and the exported PNGs in another. You can then import those PNGs as needed or even keep them in your shelf permanently for easy access.

Design Tips for Realism:

• Add a slight grunge or wear to your decal in the source image (or you can add it later in Painter via masks). Real stickers often have faded ink or scratched edges.
• If it’s supposed to be a separate material (e.g., a vinyl sticker on metal), you may want to create a subtle normal map for it (like a tiny ridge at the edge). You can paint that in a gray channel in Photoshop or generate one via filters and import it as well.
• Keep colors in sRGB and avoid pure black on the alpha edges unless the decal is supposed to feather out; a one-pixel border of partial transparency can help anti-aliasing on the decal edges.

Ultimately, the best decal is one that looks integrated on the model. That often comes from a combination of a well-crafted decal image and the right material settings in Painter when applying it. By designing carefully and testing, you’ll create decals that enhance your 3D art significantly.

How do I use alpha channels for stickers in Substance Painter?

Alpha channels are essential for stickers/decals because they define transparency. When using stickers in Substance Painter, you’ll encounter alpha channels in two contexts: brush alphas and material opacity in layers.

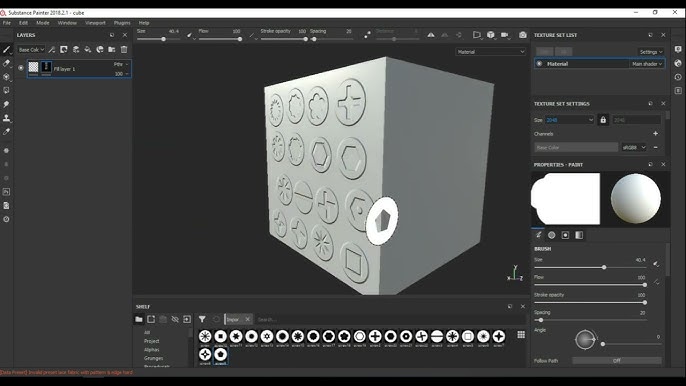

Using Alpha in Brush/Stencils:

• When you use a decal as a brush alpha (for stamping or painting), the brush alpha essentially is the grayscale image that dictates what parts of the brush stamp are opaque. Substance interprets white as full paint, black as no paint, and gray as partial.
• If you import a PNG as an Alpha, Substance Painter will internally use its transparency as the brush shape. For instance, a feather-shaped PNG alpha would result in a feather-shaped paint stroke.
• To use it: Select a paint layer (or add one), pick a basic brush, then in Brush Properties > Alpha, choose your imported alpha. Now, when you click on the model, the brush will apply that shape.
• Alignment Settings: If you’re painting the sticker, you may want Alignment = Camera or UV depending on the scenario. Camera alignment means the alpha always faces you (good for one-off stamps) while UV means it aligns with the model’s UV (good for precision and consistency across strokes).

Using Alpha in Fill Layers (Decal materials):

• If you drop a decal image onto a fill layer’s Base Color, you still need the alpha to mask it out. Two approaches:
  1. Black Mask & Alpha Fill: Add a black mask, then add a Fill effect to that mask. In the grayscale slot of the fill, load the same image (or its alpha). This uses the image’s alpha as the mask shape.
     • In the fill properties, you might see an Alpha mode or Alpha Behavior. Choose “Alpha: Extract Alpha” if using a color image with transparency. This tells Painter to derive the mask from the image’s alpha channel. It prevents issues where dark-colored decals might be treated as transparent erroneously.
  2. Use as Alpha Channel in Material: If you have a complete material (like an SBSAR decal material), it likely contains an opacity channel or uses the basecolor alpha. In Painter, you’d add that material on a plane via the decal system (Alt+drag into viewport) which sets up the layer with alpha automatically.
• Alpha for Other Channels: Sometimes you might use the sticker alpha to affect other channels. For example, you want a sticker that also has a normal map detail but only where the sticker is. You can use the same mask (alpha) to constrain normal or height effects. In practice, using the fill + black mask method covers all channels at once, which is convenient.

Practical Example: You have a “skull” sticker PNG with alpha.

• Import PNG as texture.
• Create fill layer, assign skull PNG to Base Color.
• Add black mask, then add fill to mask with the skull PNG grayscale. Since the PNG has transparency, set Alpha = Alpha (or Extract Alpha) so the skull shape appears and background is masked.
• Enable the Height channel on that fill layer, set a small positive or negative value to give the sticker slight bump.
• Now the alpha ensures that both color and height only apply in the skull shape. The rest of the layer is transparent.

Troubleshooting Alpha:

• If your decal/sticker appears faint or with fringes, it might be that the alpha isn’t interpreted correctly. Tweak the levels of the mask or use “Invert” if it’s backwards.
• Some formats like PSD can have multiple alpha channels which Painter might not read. Stick to single-alpha per image (PNG, TGA).
• If using an alpha only (say a black and white PNG), import it as an Alpha. If using a color image with transparency, import as Texture and then use the method above to extract alpha.

In summary, alpha channels for stickers tell Substance Painter which parts of your decal layer are visible. Mastering this means your stickers will seamlessly integrate onto the model surface without unwanted squares or backgrounds.

How do I project decals onto curved surfaces in Substance Painter?

Projecting decals onto curved surfaces can be challenging, as you want to avoid stretching or distortion. Substance Painter offers a few techniques to handle this gracefully:

• Stencil Projection (Camera-based): Using the Projection (Stencil) method (hold S and use mouse as mentioned earlier) is often easiest for curved surfaces. It’s like shining an image projector onto the model:
  • Pros: What you see is what you get; you can move around the model and project at the right angle.
  • Cons: If the surface is highly curved (like a sphere), the decal might distort at the edges of the projection. Also, the projection is along one view axis, so areas not facing the camera won’t get the decal.
  • Tip: Do the projection in multiple parts if needed. E.g., project the decal on one side of a round object, then rotate the camera and project again, blending as necessary.
• UV Mapping Consideration: If the curved surface has a well-laid UV (like a cylinder unwrapped properly), stamping in UV space (brush alignment UV or using the 2D view) might yield better results. The decal will follow the UV distortion. For mild curves (like a gently curved wall), this is fine. For extreme curves (like a sphere), you might see pinching if the UV is polar.
• Warp Projection (newer versions of Painter): Substance 3D Painter introduced a Warp Projection mode. This allows you to bend and deform a projected texture via a grid:
  • You drag and drop an image onto the model, choose a channel (like Base Color) and it creates a fill with Warp projection.
  • You can then adjust a lattice (grid) to conform the decal better onto the surface.
  • This is great for placing logos on curved or irregularly shaped meshes (e.g., a logo on a curved helmet).
  • It avoids the need to manually warp the image beforehand; you do it in 3D.
• Tri-Planar Projection: Not directly for one-off decals, but if you had a pattern decal or something, tri-planar projection (in a fill layer) could wrap it without seams. However, for individual decals, this is less used, as it repeats on all axes.
• Multiple Axis Projection: If you need to cover a very curved area, one trick is to split the decal into pieces, or use a pre-distorted decal. Some artists will create the decal in Photoshop already warped (like using a displacement to bend it). But this is case-by-case and often trial & error.
• Check UV wrap Setting: If you use the fill layer method, set Projection = Planar and then ensure UV Wrap = None. “Planar” allows you to move the decal in 3D space as a planar projection – it’s like a sticker being pressed straight on. Align the projection axis roughly perpendicular to the surface. This can work for moderate curves; the decal might still stretch if the surface falls away at the edges.

In difficult scenarios, consider:

• Decal Meshes: Outside of Substance Painter, another approach is to use decal geometry (a technique often used in games). For example, in Blender or Maya, project a flat plane with the decal onto the curved surface using shrinkwrap. But that’s outside Painter’s scope and more for engine (like Unreal/Unity) use, or if you bake it down.
• Manual Painting: If all else fails, you could manually paint the shape with a brush along the curve, but that’s tedious for complex decals.

Summary: For curved surfaces:

• Try stencil projection first (with a bit of softness if needed to blend).
• Use warp projection tool for fine control if available (Painter 2021+ features).
• Ensure proper alignment (camera vs UV) to minimize distortion.
• Remember, the goal is to minimize stretching – sometimes splitting the decal or using multiple smaller projections yields a cleaner result than one big projection.

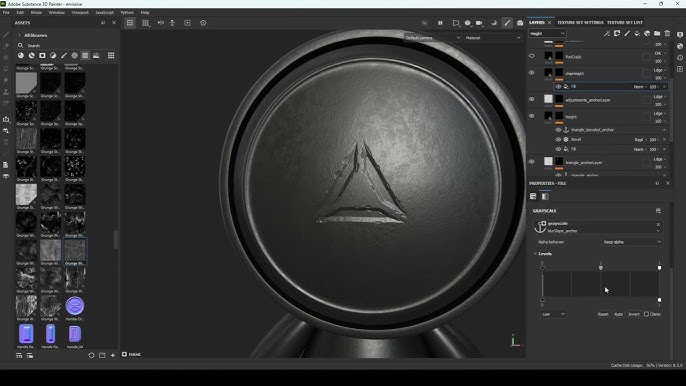

Can I use anchor points with decals in Substance Painter?

Yes, anchor points are extremely useful with decals in Substance Painter. An anchor point allows you to reference the content of a layer (or the entire stack below) later on in other effects. For decals, anchor points enable advanced effects like adding wear that sticks to the decal shape, or using the decal in another mask.

How to use an Anchor Point with a Decal:

1. After you have your decal layer (say a fill layer with a black mask showing a decal), right-click the layer and choose “Add Anchor Point.” Give it a name if you like (by default it might be something like “Anchorpoint 1”).
2. Now, this anchor captures the result of that layer (including the mask). You can use this in any other fill or effect by selecting “Anchor Point” as a resource.
3. Example – Adding wear to only the decal: On the same decal layer’s mask, you can add a Paint effect or another Fill effect on top of the existing one.
   • Add a Fill on the mask, choose a grunge or dirt texture (this will affect the whole model if unmasked).
   • To limit it to the decal, in the Fill’s properties, look for “Use Anchor Points” and pick the anchor you made. Set it to “Multiply” or “Subtract” blending, meaning the grunge will only show where the anchor (decal) is.
   • Usually, you’ll also set Anchor Usage = Multiply on Alpha or similar, depending on options, which confines the effect within the decal’s alpha.
   • Now the grunge only appears on the decal area, making it look like the decal itself is scratched or peeling.
4. Example – Height Control via Anchor: Suppose your decal has dark colors that you want to treat differently in height. If you have the decal color image with alpha, sometimes direct use can make the darker parts semi-transparent. Using an anchor with “Extract Alpha” solves that, as noted earlier. The workflow was:
   • Place decal > Anchor it.
   • In mask fill, use anchor with Extract Alpha to perfectly isolate the opaque shape of the decal regardless of color.
   • This ensures, for instance, that a black logo still appears fully on the mask (not faint or see-through).
5. Using Anchor for Decal Reuse: If you have multiple texture sets (UV tiles or UDIMs), you could potentially stamp a decal on one texture set and use an anchor to have it appear or affect another. This is more complex and usually unnecessary, but anchors do allow cross-communication if needed within one TextureSet.

In short, anchors with decals = more control. They are particularly helpful for:

• Creating consistent wear or effects (dirt, rust, fade) that align exactly with the decal.
• Preventing alpha issues by explicitly extracting transparency.
• Reusing a painted detail in generators (some generators can use anchor points as inputs).

Just remember, if you use anchor points for a large number of decals, it can slow Painter a bit, because it has to bake those references. Use them where they add clear value (like complex weathering) but for simple one-off decals you might not need an anchor at all.

How do I add wear and tear to decals for realism?

Adding wear and tear to decals can make them look more realistic, as if the sticker has aged or the paint decal has chipped. There are several methods to achieve this in Substance Painter:

• Grunge Masks on Decal Layer: As touched on above, the easiest method is to utilize a mask on the decal layer:
  1. After applying the decal via a fill layer + mask, you effectively have a mask that isolates the decal shape.
  2. Add a Paint or Fill effect inside that mask to introduce variation.
  3. For example, add a Fill, select a grunge map (like “Grunge Scratches” or “Grunge Dirt”) from the Procedurals section.
  4. Set this Fill’s blending mode to Multiply (so it darkens the mask) or Subtract, which will make parts of the decal disappear in a worn pattern.
  5. Adjust the balance/contrast of the grunge to get the desired amount of wear. White areas in the mask = decal visible, black = decal removed. So multiplying a black-heavy grunge will peel the decal heavily.
• Eraser or Paint Brush: For finer control, you can manually paint the mask:
  • Use a brush with an alpha (like a rough brush or dirt brush).
  • Paint in black on the decal’s mask to erase bits of it, simulating peeling edges or scratches. Painting white would restore it if you remove too much.
  • Use a low opacity brush to gradually scrape it off in places for subtle effects.
• Anchor Point with Generator: This is a more advanced approach:
  • Place an anchor on the decal as described.
  • On a separate layer above, you could use a Generator (like the Metal Edge Wear, though that one usually looks at geometry masks).
  • Some generators like Dirt or Dripping Rust allow custom masks or anchor inputs. If you feed the decal anchor into such generators, they might place dirt on the decal’s location.
  • Alternatively, one clever use is to duplicate the decal layer, make it slightly smaller or offset, and use a different color to look like an undercoat.
• Roughness Variation: Wear isn’t just about pieces missing; it’s also about surface finish:
  • You can add a fill to the decal’s mask in invert mode (so you target the opposite area) and make the decal’s Roughness more matte or more glossy in patches, like the clear coat on a sticker has been scuffed.
  • E.g., add a Fill effect on the mask with a grunge, set it to affect only roughness channel (you might have to do this via adding a fill layer just for roughness on top and masking it similarly).
• Normal Map Nicks: If the decal is like a painted stencil on metal, wear might also mean the underlying metal is exposed. You could simulate a tiny height difference where the decal has chipped. This can be done by:
  • Adding a small negative Height value on the decal layer so it’s recessed, then where the decal is removed (mask black), the recess shows as if paint chipped off.
  • Or conversely, give the decal a slight positive height so it’s like a sticker, then weathering removes it back down to base.
• Color Fading: Use a generator or manual paint to slightly change the decal’s color in worn areas (like sun-bleaching). For instance, add a filter effect on the fill layer (like HSL) and mask that filter with a grunge.

Practical Example: You have a white sticker decal on a metal toolbox and want it worn.

• Decal applied (white logo, with black outline).
• Add grunge fill on mask, multiply mode, so bits of the logo are patchy/missing.
• Use an anchor if needed to ensure edges don’t semi-transparent blur.
• Increase roughness where missing (so underlying metal shines differently).
• Slightly randomize the decal’s opacity (via mask) so it’s not fully uniform even where intact.

Realism often comes from subtlety. A common mistake is overdoing it. The best approach is to apply some wear, then view the model as it would appear in context (game engine, render) to ensure it’s noticeable but not overblown, adjusting as necessary.

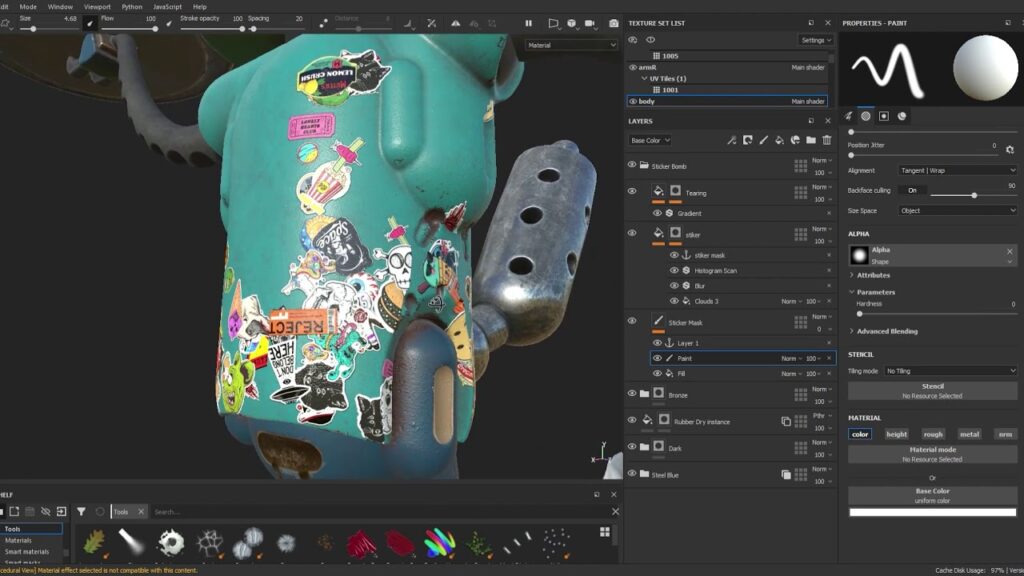

What brush settings are best for placing stickers in Substance Painter?

When placing stickers (decals) with a brush in Substance Painter (as opposed to the fill layer method), using the right brush settings is vital for a clean result. Here are key settings and why they matter:

• Alignment: Set Alignment to “UV” or “Camera” depending on situation:
  • UV Alignment means the decal will stamp relative to the UV layout. This is great to avoid distortion across seams and to ensure the decal sits flat on the UV shell. Use UV for most cases where you can position via the UV space.
  • Camera Alignment stamps it in screen space (projecting from your view). This can cause stretching if the surface is angled, but is sometimes easier for quick placement on flat-ish areas you directly face.
  • Avoid Tangent Wrap for decals – that’s better for continuous brush strokes that follow the model’s curvature (it’s the default for painting, but can smear a decal).
• Size and Spacing:
  • Size (Brush Size): You’ll adjust this per decal. Use the bracket keys [ ] or Ctrl+RMB drag for convenience. If you need numeric precision, you can type it in the Size slider. Sometimes, knowing the pixel size relative to your texture is useful (e.g., you want the sticker exactly 256 pixels tall on a 2K map).
  • Spacing: Set spacing to 1 (or very low) if you’re stamping one at a time, to ensure one click places one decal without repeats.
• Flow and Opacity: Keep Flow = 1 (100%) and Opacity = 1 for decals, since you usually want full application in one stamp. Lower flow would cause a faint decal which you’d have to build up by painting over multiple times – usually not needed unless for a deliberate faded effect.
• Angle Jitter Off: Ensure there’s no random angle jitter (unless you purposely want random orientation). You can manually rotate the alpha via Angle control or by pressing Ctrl while stamping as mentioned.
• Alpha: Obviously choose your decal alpha. No hardness setting here since the alpha defines the hardness. But ensure Anti-Aliasing is checked (in brush settings) if you want smooth edges; it usually is by default.
• Stroke > Smoothing: Not too relevant for a single click, but if you were painting a sequence of sticker shapes (like a patterned line of decals), you might use steady stroke or lazy mouse for control. For one-click stamps, not needed.
• Material Channels (on brush): If you are painting the decal through a paint layer (not fill), look at the Material section of the brush. You can load your decal into Base Color slot of the brush material and also provide any other channels like height. But more simply, using a fill layer method is easier to manage channels. For brush painting, you could keep only color channel active to just paint color. If you want it to also paint height/roughness, turn those on and set the values appropriately (e.g., brush height value = 0.2 if you want a raised decal).
• Hardness and Falloff: You typically want a crisp stamp. So brush hardness 100% (no falloff). If your alpha itself has fuzzy edges, that’s a different story (some stickers might have intentionally soft edges, but usually not). If you find the decal edge is too sharp maybe looking unrealistic, better to address via mask/grunge after – keep the stamp itself sharp.
• Symmetry (optional): If you need the same sticker on the symmetrical side of a model (like left and right door of a car), you can use symmetry (enable symmetry X, etc., in the toolbar) so one stamp places two. Just ensure the model is perfectly symmetrical and UVs mirrored appropriately for that to work well.

Best Practice: Many artists use the fill+mask method for precise control, but if you prefer brush stamping:

• Create a paint layer, only enable needed channels.
• Set brush as described (with your decal alpha).
• Stamp once. If not perfect, undo, adjust brush size or angle, and stamp again.
• Once placed, you can still erase parts by painting the mask or layer.

After stamping via brush, if you want to move the decal, you cannot directly (since it’s a painted pixel now). You would need to undo and re-stamp, or use the fill layer approach. This is why some prefer the non-destructive fill layer method for flexibility.

In summary, brush settings that treat the decal like a one-shot stamp (no random jitter, full opacity, aligned correctly) are best. Once set up, it’s essentially like using a custom sticker brush.

How do I organize and manage a library of decals in Substance Painter?

Managing a growing library of decals is important for efficiency, especially if you create a lot of custom ones or download many. Substance Painter’s newer versions refer to the asset library (formerly “Shelf”) where you can add your resources. Here’s how to organize your decals:

• Create Custom Library Folder (Shelf): In Settings > Libraries configuration, you can add a new path to your assets. For instance, make a folder on your drive “SubstanceAssets” and within it, create subfolders mimicking the default structure, e.g., SubstanceAssets/Textures/Decals.
  • Add this path in Painter as a library. Painter will treat it as an additional “shelf”. You can name it something like “MyDecals” when adding.
  • This separates your decals from the built-in assets. It also makes backups easier since you know where all custom stuff resides.
• Use Tags or Naming Conventions: Within the shelf, you can’t (as of now) add new categories in the UI, but you can name files with prefixes or tags (some users include tags in filenames like “Decal_Graffiti_StopSign.png”). Painter’s search bar in the Assets panel will find file names and tags, so be consistent.
• Decal vs Alpha vs Material: Decide how you use them:
  • If you just have images (PNGs), keeping them in Textures or Alphas category is fine.
  • If you made .sbsar decal materials (with full material definition), those would live in Materials or Decals category (Adobe has a specific Decals category for .sbsar now).
  • Possibly create subfolders: e.g., MyDecals/Alphas/Stickers, MyDecals/Textures/Logos to differentiate types.
• Previews: It helps to have thumbnails. If you import via the shelf by copying files, you might notice they get default icons. A trick: import them once through Painter (which generates previews) or create a .png thumbnail manually if needed (advanced, requires matching naming convention .preview.png).
• Bulk Import: You can drag multiple files at once to import and assign them all to a library location. This is useful when you download a decal pack (e.g., a set of graffiti PNGs).
• Shelf Search and Filters: Use the search in the Assets window to quickly find decals by keyword. If you named them well (e.g., “rusty_bullet_hole_decal”), searching “bullet” will show it.
• External Organization: Keep original sources (like Photoshop files or downloaded zips) in a separate folder outside Painter’s shelf to avoid clutter or accidental changes. Treat the shelf as the “runtime” library and your external backup as the source library.
• Backup Your Library: The “your_assets” (formerly shelf) directory in Documents holds custom stuff. If you move to a new PC or reinstall, backup this folder to carry your decals with you. Alternatively, since you’ve set a custom path, just copy that custom folder.
• Updating Assets: If you edit a decal image and want to update it, you may need to re-import or refresh. If it’s in a shelf folder that Painter monitors at startup, a restart might load the updated file. Or remove & re-add resource.
• No Native Folders in UI: Currently, you can’t have subfolders visible in Painter’s UI under the same category – it’s a flat list per category. Hence why naming and tagging is important to simulate categories.

By organizing well, you save time. Instead of hunting through random files on your computer when you need that “caution label” decal you made 6 months ago, you’ll have it at your fingertips in Painter’s library. This encourages reuse, which in a production setting (games, film) is a huge time saver.

Remember to purge or clean up ones you never use to keep the library lean. Too many assets can slow down loading times, though moderate numbers are fine.

How do I export textures with decals from Substance Painter?

Exporting textures that include your decals is essentially the same as exporting any Substance Painter textures, since decals become part of the material on your model. Here’s what to do:

1. Finalize Your Texture Work: Ensure all your decals and layers are as you want them. If you used anchor points or generators, make sure everything has computed correctly (usually just checking visually is enough).
2. Go to Export Textures: Click File > Export Textures (or hit Ctrl+Shift+E).
3. Configure Settings:
   • Output Directory: Choose where to save the textures.
   • File Format: PNG, TGA, etc. If your decals have transparency and you need to preserve that in the final texture (e.g., you want an opacity map), choose PNG/TGA because JPG will flatten without alpha.
   • Resolution: By default, it will export at your project’s working resolution (you can override per texture set if needed).
   • Export Preset: Select the preset for your target renderer/engine (e.g., PBR Metallic Roughness, Unity, Unreal, etc.). Decals don’t need any special preset; they’re just part of the maps now.
   • If you created a custom opacity map (less common, unless you were making decal geometry for engine), ensure your preset includes opacity or transparency channel.
4. Which Maps Will Include Decals? The decal’s information will be baked into whatever channels you painted. Typically:
   • Base Color (Diffuse/Albedo) map will have the decal’s color.
   • Roughness/Metallic maps will include any changes you made for the decal material (for example, if decal area is more rough or metallic).
   • Normal map could include decal detail if you added any height/normal info on the decal layer. Substance would have blended that into the normal map it exports.
   • Height map (if exporting) similarly includes decal bump if you used height.
   • Opacity map only if you explicitly used opacity channel (rare for decals unless you were doing transparent materials like clear stickers).
5. Hit Export: Painter will generate the textures. Your decals are now just part of these bitmaps.
6. Check the Result: It’s a good idea to inspect the exported maps:
   • Open the Base Color in an image viewer. You should see your decals visible on the texture (likely with the rest of the surface).
   • Check normal/roughness if applicable, to ensure no weird artifacts (shouldn’t be, if it looked good in Painter).
   • If a decal looked fine in Painter but the export looks off (like aliasing), it might be a resolution issue or padding issue.
     • You can try increasing dilation (padding) in export settings if you have tight UVs around decals, to avoid color bleeding at edges.

Troubleshooting:

• “My decal isn’t visible in the export.” – Make sure the decal layer is not accidentally masked or hidden. Also verify you exported the correct Texture Set (if multiple material IDs on model).
• “The decal looks jagged in the engine.” – This could be mipmapping in the engine making a high-contrast small detail smear. Potential solutions: increase resolution of export, or in-engine adjust mipmap bias for that texture. Also, ensure sRGB on color maps (decals will get gamma-corrected properly).
• “I want the decal separately.” – If for some reason you wanted just the decal as a separate texture (for use as an overlay in-engine), you’d have to set up a separate export. Possibly isolate via mask and export that mask. But generally, if you need separate decal textures, you might approach the whole thing differently (like using decal actors in the engine instead of baking in Painter).

Since the question is “with decals”, it implies ensuring the decals are included in the exported maps. By following the standard export, they are. Substance Painter doesn’t treat them specially at export time – it’s all just pixels in your channels.

Why is my decal blurry or pixelated in Substance Painter?

Blurry or pixelated decals can result from a few different factors. It’s a common issue and usually can be resolved by checking the following:

• Texture Resolution of the Project: If your Substance project is set to a low resolution (say 1K) and you’re zoomed in, decals will look blurry because there aren’t enough pixels to represent them crisply. Solution: Increase the document resolution (you can do this via Texture Set Settings > Resolution). Many decals need at least 2K to look sharp, especially if they contain fine text or details.
• Decal Source Resolution: If you imported a small image (e.g., a 512px logo) and you’re applying it large on a 4K texture, the image itself is low-res and will pixelate. Always use a higher-res source for decals than you think you need. If you only have a small image, consider vectorizing it or finding a larger one.
• Filtering Mode: Substance Painter by default uses bilinear filtering on fill layers. Sometimes this can slightly blur an image. If you want the absolute sharpest result, you can switch the fill layer’s Filtering to “Nearest”. This will stop any smoothing but could introduce jaggies if you scale non-integer amounts. It’s a trade-off: “Bilinear Sharp” or “Bilinear HQ” are default; try sharp vs HQ to see difference. (HQ smooths a bit more for high tiling).
• Mipmap Preview: The 3D viewport might be showing a lower mipmap if you’re not close to the object. In Painter, if you zoom out, the texture will mipmap and appear blurrier to save performance. Zoom in 100% in 2D view to check true resolution. Also, check Viewer Settings – there’s a slider for texture quality. Ensure it’s at full res for your review.
• Insufficient Texel Density: If the decal is on a very small UV island or the UVs are such that area has low pixel density relative to the model, it can be inherently blurry. For instance, putting a lot of small text on a tiny part of the UV (which only gets a few pixels in the map) will never be sharp. The polycount forum example we saw noted that if you only have 16 pixels of height for text, even 4K might not suffice for crisp edges. Solution: You might need to adjust your UV layout to allocate more texture space to areas where decals go, or use a second UV set for decals (advanced use case).
• Alpha and Edge Bleeding: Sometimes a decal can look soft if the alpha edge is semi-transparent. If your decal’s alpha wasn’t clean (maybe a soft edge), it will naturally look a bit blurry. Ensuring a crisp alpha (or using “Extract Alpha” to avoid pre-multiplied issues) helps. Also, when painting, disable any additional blur (like if you accidentally had a blur filter effect on the mask).
• Viewport Scale on High DPI: If you’re on a high DPI monitor, Substance by default downscales the viewport for performance. This can make everything slightly blurry. You can turn up viewport scaling in settings (though it may slow performance).
• Engine vs Painter difference: If you notice it sharp in Painter but blurry in the game engine, that might be due to MipMaps in the engine or texture compression. You can combat that by increasing export resolution or tweaking engine import settings (like using TC_EditorSetting in Unreal to keep it crisp, or anistropic filtering, etc.), though that’s beyond Painter itself.

To summarize fixes:

• Work at a higher resolution in Painter and downscale on export if needed.
• Use high-res decal images.
• Adjust filtering to nearest for that layer if appropriate.
• Check that your UVs allocate enough space for the detail.
• If all else fails and you need extreme sharpness for something like small text, consider applying that detail in post (e.g., in Photoshop on the exported map) or using a decal mesh in-engine for that particular detail as mentioned on Polycount, but usually that’s not necessary.

Most of the time, upping resolution and using quality sources will fix blurry decals.

Where can I download free decals and stickers for Substance Painter?

There are several great resources for finding free (and paid) decals, stickers, and general textures for use in Substance Painter. Here’s a list of some popular ones:

• Adobe Substance 3D Community Assets (Substance Share successor): Adobe’s own community site. You can find a category for Decals where users upload decal materials (usually in .sbsar format). These often come with all channels (color, normal, etc.) and can be directly used in Painter. Search for “decal” or browse the Decals section.
• OpenGameArt and Texture Sharing Sites: OpenGameArt has packs like “Free Decals Materials” which contain images and materials you can use. Other sites like CC0Textures (now AmbientCG) have decal-related materials (e.g., sticker and signage textures). AmbientCG has assets such as Sticker 001 and various road markings, all public domain.
• ArtStation & Gumroad: Many artists release free decal packs on ArtStation or Gumroad. For example, you might find a pack of sci-fi panel decals, graffiti, warning labels, etc., for free or a very low price. Search ArtStation Marketplace for “Decal”. Sometimes these are alpha packs intended for Painter or other texturing software.
• Textures.com (formerly CGTextures): Textures.com has a decals category. Free users can download lower-res versions, and there are paid options for higher res. It often has things like signs, grunge stickers, cracks, bullet holes.
• GameDev Marketplaces: Unity Asset Store or Unreal Marketplace sometimes have free decal packs (though often more geared to engine decal actors). Still, the images can be extracted and used in Painter.
• Blender Resources: Blender community has some decal resources (like “Decal Machine” addon comes with some, though that’s a paid addon). There’s also a free Blender addon called “Slap It” which had some decals included, and perhaps community threads sharing.
• DeviantArt and Pinterest: Surprisingly, searching these can find user-made decal sheets (like a collection of stickers in one image). Just ensure the license – not everything on those platforms is free to use, but some artists share for free.

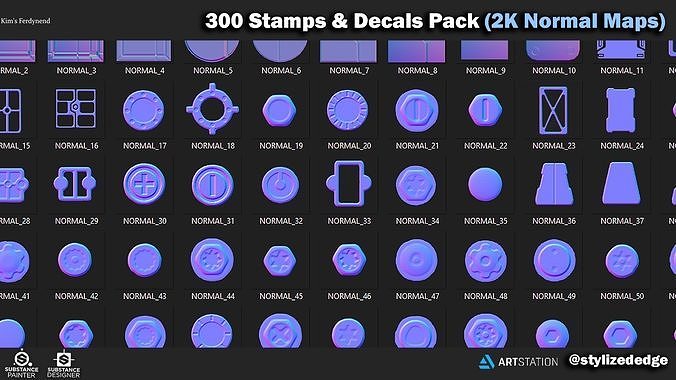

• Specific Packs: There are known free packs like:
  • Yughues’ Decals (on OpenGameArt as cited).
  • 35 Free Sci-fi Decals by Andrew Averkin (found via ArtStation).
  • Simeon Donchev’s free decals (often shared on ArtStation).
  • Freya Holmer’s graffiti pack (if still available).
• Community Forums: Check r/Substance3D (Reddit) or Polycount forums; users occasionally share decal resources or point to ones.

When downloading, prefer those with an alpha channel or separate mask. Many decal packs come as a bunch of PNGs with transparency – perfect for Painter. If you get a decal sheet (multiple decals on one image), you might need to crop them or use them as a single atlas with a mask.

Also, always verify the license. If it’s CC0 or public domain, you’re good to use it in commercial projects. If it’s CC-BY, credit the author accordingly (maybe not in the final game art, but wherever credits can be given). For personal/portfolio, just avoid any clearly copyrighted imagery unless the source is free-for-use.

Finally, keep your library organized as previously discussed, so these assets are ready when you need them.

FAQ Questions and Answers

1. Can I create decals in Substance Painter without using external images?
   Yes. You can create decals directly in Substance Painter by painting or using text/font alphas and then exporting them as images or reusing via anchor points. For example, you can type text using the fonts available (as alphas) and stamp it, or paint a design using brushes, then capture that as a decal. However, these are still ultimately images (or layer content) – Painter itself doesn’t have a “decal authoring mode” besides using it as a painting tool. If you need a reusable decal, you might create it on a plane and export that as a texture.

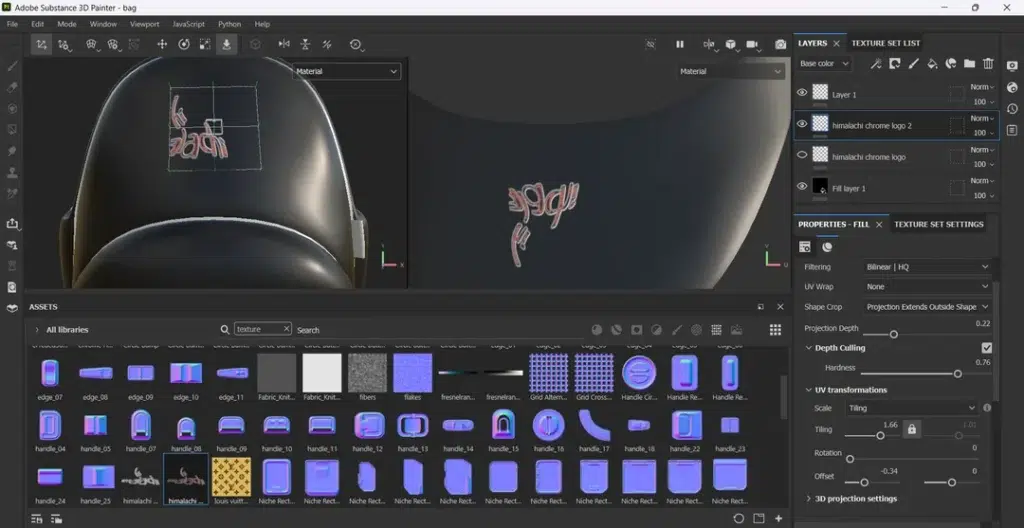

2. How do I make sure decals don’t repeat or tile on a fill layer?
   Set the UV wrap mode to None for that fill/projection. By default, a fill might repeat (tile) across UV if the projection is UV or planar and tiling. Changing it to None means anything outside the decal’s placement is transparent. This prevents multiple instances appearing. In Painter’s fill properties, find “UV Wrap” and choose None.
3. My decal looks jagged on the edges. How can I smooth it?
   If the edges are aliased, first ensure you imported a high-res source. If it’s still jagged due to the alpha, you can add a tiny blur to the mask or use the smudge tool gently. Painter also has an Anti-aliasing option when stamping from UV view (look at the toolbar, there’s a small AA toggle when in projection mode). Moreover, make sure your Texture Set resolution is high. If needed, apply a Blur filter effect on the mask (with very low intensity, 0.2 or so) just to soften the pixels.
4. Can I use Substance Painter decals in Blender or other 3D software?
   Once you’ve applied decals in Substance Painter and exported the textures, those textures (with decals baked in) can be applied to your model in Blender, Maya, game engines, etc. If you mean using the decal assets themselves in Blender, you’d typically do decal application within Blender using something like a shrinkwrap method or Blender’s texture painting. However, nothing stops you from exporting a decal image from Painter and using it as a stencil brush in Blender’s texture paint. Some workflows: texture in Painter (with decals) -> export -> apply textures in Blender for rendering or further tweaking. There’s also a Blender addon “Decal Machine” which is separate from Painter but can work in tandem (you can import Decal Machine decals into Painter too, but you might lose the normal info unless handled carefully).
5. What’s the difference between decals and stamps or stickers in terminology?
   They’re often used interchangeably. Generally:
   • Decal in game art refers to a projected texture usually on top of another surface (sometimes using a separate geometry piece).
   • Sticker implies a decal that looks like a literal sticker (often with slight thickness or paper look).
   • Stamp just refers to the act of placing an image via a brush. In Substance Painter, all of these are just textures applied via layers/masks. The exact term doesn’t change how you do it, but decals might also refer to .sbsar materials dedicated for stamping, whereas stickers might imply just color/alpha images.
6. How can I remove or replace a decal without redoing the whole texture?
   If you used the recommended non-destructive method (fill layer with a mask or a paint layer just for the decal), you can simply delete or hide that layer to remove the decal. To replace it, either change the fill image to a different decal or add a new layer for the new decal. If you painted it onto an existing layer, it’s trickier: you’d have to paint over it or use the clone/heal tool or revert to an earlier save. This is why using separate layers for decals is wise.
7. Is there a way to automatically place many decals (randomly scatter)?
   Substance Painter doesn’t have a one-click “scatter decals” feature in the UI, but you can do some creative things:
   • Use a particle brush (the Y branch icon brushes) to scatter an alpha (but that’s more for dirt, not controlled decals).
   • Substance Designer could create a material that scatters shapes (like a procedural sticker bomb material) and you use that material in Painter.
   • There is no built-in “spray decals” tool besides the basic brush random jitter settings. You could, for example, set up a brush with several alphas of leaves and spray foliage decals randomly. However, for specific placement, manual or using a script isn’t available in Painter as of now.
8. The decal I applied in Painter isn’t showing up in Unreal Engine (or is partially transparent). Why?
   If you exported to a standard set of textures (BaseColor, Roughness, Metal, Normal), Unreal will combine Roughness, Metallic, and Ambient Occlusion into one texture typically (the default Painter preset does this into RGB channels). If your decal only affected color and maybe roughness, it should show. If it’s missing, check:
   • Did the BaseColor export have the decal? (Open it to see if decal is there).
   • If you used an opacity channel for the decal (rare), Unreal material needs to use a translucent blend mode, and the opacity texture hooked up.
   • If parts are transparent that shouldn’t be: perhaps your decal was in the opacity map accidentally. Ensure the decal layer wasn’t contributing to opacity unless intended. In Painter, by default, opacity channel isn’t used unless you enabled it.
   • It could also be an issue of sRGB vs Linear on textures. BaseColor should be sRGB (Unreal knows that by default). If your decal was white and it’s looking light grey, that’s a color space thing.
   • Lastly, make sure the material in Unreal uses the textures correctly. A quick test: apply the BaseColor as a diffuse on a simple material on the model to see if the decal shows.
9. How do decals work across UV seams?
   If a decal falls across a UV seam, and you applied it in 3D space (projection), Painter will actually split it onto the respective UV shells. You might see a discontinuity if the underlying UVs aren’t perfectly aligned or if your projection wasn’t from a good angle. To handle this:
   • Try to avoid placing critical decals exactly on a seam. Move it a bit if possible.
   • If unavoidable (e.g., a large decal spanning multiple shells), use the 3D projection and perhaps use Warp Projection to adjust it so it looks continuous. Also ensure both shells have decent resolution.
   • Painter will handle painting across seams, but the filtering at edges might cause a slight misalignment visible. Usually it’s fine if resolution is high and the UV seam is not at a hugely different scale/orientation.
   • You can also touch up the exported texture in Photoshop if needed, but that’s last resort.
10. Are there performance issues with many decals in Substance Painter.
    Painter can generally handle quite a few layers, but if you start stacking lots of high-res images as decals, you may see some slowdown, especially with 4K textures and multiple anchor point usages. Each fill layer with a 4K image and mask is like two 4K images (color + mask). Some tips:
    • Merge decal layers that you are completely done with, if necessary (you can right-click > merge layers, but note they then become one).
    • Use lower resolution for decals that you don’t need super crisp, to save memory.
    • Hide layers you’re not working on to speed up painting on other layers (though the performance gain is limited).
    • Ultimately, Painter is optimized for quite complex substances, so having, say, 20 decals on a 4K set is usually fine on a modern machine with enough RAM and VRAM. If you add effects on each (like blur, warp, anchor-driven generators) it gets heavier.

These FAQs address many common points that artists run into when working with decals and stickers in Substance Painter. Remember that the community forums and documentation are great places to get specific answers as the software evolves.

Conclusion

Decals and stickers in Substance Painter are powerful tools for adding intricate detail and realism to 3D models without heavy modeling or complex material setups. By mastering the use of fill layers, masks, and alphas, you can apply anything from logos on a vehicle to bullet holes on a wall with ease. We covered how to import your own custom images, the importance of using PNGs for transparency, and techniques to position decals accurately – even on tricky curved surfaces using tools like warp projection. We also delved into advanced tips like using anchor points for adding realistic wear and tear, optimal brush settings for stamping decals, and ways to keep your decal library organized for efficient workflow.

For game artists, understanding decals means you can keep texture resolution high where it counts and save on UV space and materials. For animators and film, decals let you iterate on surface details rapidly (change that sign or add a scratch without re-UVing or re-texturing the whole asset). We addressed common questions such as dealing with blurriness (often a resolution issue) and where to find ready-made decals to speed up your work.

In practice, using decals is a balancing act between artistic control and technical constraints. Substance Painter provides a friendly canvas for this: you see the results in real-time and can tweak layers non-destructively. As you integrate decals into your texturing workflow, you’ll find your scenes and models gaining an extra layer of storytelling – a sticker might imply a character’s travel history on a suitcase, or a wall decal might add authenticity to a street scene.

Remember, the key to convincing decals is not just slapping them on, but blending them in: use roughness variation, add subtle wear, match the lighting of the environment (a glossy sticker vs a matte painted decal have different looks). With the knowledge from this guide, you have a complete pipeline to create, apply, and export decals and stickers for portfolio-quality 3D work or optimized game assets. Happy painting!

Sources and Citations

• Adobe Substance 3D Assets – Decals DefinitionAdobe Substance 3D Community Assets – Decals
• Olde Tinkerer Studio – Decals and Stickers Workflow in PainterOlde Tinkerer Studio – Decals and Stickers Workflow in Substance Painter
• World of Level Design – Text/Logo (Alpha) placement and AlignmentWorld of Level Design – Text and Logo Placement in Substance Painter
• Euan Naylor Game Design – Projection and Stencil TipsEuan Naylor Games Design – Adding Decals to Substance Painter
• Polycount Forum – Alpha Blurry on Mesh ExplanationPolycount Forum – Alpha Blurriness Issues
• Adobe Help Docs – Warp Projection for curved surfacesAdobe Substance 3D Painter – All Changes
• Adobe Help Docs – Drag and Drop ImportingAdobe Substance 3D Painter – Text Resource
• Adobe Community Forum (via polycount summary) – Texture filtering and blurrinessAdobe Community Forum – Texture Filtering and Blurriness
• AmbientCG – Free Sticker Decal (example asset)AmbientCG – Sticker Decal
• OpenGameArt – Free Decals Materials pack by YughuesOpenGameArt – Yughues Free Decals Pack

Recommended

• How to Add Texture to a 3D Model in Blender: A Step-by-Step Guide to Creating Stunning Materials
• What is the “Follow Path” constraint for cameras in Blender?
• The Best Bearded Video Game Characters: Iconic Facial Hair and Their Impact on Gaming
• Managing Multiple Camera Settings in Blender with The View Keeper
• The Ultimate Guide to Hair for Games: Techniques, Tools, and Trends
• How to Use Clothes for MetaHuman in Animation: Best Tools, Techniques, and Workflows in Unreal Engine 5
• Devil May Cry Anime on Netflix: Release Date, Storyline, Cast, and What to Expect
• How to Make Metahumans Look Realistic in Unreal Engine 5: Complete Guide for Artists and Developers
• Managing Blender Scenes with Multiple Cameras Using The View Keeper
• Blender Camera Angles: Capturing the Perfect Shot with The View Keeper
