Tracking an object with a camera in Blender allows you to create dynamic and engaging animations, ensuring the camera consistently focuses on a particular subject throughout its movement. This technique is essential for cinematic shots, product showcases, or complex animations. Here’s a step-by-step guide to achieve this effect.

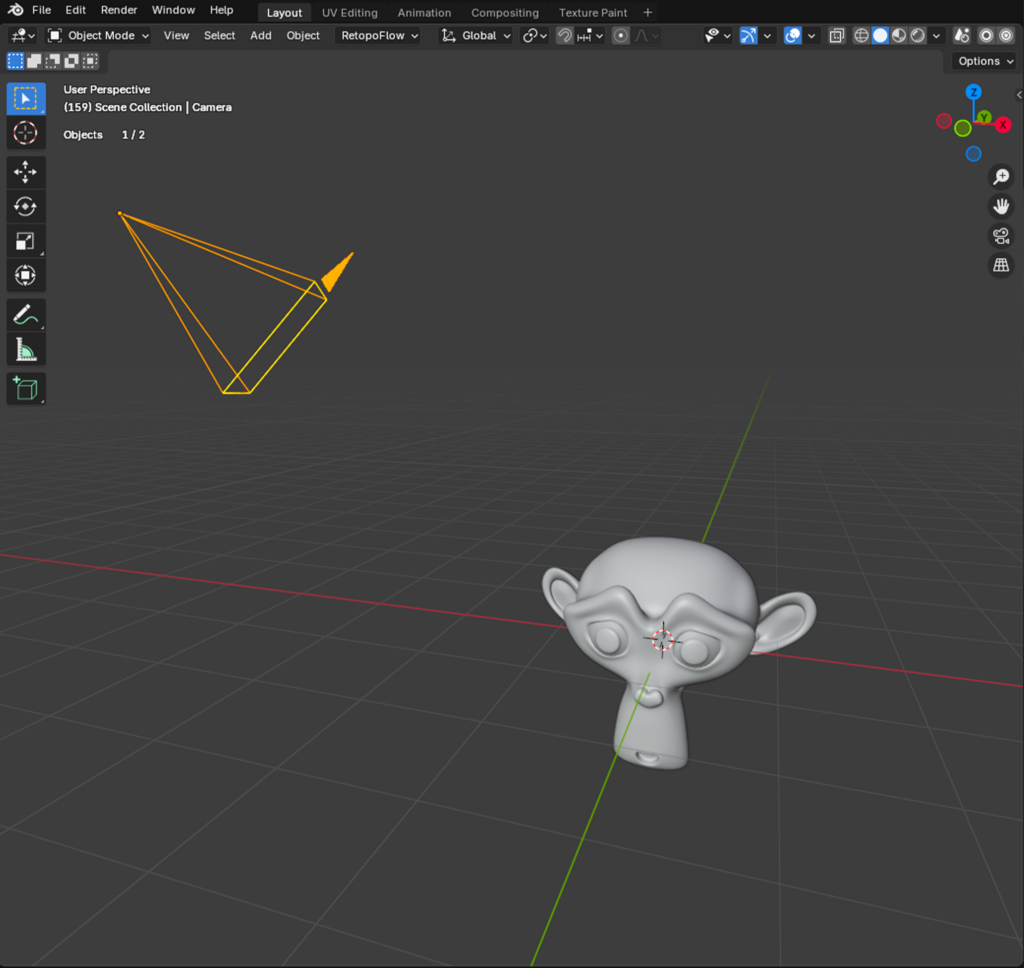

Setting Up Your Scene

Before applying a tracking setup, you’ll need a basic scene with a camera and an object to track.

  1. Add an Object to Track
    • Start by adding or selecting the object you want to track, such as a sphere, cube, or a custom 3D model.
    • Position the object at the desired location in your scene.
  2. Add a Camera
    • Go to Add > Camera to create a new camera.
    • Position and orient the camera to view the object. This will be the starting point of the camera’s animation.
The view keeper blender camera addon track to object constraint
How do i track an object with a camera in blender?

Using the Track To Constraint

The easiest way to make a camera follow an object is by using the Track To constraint. This ensures the camera remains focused on the target object regardless of its movement.

Step 1: Select the Camera

  • Click on the camera in the 3D Viewport or Outliner.

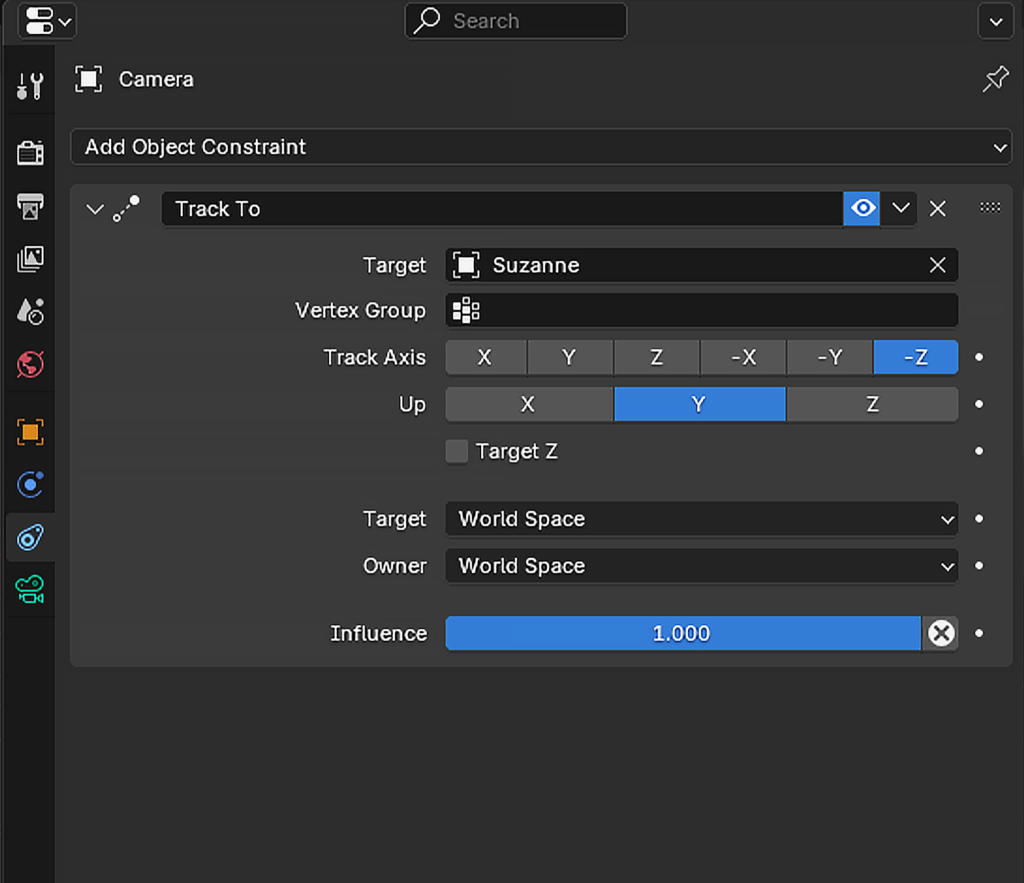

Step 2: Add a Track To Constraint

  • Open the Constraint Properties tab in the Properties panel (the chain-link icon).
  • Click Add Object Constraint and choose Track To from the list.

Step 3: Set the Target

  • In the Target field of the constraint, select the object you want the camera to track.
  • Adjust the axis settings:
    • To: Choose the axis that should point toward the object (e.g., -Z for most cameras).
    • Up: Define the camera’s up direction (usually Y).
The view keeper blender camera addon track to object constraint
How do i track an object with a camera in blender?

Refining the Camera Movement

1. Using the Follow Path Constraint

  • To create more dynamic shots, you can animate the camera along a predefined path:
    1. Add a curve to the scene (Add > Curve > Path).
    2. Select the camera, then add a Follow Path constraint.
    3. Set the curve as the Target in the constraint.
    4. Enable the Animate Path option to automatically keyframe the camera along the curve.

2. Combining Path and Tracking

  • You can combine the Track To constraint with the Follow Path constraint:
    • The camera will move along the path while staying focused on the target object.
    • Adjust the timing in the Object Data Properties of the curve under the Path Animation section.
The view keeper blender camera addon track to object constraint
How do i track an object with a camera in blender?

Keyframe Animation for Manual Tracking

If you need precise control over how the camera tracks the object, you can use manual keyframing:

  1. Insert Keyframes
    • Move the timeline to the starting frame.
    • Adjust the camera’s position and rotation to point at the object.
    • Press I and choose Location & Rotation to insert a keyframe.
  2. Advance the Timeline
    • Move the object and camera to their next positions.
    • Reorient the camera to maintain focus on the object and insert another keyframe.
  3. Use the Graph Editor
    • Open the Graph Editor to smooth the transitions between keyframes for natural camera motion.

Managing Multiple Cameras with The View Keeper

When working with multiple cameras in Blender, especially those tracking different objects or the same object from varied perspectives, The View Keeper plugin perfectly simplifies the process.

1. Set Up Individual Cameras

  • Add cameras to your scene as needed, setting their tracking targets using the Track To constraint.
  • For example, one camera might track a moving object, while another provides a wide shot tracking the same or a different object.

2. Store Camera Configurations

  • Open The View Keeper panel from the N sidebar.
  • For each camera, use Add New Camera to create a record in The View Keeper’s Camera List Table.
  • Configure each camera’s lens type, focal length, and tracking constraints. Use Refresh Record after adjustments to ensure settings are saved.

3. Switching Between Cameras

  • Using The View Keeper, you get to quickly toggle between stored camera views while maintaing the tracking of each camera. This is particularly useful for checking compositions, comparing shots and ensuring proper focus on the target objects.

4. Keyframe Camera Records for Animation

  • Navigate to the desired frame in the timeline.
  • Activate the appropriate camera record in The View Keeper panel.
  • Right-click on the selected record and choose Insert Keyframe from the context menu.
  • Repeat this for all cameras at the required frames to create a seamless transition between different camera shots.

5. Render with Alternative Rendering

  • Use The View Keeper’s Alternative Rendering feature to render images or animations from the keyframed camera records.
  • Ensure output settings are configured for each record and refreshed before rendering.
The view keeper blender camera addon track to object constraint camera tracking with the view keeper
How do i track an object with a camera in blender?

Additional Tips

  • Use Depth of Field (DoF):
    • In the Camera Properties, enable Depth of Field to blur the background and focus on the tracked object.
    • Set the focus distance to match the object’s position for a cinematic effect.
  • Optimize the Camera’s Focal Length:
    • Experiment with different focal lengths to adjust the field of view and emphasize the object’s importance.
  • Test Different Motion Styles:
    • Use constraints like Damped Track for smoother tracking movements.
    • Combine rotation and zoom animations for more dynamic shots.

Rendering the Animation

Once the camera tracking setup is complete:

  1. Set the Output Settings
    • In the Output Properties, configure the resolution, frame rate, and file format.
  2. Preview the Animation
    • Play back the animation in the timeline to ensure smooth tracking.
  3. Render the Animation
    • Use Ctrl+F12 to render the full animation. Blender will produce a sequence of frames showing the camera tracking the object.

Tracking an object with a camera in Blender is a straightforward yet powerful technique that adds professionalism to your animations. By mastering constraints, path animations, and manual keyframing, you can create versatile and cinematic shots that bring your 3D projects to life.
