Interactive Materials in Unreal Engine: How to Create Dynamic and Responsive Surfaces in Real Time

What are interactive materials in Unreal Engine?

Interactive materials in Unreal Engine dynamically alter their appearance or behavior during gameplay based on user input or game events, unlike static materials with fixed properties. These materials use parameters, such as color or texture, that update in real-time, creating immersive experiences. For example, a wall might change color when a player interacts with it, or a floor could ripple under footsteps. Epic’s documentation emphasizes their role in enhancing player engagement through responsive visuals. Applications range from displaying character damage to real-time architectural visualizations, offering endless creative possibilities. By integrating player actions or environmental changes, these materials make game worlds feel alive.

In practice, interactive materials are standard Unreal materials with configurable parameters instead of constants, modified via Blueprint scripts or code. Data like player input or timing feeds into these parameters at runtime, enabling instant visual updates. This approach combines art and logic, allowing developers to craft responsive environments. Unreal’s architecture supports efficient parameter adjustments, ensuring seamless integration with gameplay mechanics for a cohesive experience.

What is the difference between dynamic and interactive materials in Unreal Engine?

Dynamic materials in Unreal Engine refer to any material instances that can change during gameplay, using Dynamic Material Instances for runtime alterations. Interactive materials are a specific type of dynamic material that respond directly to player input or gameplay events, such as button presses or collisions. While all interactive materials are dynamic, not all dynamic materials are interactive; some change automatically, like a texture scrolling to simulate wind. The key distinction is the trigger: dynamic changes can occur for any reason, while interactive ones are driven by user or game interactions.

Both types merge 3D art with programming logic, enabling visuals to react to specific conditions. Developers use Unreal’s Dynamic Material Instance feature for both, adjusting parameters at runtime. For instance, a material pulsing over time is dynamic, but one changing on player action is interactive. This flexibility allows tailored visual responses, enhancing immersion through event-driven or scripted material updates.

To summarize:

1. Dynamic material: Material that can change during gameplay (runtime), which could be due to any reason (time, randomization, player action, etc.).These materials use Dynamic Material Instances. Parameters adjust on the fly. Changes can be automatic or triggered. Enables versatile runtime modifications.
2. Interactive material: A dynamic material specifically driven by interactions (player input or gameplay triggers).Responds to user or game events. Uses same Dynamic Material Instance feature. Focused on player-driven changes. Enhances interactive gameplay experiences.

How do you create an interactive material in Unreal Engine 5?

Here’s a high-level workflow:

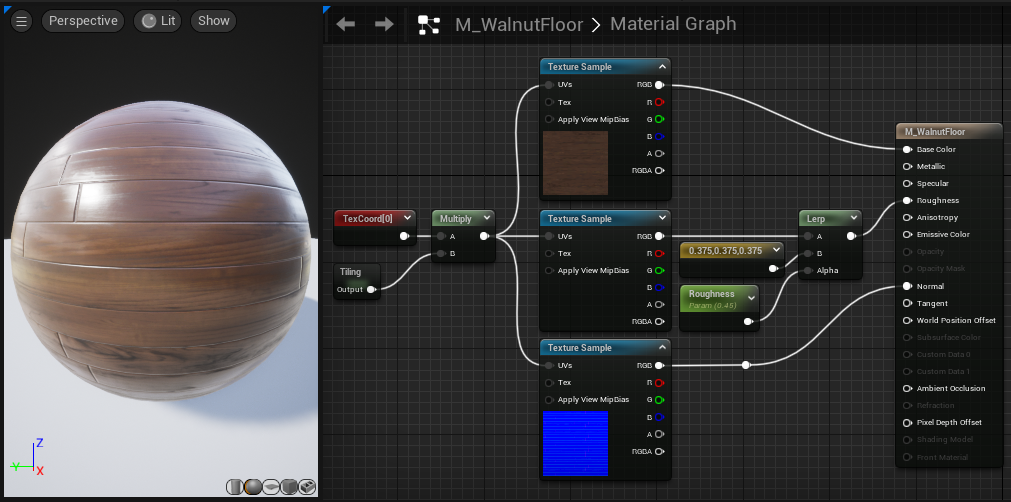

1. Design the Base Material with Parameters: In the Material Editor, create a new material (or use an existing one) and identify properties you want to change at runtime.Use Parameter nodes for adjustable attributes. For example, Scalar Parameter for “GlowIntensity.” Convert constants to parameters. Enables external control of properties.
2. Apply the Material to an Object: Assign this material to the mesh or actor in your level that you want to be interactive (e.g. a mesh in your scene or a component in a Blueprint).Apply material to a scene object. Set default parameter values via Material Instance. Ensures proper rendering initially. Prepares object for dynamic changes.
3. Create a Dynamic Material Instance at Runtime: In Blueprint, obtain a Dynamic Material Instance of the material.Use Create Dynamic Material Instance node. Target mesh’s material slot. Store result in a variable. Converts static material to editable instance.
4. Modify Parameters via Blueprint when needed: Now use Blueprint events to change the material’s parameters on the dynamic instance.Use Set Scalar/Vector Parameter Value nodes. Adjust parameters like “GlowIntensity” on events. Updates material instantly in-game. Links triggers to visuals.
5. Trigger changes through Gameplay Events: Tie the parameter changes to whatever interactive triggers you need.Use input or collision event nodes. For example, OnClicked sets color parameter. Compile and test triggers. Ensures material reacts to actions.

Creating an interactive material involves crafting a parameterized material and using a Dynamic Material Instance in Blueprint to adjust those parameters at runtime. This separates material design from gameplay-driven changes, enabling responsive, immersive visuals.

What nodes are used to make materials react to player input in UE5?

To make a material react to player input, you’ll typically use a combination of event nodes and material parameter nodes:

1. Event Nodes for Input/Interaction: Examples include OnClick, OnReleased, OnBeginOverlap, or input events like On Pressed (E).Detect player actions like clicks or key presses. Trigger volumes fire overlap events. Initiate material change logic. Essential for capturing interactions.
2. Create Dynamic Material Instance: Creates a runtime instance of a material on a mesh component.Call on BeginPlay for parameter adjustments. Specify material index and base material. Returns Material Instance Dynamic (MID). Enables runtime modifications.
3. Set Scalar Parameter Value (on Materials): Changes a Scalar Parameter in a material instance via Blueprint.Adjust single-value properties like roughness. Provide parameter name and float value. Updates material instantly. Ideal for intensity or blend factors.
4. Set Vector Parameter Value: Changes Vector Parameters, often for colors or 3D vectors.Modify color parameters like “BaseColor.” Feed new color on input events. Updates material appearance seamlessly. Used for color-based interactions.
5. Set Texture Parameter Value: Changes a Texture Parameter to swap textures at runtime.Switch textures for screens or decals. Specify new texture on input. Updates material visuals dynamically. Enhances interactive texture effects.
6. Material Parameter Collection Nodes: Update parameters in a global Material Parameter Collection (MPC).Use Set Scalar/Vector Parameter Value (Collection). Affect multiple materials simultaneously. Ideal for global effects. Ensures synchronized updates.
7. Timeline and Lerp (optional for animation): Animates material changes smoothly over time.Use Timeline to interpolate parameter values. Call Set Parameter nodes on updates. Lerp blends values or colors. Creates gradual, animated effects.

Blueprint event nodes detect interactions, while material instance nodes like Create Dynamic Material Instance and Set Parameter nodes adjust the material’s appearance, enabling reactive visuals in UE5.

How do I use parameters and Material Instances for interaction in UE?

Material parameters and Material Instances are the foundation of making interactive materials. To use them for interaction:

1. Define Parameters in the Material: Replace values you want to tweak with parameters in the Material Editor.Use Vector Parameter for “InteractiveColor.” Add Scalar Parameter for “EmissiveStrength.” Parameters act as adjustable variables. Enables runtime material changes.
2. Material Instance Constant (MIC) for defaults (optional): Create a Material Instance for preset parameter values.Set default color or brightness variants. MICs are static, editor-only. Useful for predefined variations. Prepares material for dynamic use.
3. Material Instance Dynamic (MID) for runtime changes: Create a MID in Blueprint or C++ for gameplay changes.Generate MID from base material or MIC. Store for parameter adjustments. Call Set Parameter functions to update. Allows real-time modifications.
4. Using the parameters in Blueprint: Call Set Parameter nodes to adjust MID parameters.Use Set Scalar/Vector Parameter Value nodes. Match parameter names and types. Updates material instantly on objects. Links gameplay to visuals.
5. Multiple objects and instances: Decide if objects need independent or synchronized changes.Assign unique MIDs for independent behavior. Use single MID or MPC for shared changes. Loops create MIDs for multiple objects. Matches gameplay needs.
6. Example – changing color on interaction: Make a sphere flash red when clicked.Use Vector Parameter for sphere’s color. Create MID in BeginPlay, store it. Set color to red on OnClicked. Revert after delay or release.
7. Using parameters is very flexible: Drive parameters with continuous data like health.Bind “DamageLevel” to health percentage. Update parameter every frame. Material shows increasing damage. Enhances dynamic visual feedback.

Material Instances allow reuse of a base material, with Dynamic Material Instances enabling interactive parameter changes during gameplay, driven by Blueprint logic for responsive visuals.

How do I use Blueprint to control material properties in real time?

Blueprint provides an intuitive way to control material properties without C++ coding. It leverages Dynamic Material Instances and event-driven logic to adjust parameters in real-time, creating responsive visuals. By accessing materials on actors, Blueprints can trigger changes based on player actions or game states. For example, a lamp’s brightness could increase when a player approaches, using a trigger volume to detect proximity. The process involves setting up a material reference, deciding when changes occur, and applying parameter updates. Blueprints also support smooth animations via Timeline nodes, enhancing visual transitions.

This approach is powerful for non-programmers, as it uses visual scripting to bridge game logic and visuals. Materials remain unaware of game events, but Blueprints feed them parameters to react accordingly. Performance considerations are minimal for parameter changes, though heavy Tick usage should be optimized. Many Unreal projects rely solely on Blueprints for interactive material effects, making environments feel dynamic and immersive.

Here’s how you can use Blueprints to manipulate materials in real time:

1. Access the Material in Blueprint: Get a reference to the material on an Actor’s mesh or component.Drag in the mesh component in Blueprint. Call Create Dynamic Material Instance. Store the MID in a variable. Provides handle for parameter control.
2. Respond to Events or Tick: Decide when to change the material using events or Tick.Use event nodes like Custom Event or collision. Event Tick for continuous updates. Optimize Tick for performance. Triggers material property changes.
3. Use Set Parameter nodes to change values: Call Set Scalar or Vector Parameter Value on the MID.Adjust parameters like “OutlineThickness” on triggers. Update material appearance instantly. Reverse changes when conditions end. Creates responsive visual effects.
4. Blueprint Timeline for animations: Use Timeline for smooth material property interpolation.Create Timeline to ramp values over time. Update parameters on Timeline ticks. Scale output for parameter input. Enables gradual, animated transitions.
5. Blueprint Control Example: Brighten or dim a material’s emissive on key presses.Create MID for target objects. Set “EmissivePower” on B/D key presses. Reset on key release. Implements input-driven material control.
6. Blueprint vs Material logic: Use Blueprint for game-specific or conditional changes.Materials handle simple behaviors internally. Blueprint bridges game events to visuals. Feeds parameters for input-driven effects. Ensures context-aware updates.

To control material properties in real time with Blueprint, you get a dynamic instance, use events or Tick to trigger changes, and apply Set Parameter nodes for code-free interactivity.

How do I use material parameter collections for global interactivity?

Material Parameter Collections (MPCs) in Unreal Engine are assets that broadcast parameters to multiple materials, ideal for global effects like time of day or weather. They centralize parameter management, ensuring synchronized updates across materials. For instance, a single MPC parameter can adjust snow coverage on landscapes and rocks simultaneously. Blueprints update these parameters to drive interactive effects, such as toggling night visuals or simulating snow accumulation. MPCs are efficient, updating a shared buffer rather than individual instances, making them suitable for large-scale changes.

Here’s how to use them:

1. Create a Material Parameter Collection: Create a collection asset in the Content Browser for global parameters.Define Scalar or Vector parameters like “SnowAmount.” Supports up to 1024 parameters per type. Acts as global variables for materials. Centralizes parameter management.
2. Use the Collection in Materials: Add Collection Parameter nodes in materials to reference MPC parameters.Reference “SnowAmount” to blend textures. Multiple materials read same value. Updates all materials when parameter changes. Ensures synchronized visual effects.
3. Update the Collection via Blueprint: Modify collection values using Blueprint nodes.Use Set Scalar/Vector Parameter Value (Collection). Update parameters like “SnowAmount” on events. Affects all referencing materials instantly. Drives global interactive effects.
4. Global effects examples: Use MPCs for coordinated effects like foliage or water reactions.Set player position or sun angle in MPC. Materials bend grass or tint water. Updates multiple materials cohesively. Creates immersive, unified environments.
5. Efficiency: MPCs are efficient for updating many materials simultaneously.Update one value for all materials. Avoids iterating over individual instances. Uses uniform buffer for shader updates. Ideal for large-scale effects.
6. Using two collections: Materials can reference up to two MPCs for varied effects.One for global values like time. Another for level-specific parameters. Organizes parameters logically. Enhances flexibility in material control.

To use Material Parameter Collections for interactivity: create a collection asset with needed parameters, hook those into materials via Collection Parameter nodes, and use Blueprint to change values during gameplay. This enables synchronized, global material changes efficiently.

How do I make a material change color when clicked in Unreal Engine?

Changing a material’s color on click is a fundamental interactive task in Unreal Engine, achievable through Blueprints without C++ coding. It involves setting up a material with a color parameter, applying it to an object, and using Blueprint to detect clicks and update the material. The process ensures instant visual feedback, such as a mesh turning red when clicked, and supports temporary or toggling effects. Collision settings and input enabling are crucial for click detection, ensuring the interaction feels seamless.

Here’s a step-by-step approach to achieve this:

1. Ensure the material has a color parameter: The Base Color should be a Vector Parameter like “ColorParam.”Set up material with adjustable color parameter. Convert Base Color to Vector Parameter. Enables runtime color changes. Prepares material for interaction.
2. Apply the material to the object: Assign this material to the mesh or UI element.Apply material to Static Mesh Actor. Ensure correct material slot assignment. Verify rendering in level. Sets up object for clicking.
3. Blueprint setup for click event: Implement interaction using the OnClicked event.Use OnClicked event on Actor in Blueprint. Alternatively, use Line Trace for hits. Enable input for click detection. Captures player click interactions.
4. Create and store Dynamic Material Instance: Create a MID on BeginPlay for the mesh’s material.Use Create Dynamic Material Instance node. Target mesh’s material index. Store MID in a variable. Enables runtime parameter adjustments.
5. Change color on click: Use Set Vector Parameter Value in the OnClicked event.Set “ColorParam” to new color like Red. Update material instantly on click. Optionally revert after delay. Creates immediate visual feedback.
6. Optional – Visual feedback for selection: Change color only while clicked for highlighting.Set color on OnPressed, revert on OnReleased. Use Gate node for state control. Enhances interactive user experience. Provides temporary visual cues.
7. Consider multiple clicks or toggling: Toggle color on each click using a state variable.Store boolean to track color state. Switch colors based on boolean value. Update material on each click. Enables cyclic color changes.

With this setup, clicking the object changes its material color instantly using a parameterized material, Dynamic Material Instance, and Blueprint-driven updates. Ensure input is enabled and collision responds to clicks for reliable interaction.

Can I create touch-responsive materials for VR or AR in UE5?

Yes, you can absolutely create touch-responsive materials in VR (Virtual Reality) or AR (Augmented Reality) projects. The approach is quite similar to standard gameplay interactions, with some differences in how input is detected:

1. VR (Virtual Reality): In VR, “touch” usually comes from motion controller inputs or hand presence.Detect hand overlaps with trigger volumes. Use OnComponentBeginOverlap for touch events. Update material parameters like “Glow” on touch. Creates responsive VR material effects.
2. AR (Augmented Reality): In mobile AR, the “touch” is usually a screen tap corresponding to a 3D point.Perform Line Trace on tap to hit objects. Update material parameters on hit. Cycle colors or textures via parameters. Enables AR interactive visuals.
3. Haptics/feedback (optional): Provide haptic feedback or sound with material changes.Play sound or vibration on touch events. Enhances user experience in VR/AR. Complements material visual changes. Improves immersion without affecting material.
4. Performance considerations: VR demands high performance, but material parameter changes are inexpensive.Updating scalars or vectors is low-cost. Limit material variations to reduce draw calls. Use MPCs for shared states. Ensures smooth VR/AR performance.
5. Example: A VR gallery where touching a painting highlights its frame.Use overlap sphere to detect hand proximity. Set “HighlightAmount” parameter on touch. Revert parameter when hand leaves. Creates glowing edge effect.

VR/AR interactive materials use the same dynamic material workflow, triggered by VR/AR-specific inputs like controller overlaps or screen taps, ensuring responsive visuals across platforms.

How do I animate materials based on trigger volumes or collisions?

Animating materials in response to trigger volumes or collisions uses gameplay events to drive parameter changes, often with Blueprint timelines for smooth animations. Trigger volumes detect actor entry or exit, initiating effects like pulsing floor materials. Collisions, such as projectile hits, trigger animations like flashes or ripples. Blueprints provide precise control, coordinating material changes with other events like sounds. This approach creates responsive environments, from glowing doors to scorched surfaces, enhancing immersion.

Here’s a breakdown of how to achieve this:

1. Use Trigger Volumes to start/stop effects: A trigger volume detects when actors enter or leave.Place Box or Sphere Trigger in level. Bind OnActorBeginOverlap for material changes. Start effects like pulsing on entry. Initiates environment-responsive animations.
2. Blueprint Timeline for animation: Use a Timeline node to drive smooth material animations.Create looping Timeline for pulsing values. Update “Glow” parameter on Timeline ticks. Start on BeginOverlap, stop on EndOverlap. Ensures animated material transitions.
3. Collision events (impacts): Use Event Hit for collisions like projectile impacts.Detect hits on actors or components. Trigger flash or ripple via Timeline. Set “HitFlash” parameter for quick effects. Creates impact-driven material responses.
4. Animating UVs or panners via Blueprint: Control UV offsets for scrolling textures on triggers.Expose UV offset as a parameter. Animate via Timeline on trigger events. Scroll textures like loading bars. Enhances dynamic material visuals.
5. Multiple materials or multiple parameters: Animate multiple materials using a Material Parameter Collection.Use MPC parameter like “CrystalPulse.” Update via Timeline on trigger overlap. Affects all referencing materials. Coordinates multi-material animations.
6. End overlap or collision over events: Handle the end of triggers for resetting effects.Reverse Timeline on OnActorEndOverlap. Stop animations or reset parameters. Ensures natural effect dissipation. Maintains clean visual transitions.

Use triggers or collisions to detect events and Blueprint timelines to animate material parameters, creating responsive effects like glowing doors or scorched surfaces.

How can materials respond to environmental changes like time of day or weather?

Materials can respond to environmental variables like time of day or weather by using global parameters updated by game systems. Material Parameter Collections (MPCs) are ideal, enabling synchronized updates across materials, such as snow blending on landscapes. Blueprints manage these parameters, adjusting for day-night cycles or weather changes. For example, a “Wetness” parameter can make surfaces reflective during rain. Direct material logic using Time nodes is possible but less precise. A central controller, like an EnvironmentManager Blueprint, ensures consistent updates, making the world feel dynamic and cohesive.

Here’s how to achieve this:

1. Material Parameter Collection for global environment values: Use an MPC for parameters like “TimeOfDay” or “RainAmount.”Define parameters for weather or time. Reference in materials for texture blending. Update via Blueprint for global sync. Coordinates environmental material changes.
2. Day/Night cycle Blueprint: Update material parameters based on sun position or time.Set “SunAngle” in MPC as sun moves. Adjust water or foliage colors accordingly. Drive gradients for sunset hues. Enhances time-based visual shifts.
3. Weather system: Route weather states like rain into material parameters.Increase “Wetness” parameter on rain start. Transition materials to reflective looks. Interpolate over time for realism. Simulates dynamic weather effects.
4. Sky atmosphere and lighting information: Use sun direction or color in materials.Set “SunLightColor” parameter in MPC. Adjust material highlights based on sun angle. Apply effects at low sun angles. Mimics realistic lighting responses.
5. Temperature or other environment factors: Use parameters like “Temperature” for material effects.Affect materials with heat haze shaders. Change colors in extreme conditions. Adjust grass waving with “WindStrength.” Adds varied environmental interactions.
6. Direct Material Logic (Time node): Use Time node for continuous material cycles.Create sine wave for slow color changes. Align with game time for accuracy. Feed controlled parameters for precision. Simplifies basic time-driven effects.
7. Example – day/night light switch: Lamps turn on at night via an MPC parameter.Set “NightTime” to control emissive intensity. Update at 18:00 to turn lamps on. Revert at 6:00 for day. Synchronizes multiple lamp materials.
8. Another example – fog or sandstorm: Materials fade details in heavy fog.Use “AirQuality” parameter for color shifts. Adjust saturation based on fog intensity. Apply to distant materials. Simulates atmospheric environmental effects.

Materials respond to time of day or weather by reading global parameters updated by game systems, commonly using MPCs for efficient, dynamic adjustments.

Can I create interactive holograms or sci-fi panels using UE5 materials?

Unreal Engine excels at creating interactive holograms and sci-fi panels, combining advanced material effects with Blueprint-driven interactions. Hologram materials use transparency, emissive glow, and noise for a projected look, while Blueprints handle player inputs like button presses. Parameters control brightness or flicker, enabling dynamic responses. UE5’s bloom enhances glowing effects, and Nanite limitations are avoided by using regular meshes. This approach mimics iconic sci-fi displays, offering flexibility for creative, immersive interfaces.

Here’s how you can approach it:

1. Design the Hologram Material: Create a material with transparency, emissive glow, and noise effects.Use Translucent or Additive blend mode. Add Fresnel for edge glow, noise for scanlines. Include Depth Fade for soft edges. Achieves holographic visual style.
2. Interactive Elements in the Material: Expose parameters for interactive control like “HoloIntensity.”Control brightness or flicker via parameters. Use scalar for on/off states. Swap textures for content changes. Enables dynamic hologram behavior.
3. Blueprint to Control the Hologram: Use Blueprint to update material parameters on interaction.Detect inputs like button presses or VR traces. Set “HoloIntensity” on activation. Animate parameters with timelines for effects. Drives interactive responses.
4. Emissive and Bloom: Ensure holograms glow using UE5’s bloom post-processing.Set high emissive color for bloom. Control emissive strength via parameter. Enhance glow on interaction. Creates convincing holographic visuals.
5. Hologram Flicker or Distortion: Simulate flicker with parameter-driven effects.Use “GlitchPhase” to shift UVs or opacity. Toggle parameter via Blueprint timer. Create random jitter for realism. Sells sci-fi hologram aesthetic.
6. Examples of interactive behavior:
   • A holographic map that the player can turn on/off: Toggle material transparency on input.Detect console press to toggle visibility. Animate UVs for boot-up effect. Set “HoloIntensity” for fade-in. Creates interactive map display.
   • A sci-fi panel with buttons: Change display on button presses.Cycle textures or colors via parameters. Light up buttons with separate materials. Update “ScreenMode” on input. Simulates menu navigation.
   • An interactive hologram character: Fade in NPC hologram on interaction.Animate “Opacity” from 0 to 1. Flicker opacity on disruption. Use skeletal mesh for animations. Enhances immersive storytelling.
7. Nanite Consideration: Translucent materials aren’t supported on Nanite meshes.Use regular static mesh for holograms. Avoid Nanite for transparency effects. Ensure compatibility with material setup. Maintains rendering accuracy.
8. Material Functions & Instances: Create Material Instances for hologram variants.Tweak parameters per instance for variety. Use MIDs for runtime changes. Optionally use MPC for global control. Streamlines hologram management.

Making interactive holograms or sci-fi panels combines visual shader setup with Blueprint-driven parameter changes, leveraging UE5’s rendering for immersive sci-fi visuals.

How do I make a floor react to footsteps using interactive materials?

Making a floor react to footsteps enhances immersion, with approaches like decals, dynamic materials, or Render Targets. Decals are simple, spawning footprint textures on impact, while dynamic materials use MPCs to show ripples for recent steps. Render Targets allow persistent effects like snow tracks, drawing footprints onto a texture. Physical materials trigger complementary particle effects, and emissive tiles light up on steps. Each method varies in complexity, from straightforward decals to advanced Render Target setups, tailored to the desired visual fidelity.

There are multiple ways to have floor materials react to footsteps:

1. Decals for Footprints: Spawn decals or mesh footprints at footstep locations.Detect foot impacts via animation notify. Spawn Decal Actor with footprint texture. Blend for wet or dusty effects. Simplifies footprint visuals.
2. Dynamic Material with Position-Based Effects: Use MPC to broadcast footstep positions.Store recent footstep locations in MPC. Material creates ripples based on distance. Update positions and fade effects. Limits to few footsteps.
3. Render Target for accumulation: Draw footprints onto a Render Target texture.Paint ripples or footprints on Render Target. Material samples for color or normals. Supports unlimited footprints within resolution. Ideal for persistent effects.
4. Physical Material-based Effects: Trigger visual effects based on surface physical material.Use footstep events for particle spawns. Spawn dust or splashes on material type. Complements material effects with particles. Enhances environmental feedback.
5. Emissive footprints/light-up tiles: Light up floor sections on footstep overlaps.Divide floor into tiles with MIDs. Set emissive parameter on overlap. Fade out after timer. Creates glowing, interactive panels.
6. Ripple effect example: Create ripples in water using decals or Render Target.Draw ripple texture on Render Target per step. Material adds to normal map. Alternatively, spawn ripple decals. Achieves dynamic water visuals.

So, choose the method based on the fidelity you need:

1. Footprints in snow/mud: likely a decal or render target draw.Use decals for temporary marks. Render Target for deep snow tracks. Blend height for persistent effects. Matches realistic terrain changes.
2. Glow panels: per-tile blueprint with material instance changes.Assign MIDs per tile for emissive control. Trigger on overlaps for lighting. Fade out via timers. Creates puzzle-like interactions.
3. Ripples: decals or render target for continuous.Use short-lived decals for simple ripples. Render Target for ongoing effects. Combine with Niagara for particles. Enhances water or liquid visuals.

Decals, Blueprint-driven parameters, or Render Targets enable floor materials to react to footsteps, creating immersive effects like footprints or glowing tiles, with cleanup to avoid clutter.

How do you link particle effects with interactive materials in UE5?

Here are a couple of scenarios and how to achieve them:

1. Particles driving material changes (impact effects): To do this, you’d typically use Blueprint or events as the bridge.In Niagara, set up an Event Handler to detect particle collisions, like a spark hitting a shield. Send the collision’s hit location to Blueprint via a Niagara component event. Blueprint updates the shield’s material parameters, such as “ShieldHitLocation” and “ShieldHitStrength,” to create a ripple effect. The ripple fades by lerping “ShieldHitStrength” back to 0, synchronizing the particle and material visuals.
2. Materials influencing particles (shared parameters): A good method is to use a Niagara Parameter Collection, which is analogous to Material Parameter Collection but for Niagara.Create a Niagara Parameter Collection linked to a Material Parameter Collection for shared values like “GlobalWindStrength.” Update this parameter in Blueprint to adjust both a material’s glow and a Niagara system’s particle spawn rate. For example, a magic orb’s material and surrounding dust particles respond simultaneously to the same parameter. This ensures consistent visual behavior across both systems during gameplay.
3. Dynamic Material Parameters in Niagara (per particle -> material): Niagara has Dynamic Material Parameter modules.Use Dynamic Material Parameter modules to assign values like a “ripple center” to each particle’s material. Apply this to instanced meshes or beams, such as projectile trails with dynamic scroll speeds. The material updates based on particle-specific data, like velocity or position. This approach is ideal for self-contained effects where particles drive their own material visuals.
4. Particle systems triggered by material state: The linking can also be logical: a material might reach a certain state and trigger a particle effect.Monitor a material’s “CoreIntensity” parameter in Blueprint, checking if it exceeds 0.9. When the threshold is met, spawn a Niagara system of sparks around the object, like a reactor core. This simulates a material state triggering a particle effect indirectly. The Blueprint logic ensures the particle emission aligns with the material’s visual state.
5. Example – Fire that lights objects: You could detect nearby objects in the particle system or via overlap, and then set their material parameters.Use Niagara’s overlap detection to identify nearby objects and trigger a glowing material effect to simulate heat. When an object’s material parameter “OnFire” is set to true, Blueprint spawns a Niagara “fire” particle system on that object. This creates a cohesive burning effect combining particles and material changes. It enhances environmental interactions, like objects catching fire dynamically.
6. Keep it simple with shared variables: Often, the easiest way to “link” visual effects is to have them share some driving variable.Define a “ChargeLevel” float to control a teleporter’s material emissive intensity and Niagara particle spawn rate. Increment “ChargeLevel” in Blueprint as the teleporter charges, updating both systems each tick. The material brightens while particles intensify, creating a unified charging effect. This method simplifies synchronization by relying on a single shared variable.

Linking particle effects and materials uses Blueprint events or shared parameter collections, creating cohesive effects like synchronized shockwaves or impact-triggered visuals.

What performance impact do interactive materials have in Unreal Engine projects?

Here are a few considerations to keep performance optimal:

1. Use Dynamic Material Instances correctly: The biggest mistake that can hurt performance is repeatedly creating new material instances instead of reusing them.Create Dynamic Material Instances (MIDs) once at initialization and store them for reuse throughout the project. Reusing MIDs for parameter updates avoids the overhead of instance creation, which can accumulate if done per frame. Changing parameters on an existing MID is nearly as fast as using static material instances. This approach prevents memory leaks and ensures high performance during runtime.
2. Material Instruction Count: Interactive materials themselves are still just materials, so their rendering cost depends on the complexity of the shader.Design shaders with simple logic, using linear interpolation or static switches to manage state changes efficiently. Avoid complex branching or heavy computations that execute every frame, as they increase shader costs unnecessarily. Parameters add minimal overhead, functioning as shader uniforms with low impact. This keeps the rendering cost comparable to non-interactive materials, maintaining efficiency.
3. Many material instances vs Material Parameter Collection: Doing 100 separate SetParameter calls per frame could have some CPU overhead.Use Material Parameter Collections (MPCs) to update a single value that affects all referencing materials simultaneously. This is far more efficient than individual SetParameter calls for large numbers of objects, reducing CPU load. MPCs are ideal for global effects like environmental lighting or tint changes. They streamline performance when synchronizing many materials in complex scenes.
4. Draw calls and instancing: Each unique material instance generally results in a separate draw call for an object.Unique parameter values on material instances prevent objects from being batched into a single instanced draw call. Use PerInstanceCustomData with instanced static meshes to optimize rendering where possible. This behavior mirrors static material instances and is expected for per-object customization. Careful management of draw calls ensures rendering efficiency in scenes with many unique materials.
5. Frequency of updates: Setting a material parameter is fine even every frame on a few objects.Restrict updates to hundreds of materials per frame to avoid significant CPU costs, especially in Blueprint-heavy loops. For performance-critical scenarios, implement bulk updates in C++ to reduce overhead. Typical use cases, such as updating a dozen materials per event or tick, are generally performant. This approach maintains smooth performance without excessive processing demands.
6. Use of Timeline vs Tick: Using a Timeline node is better than doing it in Tick constantly for the entire game.Animate material parameters with Timeline nodes, which run only during specific effect durations, like fades or pulses. Avoid constant Tick updates for effects that don’t require continuous adjustment, reducing CPU usage. Timelines are efficient for event-driven animations compared to perpetual Tick-based updates. This optimizes performance for temporary or triggered material effects.
7. Material complexity features: Some interactive effects might tempt use of expensive material features.Avoid costly features like SceneCapture2D or high-resolution render targets, which add significant rendering overhead for effects like dynamic wetness. Evaluate complex features individually, as their performance impact stems from the technique, not interactivity itself. Simple parameter changes, such as color or emissive adjustments, have negligible costs. Prioritize lightweight techniques to maintain performance in interactive material designs.
8. Garbage Collection (if misused): If one were to spawn dynamic material instances and not reference them, they’d be garbage collected eventually.Create only one MID per material-object combination to minimize memory usage and avoid unnecessary garbage collection. Spawning thousands of unreferenced instances can cause memory spikes or performance hitches. Each MID’s memory footprint is small, comparable to static instances with minor dynamic overhead. Proper instance management ensures system stability and low memory consumption.
9. Nanite and interactivity: If using Nanite, be mindful that certain interactive features like WPO can reduce performance or even break Nanite’s efficiency.Avoid World Position Offset (WPO) or masked transparency on Nanite meshes, as they disrupt Nanite’s optimized rendering pipeline. These features may increase cluster counts or force fallback to non-Nanite meshes, negating performance benefits. Limit vertex animations and use Nanite for appearance-based changes like color swaps. This preserves Nanite’s efficiency for high-detail geometry rendering.

Interactive materials are performant if MIDs are reused, MPCs handle bulk updates, and shaders remain simple, supporting extensive dynamic effects with negligible impact.

Can I use interactive materials for UI elements in 3D space?

Yes, you can use interactive materials for UI elements in 3D space, although there are a couple of ways to interpret this:

1. 3D Widgets vs Materials: Unreal has a feature called Widget Components, which allow you to render a UMG UI widget onto a surface in 3D.Widget Components simplify complex UI elements like buttons or text entry by handling input natively. They are ideal for interactive 3D interfaces requiring user interaction, such as menus or control panels. Materials are better suited for aesthetic or environmental UI, like holographic displays or progress indicators. This approach balances functionality with visual integration for immersive 3D UI designs.
2. Materials as UI (simple interactions): If the UI element is something like a progress bar, doing it with a material is fine.Update a “HealthPct” parameter to display a dynamic 3D health bar above an enemy’s head in world space. Use line traces to detect player clicks or focus for interactive responses, like highlighting the bar. Toggle material parameters to visually indicate when the player targets the UI element. This method creates immersive in-world feedback that responds to game state changes seamlessly.
3. Using materials in UMG: A hybrid approach: UMG allows you to use materials as Brush images.Apply dynamic materials with effects like animated masks or gradients to UMG widgets for enhanced visuals. This approach is effective for stylized or animated UI elements in 3D world space, like sci-fi interfaces. It combines traditional UI functionality with dynamic shader effects. Materials in UMG offer flexibility for creating visually striking 3D UI components.
4. Example – Interactive 3D Button: Suppose you want a futuristic door panel with buttons that light up when you press them.Define material parameters like “Pressed” or “Hovered” to control button appearance, such as emissive intensity or color. Detect clicks using OnClicked events on mesh components or line traces to identify hit regions. Update the button’s material to reflect interaction, like glowing when pressed. This creates an interactive environmental UI integrated into the game world, common in VR or sci-fi settings.
5. 3D HUD or floating icons: Often these are done with Billboard materials or simple planes that always face the camera.Animate material parameters to flash or change objective icons based on player proximity or mission state. Update parameters via Blueprint to reflect active objectives or interactions, like glowing when nearby. Oscillate parameters to create dynamic visual effects, such as pulsing icons. This conveys real-time information in the 3D world, enhancing player immersion and awareness.
6. Advantages of materials for stylized UI: Using materials for UI can achieve effects that are harder with standard UI widgets.Create glows, distortions, or world-lighting effects that integrate seamlessly with the game environment. Materials on meshes receive realistic lighting, unlike unlit widget components, enhancing visual consistency. They are ideal for holographic or diegetic UI that feels part of the world. This approach elevates immersion in 3D spaces with visually cohesive UI elements.
7. Input considerations: If your 3D material UI needs actual clickable input, you will have to handle the input manually.Use line traces from the player’s view or Widget Interaction components to detect clicks in 3D space. Split interactive areas into separate mesh components for easier hit detection, each with its own material instance. Advanced UV hit detection via FindCollisionUV enables precise input mapping on complex surfaces. This ensures robust and accurate input handling for material-based UI interactions.
8. UI in AR: In AR, placing interactive UI in the world often uses either widget components or materials on planes.Use materials for simple floating labels or displays that don’t require user input, like informational overlays. Widget components handle touch input routing for interactive elements, such as buttons or menus. Choose based on whether the UI needs tap-based interaction or only visual updates. This supports flexible AR-specific UI designs tailored to the application’s interaction requirements.

Interactive materials work for 3D UI like holographic displays or in-world feedback, using dynamic instances and Blueprint logic, with widgets for complex inputs.

How do I use material parameter collections for global interactivity?

Using them involves a few key steps:

1. Create a Material Parameter Collection asset in your content browser.Create a Material Parameter Collection (MPC) asset in the content browser, defining Scalar or Vector parameters like “GlobalTintColor” or “AlarmLevel.” These parameters centralize control for global visual effects across multiple materials in the project. The MPC asset is easily accessible for referencing in materials and Blueprints. This step establishes the foundation for synchronized material updates driven by gameplay or environmental logic.
2. Referencing in Materials: Open any material that needs to respond globally and add a Collection Parameter node.In the material editor, add a Collection Parameter node and select the MPC asset and a parameter, such as “AlarmLevel.” Use the parameter to multiply albedo or drive emissive intensity, creating effects like glowing emergency lights. This ensures all materials referencing the MPC update uniformly when the parameter changes. It enables seamless global visual changes across the entire scene with minimal setup.
3. Updating via Blueprint: In your gameplay logic, call the node Set Scalar Parameter Value (Collection) or Set Vector Parameter Value (Collection).In Blueprint, set “AlarmLevel” to 1 when an alarm is triggered, instantly updating all materials referencing the MPC to reflect the new state. Revert to 0 when the alarm is deactivated, restoring normal visuals across all affected materials. This single Blueprint call efficiently propagates changes to potentially hundreds of materials. It simplifies dynamic updates for global interactivity in gameplay scenarios like alerts or environmental shifts.
4. When to use MPC: Use collections when you have a value that many disparate materials need to know about.MPCs are ideal for global effects like time-of-day transitions, underwater modes, or damage tints that affect multiple materials. They eliminate the need to update individual material instances manually, saving significant effort. This approach enhances performance by streamlining bulk changes across many objects. It’s designed for synchronized, scene-wide visual adjustments driven by game state.
5. Global toggles vs per-object: Note that MPC affects all materials that reference it.Use Dynamic Material Instances (MIDs) for unique per-object interactions, as MPCs are designed for global synchronization. MPCs ensure consistent updates across all referencing materials, maintaining visual uniformity. Parameters are read-only from within materials, modifiable only by Blueprint or C++ code. This enforces global consistency while allowing per-object flexibility through other methods.
6. Simultaneous use with Blueprints and Niagara: The same collection can drive visual effects outside materials too.Niagara systems access MPCs via Niagara Parameter Collections, syncing effects like particle behaviors with parameters like “TimeOfDay.” This ensures particles react consistently with material changes, such as matching lighting conditions. It extends global control to non-material visual elements, creating cohesive scene-wide effects. The integration streamlines management of complex, synchronized visual systems.
7. Example of global interactivity using MPC: Let’s say you want to implement a simple day/night cycle affecting materials.Create a “SkyBlend” scalar parameter (0 = day, 1 = night) in the MPC to control color shifts. Update “SkyBlend” gradually via a Level Blueprint to simulate time passing over minutes. All linked materials, such as sky, landscape, or building textures, transition smoothly from day to night colors. This simplifies global environmental effects with a single parameter, reducing manual material adjustments.

MPCs act as global shader variables, optimized for synchronized material updates like day/night cycles or environmental effects, controlled via single Blueprint calls.

Are interactive materials compatible with Nanite in Unreal Engine 5?

Here are important limitations to be aware of:

1. Material parameter changes (color/texture): Simply changing material parameters like colors, scalar values, or swapping textures at runtime has no issue with Nanite.Update colors, roughness, or textures on Nanite meshes without affecting their geometry rendering pipeline. Shader uniforms adjust seamlessly, supporting interactive effects like a statue glowing when clicked. This is fully compatible with Nanite’s high-detail rendering capabilities. It ensures dynamic appearance changes work efficiently on complex meshes without performance penalties.
2. World Position Offset (WPO) and deformation: Nanite in UE5.0 did not support World Position Offset in materials.UE5.1 and later offer limited WPO support, subdividing meshes into clusters to accommodate vertex movement. Heavy deformations, like a tree bending in wind, increase cluster counts, potentially degrading performance. Avoid WPO for dynamic vertex animations on Nanite meshes to maintain efficiency. Use non-Nanite meshes or geometry animations for effects requiring significant deformation.
3. Tessellation/Displacement: Nanite initially didn’t support traditional tessellation.UE5.3 introduces experimental Nanite Programmable Tessellation, primarily for static heightmaps, not dynamic changes. Earlier versions lack support for dynamic tessellation, limiting effects like crater formation via displacement. This restricts geometric interactivity requiring runtime tessellation on Nanite meshes. Non-Nanite meshes are necessary for such dynamic displacement effects.
4. Transparency and masked materials: Nanite currently supports opaque and masked materials.Translucency disables Nanite, forcing the mesh to fall back to a less detailed proxy mesh, losing Nanite’s benefits. Avoid interactive effects that fade or switch to translucent modes on Nanite meshes. This limitation requires non-Nanite meshes for opacity-based interactivity. Use opaque or masked materials to preserve Nanite’s rendering optimizations.

Interactive materials work with Nanite for appearance changes but face limitations with WPO, transparency, and tessellation, requiring non-Nanite meshes for geometric or translucent effects.

What are some examples of interactive material use cases in games?

Here are some concrete examples and use cases to illustrate how games leverage them:

1. Damage Feedback on Characters/Vehicles: Many games use material changes to show damage or state on characters.In Halo, character shields flash or ripple when hit, triggered by damage events via material parameters. Racing games dynamically display cracks or burn marks on vehicle materials to show wear. Mario Kart karts blink briefly after shell impacts, using rapid emissive or color toggles. These effects provide immediate visual feedback for damage without requiring model swaps.
2. Stealth and Visibility Indicators: Some stealth games have materials on the player that change based on visibility.Crysis’ Nanosuit darkens when in shadows or blends to a refractive cloaking shader when stealth mode is activated. The material shift visually communicates the player’s visibility to enemies in real time. This enhances stealth gameplay by providing clear feedback on the player’s state. It integrates dynamic material changes into core mechanics.
3. Puzzle Games and Interactive Environment: Puzzle games often feature panels or tiles that light up when activated.Floor tiles in puzzle games glow when stepped on in the correct order, driven by material parameters. Portal’s orange/blue portals animate as dynamic materials on surfaces, reacting to portal gun activation. Hard light bridges in Portal appear or vanish via interactive material effects. These provide clear, responsive feedback for puzzle-solving mechanics in the game world.
4. UI and Feedback in-world: Lots of in-world UI elements are materials.Dead Space’s spinal health bar updates dynamically as a material on the character’s back, reflecting health changes. Splinter Cell’s night vision goggles toggle emissive materials on Sam Fisher’s head to indicate activation. VR games use wrist displays with dynamic material screens to show real-time data. These elements convey critical information seamlessly integrated into the game environment.
5. Environment Changes and Weather: Open-world games may use interactive materials for weathering.Red Dead Redemption 2 increases surface wetness during rain via a “wetness” parameter in materials. Horizon Zero Dawn blends snow textures onto surfaces as snow falls, driven by shader logic. Building windows toggle emissive light based on day/night cycles, reflecting time changes. These effects create realistic, dynamic environmental responses to weather or time.
6. Interactive Foliage: Some games make foliage respond when the player or objects move through them.Unreal’s interactive grass system uses World Position Offset (WPO) to bend grass away from the player’s position. The player’s location feeds parameters or Material Parameter Collections to adjust vertex offsets dynamically. This creates a physical, immersive interaction with foliage-heavy environments. It enhances realism by simulating natural responses to movement.
7. Magic and Spells: In fantasy games, magical effects often involve interactive materials on the environment or characters.A freeze spell shifts enemy materials to icy textures with blue tints, blending gradually for visual impact. Poison auras recolor ground materials to sickly green in affected areas, indicating danger. The Witcher 3’s Igni spell triggers charred, burning textures on enemy clothing dynamically. These effects enhance magical interactions with vivid, shader-driven visuals.
8. Platformer Mechanics: In platformers, you might have platforms that change state when you step on them.Platforms in Crash Bandicoot turn red when triggered, indicating activation or impending collapse via material changes. Empty containers lose glowing materials after item collection, signaling their state to players. These visual cues support intuitive platformer mechanics. They provide immediate feedback on player interactions with the environment.
9. Shooter Effects: Many shooters use decals for bullet holes.Bullet holes apply dynamically as decal materials on surfaces, creating realistic combat damage. Muzzle flashes may illuminate nearby materials via parameters or dynamic lighting effects. Splatoon’s core mechanic paints surfaces with ink textures as players shoot, driven by material changes. These effects create reactive, immersive visuals for shooter gameplay.
10. Sci-Fi shields and force fields: When you shoot an enemy’s kinetic barrier, you often see a ripple or hexagonal pattern.Mass Effect’s kinetic barriers ripple on impact, using material effects on shield meshes to visualize hits. Halo’s bubble shield shows distortion patterns when struck, driven by material parameters. These effects dynamically indicate defensive states during combat. They enhance sci-fi gameplay with responsive, immersive visual feedback.
11. Archviz and configurators: Interactive materials are heavily used in architectural visualization or car configurators.Real-time car showrooms allow users to swap paint colors via material parameters, updating instantly. Architectural visualization scenes toggle floor materials from wood to tile dynamically. Lamps adjust emissive materials to simulate lighting changes, enhancing realism. These applications enable interactive customization in non-game contexts like design and marketing.

Interactive materials drive dynamic visuals like damage flashes, environmental reactions, or in-world UI, enhancing immersion across genres with shader-based flexibility.

Where can I find tutorials and templates for creating interactive materials in UE5?

Here are a few places and types of resources you should check out:

1. Official Unreal Engine Documentation and Examples: The Unreal Engine docs contain sections on Materials and Blueprints.The “Instanced Materials” and “Material Parameter Collections” pages provide detailed instructions for setting up dynamic parameters. Content Examples’ Materials map demonstrates parameter control through Blueprints in practical scenarios. Epic’s code snippets illustrate workflows for dynamic material instances. These resources offer a foundational understanding for creating and managing interactive materials effectively.
2. Unreal Online Learning and Community Tutorials: Epic’s official Online Learning portal has free video courses.“Interactive Material Swaps Using Blueprints” teaches how to create UI-driven material changes in a project. “Gameplay Driven Materials using Blueprints” covers dynamic material responses to gameplay events, like door interactions. These step-by-step guides are developed by Epic or community educators for accessibility. They provide practical workflows for integrating materials with gameplay mechanics.
3. YouTube Tutorials: YouTube has a wealth of Unreal Engine material tutorials.Search for terms like “Unreal dynamic material instance tutorial” or “interactive material blueprint” to find relevant content. Unreal’s official channel offers videos like “Controlling Materials at Runtime” for runtime techniques. Community channels, such as Virtus Learning Hub or Ryan Laley, cover effects like holograms and color changes. These videos deliver visual, hands-on guidance for quick and effective learning.
4. Forums and Q&A: The Unreal Engine Forums and AnswerHub/Stack Exchange have many Q&As on specific problems.Find detailed solutions for tasks like changing materials on button presses in forum threads. Searching “Dynamic Material Instance” reveals common pitfalls, best practices, and optimization tips. These Q&As provide community-driven answers to specific technical challenges. They offer valuable troubleshooting and workflow insights for interactive material development.
5. Marketplace Templates and Samples: The Unreal Marketplace sometimes offers free content examples or templates.The Blueprint Office project demonstrates light switches controlling lamp materials dynamically, showcasing practical applications. Lyra Starter Game includes dynamic effects, such as muzzle flashes using parameter collections. Action RPG samples feature material interactions in game contexts, like hit effects. Reverse-engineering these projects reveals Epic’s professional setups for interactive materials.
6. Specific Tutorials for Effects: If you want to learn a particular interactive effect, search for that specifically.Search for “Unreal Engine hologram material tutorial” or “interactive water material” to find targeted guides. 80.lv features artist breakdowns of dynamic material effects in portfolio pieces, offering professional insights. Community blogs share detailed guides on effects like ripples or footprints. These resources focus on specific visual techniques for specialized material interactions.
7. Blender to Unreal workflow (for materials): You usually need to recreate the material in Unreal and then add interactivity.Bake textures in Blender for export and recreate materials in Unreal, adding dynamic parameters for interactivity. Unreal’s material nodes mimic Blender’s animatable properties, driven by Blueprints for runtime control. Tutorials on Blender-to-Unreal material setups guide texture export and parameter workflows. This bridges cross-platform material creation for interactive use in Unreal projects.
8. Community Recommendations: On forums or Reddit, people often ask “What are good Unreal material tutorials?”Unreal’s “Mastering Materials” livestream series covers dynamic instances comprehensively, offering in-depth insights. UE4 tutorials on dynamic materials remain relevant for UE5, as core concepts carry over. Jay Versluis’ beginner-friendly guides explain each step clearly, assuming minimal prior knowledge. These recommendations curate trusted, community-vetted learning paths for interactive material creation.

Unreal’s documentation, Online Learning, YouTube, and community resources offer tutorials and templates for creating interactive materials, covering Blueprint integration and specific effects.

Finally, don’t overlook the Unreal Engine Forums and AnswerHub archives – if you have a particular question (e.g., “how to make material glow when overlapping player”), someone has likely asked it, and the answers are effectively mini-tutorials.

FAQ Questions and Answers

1. Can I change a character or object’s material during gameplay (for example, make a character turn to gold)?
   Adjust existing material parameters (e.g., lerp a “gold amount”) or swap to a new material using the Set Material node in Blueprint. This is common for effects like invincibility glows or icy textures. Preload new material textures to avoid hitches, enabling seamless runtime changes.
2. Do I need to write C++ code to create interactive materials, or can it be done with Blueprints?
   Blueprints alone suffice for creating interactive materials, using nodes like Create Dynamic Material Instance and Set Parameter Value to adjust materials at runtime. C++ is only needed for performance-critical updates, but Blueprints are easier and adequate for most cases, as shown in Epic’s documentation.
3. Will using interactive materials significantly slow down my game’s performance?
   Properly managed interactive materials have minimal performance impact, as changing parameters updates shader uniforms efficiently. Reuse dynamic material instances and use Material Parameter Collections for bulk updates to avoid overhead. Games widely use these with negligible FPS impact if heavy per-frame updates are avoided.
4. How do interactive material changes replicate in multiplayer?
   Material changes are client-side and don’t replicate automatically. Replicate the triggering game event or variable (e.g., a “locked” state) via Replicated variables or RPCs, then apply the material change locally on each client. This keeps network bandwidth efficient by only sending necessary state data.
5. Can I animate material changes over time for cinematics (Sequencer)?
   Sequencer supports animating material parameters via Material Parameter Collection tracks or direct keyframing on an Actor’s material. Add an MPC track to keyframe values like “DissolveAmount” for effects like dissolves, or bind Dynamic Material parameters in Sequencer for specific objects, all within the UI.
6. Are interactive materials a new feature of UE5, or can I use them in UE4 as well?
   Interactive materials, including dynamic instances and parameter collections, have been available since UE3/UE4 and are fully supported in UE5. UE5 adds Nanite compatibility but doesn’t change core techniques, making UE4 and UE5 methods interchangeable, barring minor API differences.
7. Should I handle an animation in the material itself (using Time, etc.) or via Blueprint?
   Use material-driven animations (Time, sine waves) for constant, ambient effects like pulsing glows. Blueprint-driven animations suit gameplay-specific triggers, like fading on character death, offering precise control via Timelines. Material animations run constantly, while Blueprints sync better with game events.
8. Can a material detect collisions or input on its own without Blueprint?
   Materials are passive shaders with no ability to detect collisions or input. Game logic in Blueprint or C++ must feed parameters to the material based on events like collisions. Materials react to provided data but cannot initiate responses independently.
9. How can I import or recreate my Blender materials to be interactive in Unreal?
   Import Blender textures (albedo, normal) and rebuild the material in Unreal, adding parameters for interactivity. Blender’s material animations don’t transfer; recreate them using Unreal’s Blueprint timelines or parameter collections. Bake complex Blender nodes to textures for compatibility, then add dynamic features in Unreal.
10. When should I use a Material Parameter Collection versus a Dynamic Material Instance for interactions?
    Use Material Parameter Collections (MPCs) for global effects affecting multiple materials, like fog color, as they update efficiently with one call. Dynamic Material Instances are best for per-object changes, like a single door’s color. MPCs are cheaper for frequent, widespread updates, while instances allow unique customizations.

conclusion

Interactive materials in Unreal Engine enable dynamic, responsive visuals using the Material Editor’s parameters and Blueprint’s event-driven logic. These materials, built on dynamic instances and parameter collections, react to game events, supporting effects like glowing doors or day-night transitions. Accessible to all developers, artists can define parameters, while designers connect them via Blueprints, making the workflow simple yet powerful.

Practical considerations, such as performance and Nanite compatibility, show interactive materials can be efficient with proper planning in UE5 projects. They enhance games and architectural visualizations with interactive storytelling, like glowing puzzle clues or reactive environments. Developers should utilize Unreal’s resources—documentation, tutorials, and samples—to start with basic effects and progress to complex animations, fostering collaboration between artists and scripters for optimal results.

In conclusion, interactive materials are a powerful feature in Unreal Engine that, when mastered, can significantly enhance player immersion and feedback. They allow your game or application to communicate with players in a visual way – surfaces themselves become part of the user interface and narrative. With the knowledge of how to create and control them across different contexts (UI, environment, characters, VR/AR), you have an expanded toolbox to build more engaging real-time experiences. Happy material crafting!

sources and citation

1. Unreal Engine Documentation – Instanced Materials in Unreal Engine (Official guide on using material instances, parameters, and dynamic material instances)​forums.unrealengine.com​forums.unrealengine.com
2. Unreal Engine Documentation – Using Material Parameter Collections (Official documentation explaining material parameter collections and how updating one value affects many materials)​dev.epicgames.com​dev.epicgames.com
3. Epic Games Unreal Engine Forums – “Performance cost of Dynamic Material Instance?” (Community discussion confirming that reusing a dynamic material instance has negligible performance cost)​forums.unrealengine.com​forums.unrealengine.com
4. Epic Games Unreal Engine Forums – “Best way to have a character footsteps ripples on a material” (Forum Q&A suggesting using decals or particles for footstep ripple effects on materials)​forums.unrealengine.com
5. Epic Games Unreal Engine Forums – “Using material parameter collection with Niagara – how?” (Discussion on syncing Niagara particle parameters with material parameter collections for unified effects)​forums.unrealengine.com​forums.unrealengine.com
6. 80 Level Article – “Working with Lumen & Nanite in Unreal Engine 5” (Article noting Nanite requirements: meshes must be opaque and without WPO for support)​80.lv
7. Pixune Blog – “Interactive and Dynamic Art in Games” (Explains how interactive/dynamic game art combines engine logic and art, with examples like footprints in snow using shaders or physics)​pixune.com​pixune.com
8. Jay Versluis Blog – “How to change the colour of a material via Blueprint in Unreal Engine” (Step-by-step tutorial demonstrating creation of a dynamic material instance and changing a color parameter through Blueprint)​versluis.com​versluis.com
9. Epic Dev Community Tutorial – “Gameplay Driven Materials using Blueprints” (Tutorial highlighting how to drive material changes through Blueprint events for interactive effects)​dev.epicgames.com​forums.unrealengine.com
10. Unreal Engine Documentation – Controlling Materials via Blueprint (Emissive example) (Documentation example where Blueprint keys (B and D) adjust an emissive material parameter during play, demonstrating Blueprint material control)​dev.epicgames.com​dev.epicgames.com

Recommended

• How to Create a Metahuman of Yourself: Turn Your Likeness Into a Digital Character in Unreal Engine 5
• How do I make the camera follow a character in Blender?
• How to Export Metahuman to Maya and Back: Complete Workflow for Unreal Engine and Autodesk Maya
• Intergalactic: The Heretic Prophet – Release Date, Story, Cast, Gameplay, and Everything We Know
• What Is a Foley Artist? A Complete Guide to the Art of Sound Design
• Top 10 Cyberpunk 2077 Mods to Transform Your Night City Experience
• How do I toggle between camera views in Blender?
• Devil May Cry: Complete Guide to the Iconic Action Franchise, Characters, and Latest Updates
• How to Make Gen Z Slang Meme Videos with MetaHuman: Brainrot, Sigma, and Gooning-Style Content for Social Media
• Nudity in Love, Death and Robots: Episode Guide, Artistic Use, and Viewer Insights
