What Are Open USD 3D Workflows? How Universal Scene Description Is Changing the Industry

What is Open USD in 3D workflows?

OpenUSD (Open Universal Scene Description), developed by Pixar, is an open-source framework for encoding and exchanging complex 3D scene data across various applications. It serves as both a file format and a software API, capable of representing entire scenes including geometry, materials, lights, rigging, and animation in a standardized, interoperable way. Unlike traditional formats like FBX or OBJ, which focus on single assets, USD can handle intricate scene hierarchies and relationships, making it ideal for large-scale 3D projects. Its open-source nature, governed by the Alliance for OpenUSD (including Pixar, Adobe, Autodesk, Apple, NVIDIA), ensures broad adoption and continuous evolution.

USD’s universal design addresses the challenge of data exchange in diverse 3D pipelines, where tools like modeling, animation, and rendering software often use incompatible formats. By providing a common scenegraph, USD enables seamless data transfer without loss of fidelity, fostering collaboration across departments. This interoperability allows studios to integrate new tools easily, ensuring scenes created in one application can be edited in another, streamlining modern 3D production workflows.

Why is Open USD important for 3D production pipelines?

OpenUSD revolutionizes 3D production by enabling seamless collaboration across departments using different software, overcoming limitations of formats like FBX or OBJ. It supports parallel workflows through layering, allowing multiple artists to edit scenes simultaneously without conflicts, significantly speeding up production. USD maintains asset fidelity as a single source of truth, reducing data loss during transfers. Industry giants like Pixar, Adobe, and NVIDIA back USD through the Alliance for OpenUSD, ensuring it remains a future-proof standard for VFX, games, and more.

USD provides several key benefits:

• Non-destructive, parallel workflows: USD’s layering lets artists work concurrently on separate layers (e.g., layout, lighting, FX), merging contributions seamlessly. This eliminates sequential bottlenecks, as changes propagate instantly across shots. Studios report faster iteration and unified context for all departments. Parallelism transforms traditional siloed pipelines into collaborative ones.
• Single source of truth for assets: USD preserves high-fidelity asset data across tools, avoiding conversion losses. Pixar’s films like Toy Story 4 rely on USD for consistent scene management. This predictability reduces surprises in data exchange. Teams can trust USD to maintain scene integrity throughout the pipeline.
• Industry-wide support: The Alliance for OpenUSD standardizes USD for broad adoption across VFX, animation, and games. Major companies contribute to its development, ensuring relevance. USD’s flexibility allows integration of new tools without workflow disruptions. This support future-proofs pipelines for evolving industry needs.

USD streamlines collaboration, preserves data integrity, and adapts to diverse tools, making it a cornerstone of modern 3D pipelines. Its adoption by leading studios underscores its transformative impact on efficient, scalable production.

How does Open USD improve collaboration in 3D projects?

OpenUSD enhances collaboration by enabling parallel, non-destructive workflows through its layered architecture, allowing multiple artists to work on the same scene simultaneously. Unlike traditional sequential pipelines, USD’s composition engine merges individual contributions from separate layers, ensuring updates like layout changes are instantly reflected across departments, reducing miscommunication.

This shared context fosters a unified view of the project, with lightweight USD files supporting asynchronous work across distributed teams. By maintaining a clear history of changes and resolving conflicts logically, USD streamlines iteration and boosts efficiency, as noted by studios like Goodbye Kansas for faster scene updates.

USD is built from the ground up to enable collaborative, simultaneous work on 3D projects:

• Parallel workflows with layers: USD’s layers allow animators, lighters, and FX artists to edit scenes concurrently without handoffs. Each works on a separate USD file, merged in real-time by the composition engine. This eliminates waiting for departments to complete tasks. Studios report significantly faster iteration cycles.
• Non-destructive editing: Layers stack like Photoshop, preserving original data while applying overrides, enabling experimentation without risk. Changes remain independent, maintaining a clear edit history for tracking or reverting. This flexibility supports creative freedom across teams. Artists can test variations confidently, knowing core assets are safe.
• Unified scene context: USD provides a shared scenegraph, ensuring all departments see the same shot structure. Updates, like moving a set piece, reflect instantly for everyone referencing the USD data. This reduces errors from misaligned scene versions. It fosters seamless communication and consistency.

USD improves collaboration across remote or distributed teams:

• Lightweight files and asynchronous work: USD’s lightweight files reference heavy data, enabling remote artists to work asynchronously and sync changes efficiently. This supports global team collaboration without duplicating large datasets. Conflicts are manageable through USD’s structured hierarchy. It mirrors version control for streamlined merging.

USD’s layering and referencing create a collaborative environment where artists work concurrently, safely, and with a unified project view. This drastically reduces linear workflows, enhancing efficiency and communication in complex 3D projects.

What are the advantages of using USD over FBX or OBJ?

USD offers several key advantages compared to older 3D interchange formats like FBX or OBJ:

• Rich Scene Composition vs. Single Asset Export: USD handles entire scenes with hierarchies, unlike FBX/OBJ’s focus on single models or animations. It transfers characters, props, and lights in one file, preserving relationships. FBX/OBJ require manual reassembly of separate exports. USD’s composition arcs enable complex, layered scene assembly.
• Non-Destructive Layering and Overrides: USD supports layering, allowing overrides without altering original assets, unlike FBX/OBJ’s direct edits or copies. Multiple scene variations exist as lightweight deltas, enhancing collaboration. This eliminates the need for redundant geometry duplication. Layering fosters flexible, iterative workflows.
• Extensive Data Support (Beyond Geometry): USD encapsulates materials, rigging, physics, and procedural data via extensible schemas. FBX supports limited animation and materials, while OBJ is restricted to static meshes. USD’s flexibility accommodates future data types like hair or fluids. It reduces reliance on multiple formats.
• Lossless round-tripping and Open Format: USD preserves scene data across tools, avoiding FBX’s loss of custom attributes or OBJ’s simplicity. As an open-source standard, USD supports custom metadata and human-readable ASCII files. This ensures broad adoption and troubleshootability. Unlike proprietary FBX, USD benefits from industry-wide contributions.
• Performance and Scalability: USD efficiently handles massive scenes with billions of polygons, streaming geometry and instancing assets. OBJ is unwieldy for large datasets, and FBX lacks USD’s on-demand loading. USD’s binary format and Hydra engine ensure fast load times. It supports interactive production workflows.

USD surpasses FBX/OBJ as a comprehensive scene management system, minimizing workarounds in data exchange. Its collaborative features, data richness, and scalability make it ideal for modern 3D pipelines, though FBX/OBJ may still serve simpler tasks.

What 3D software supports Open USD workflows?

One of the reasons USD has gained traction is that almost every major 3D application now supports USD in some way. Here’s a rundown of software with OpenUSD workflows:

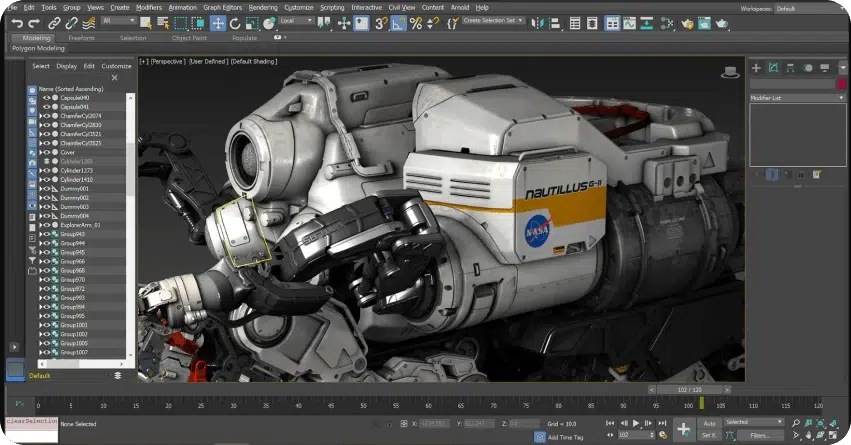

• Autodesk Maya & 3ds Max: Maya’s MayaUSD plug-in (Maya 2022+) enables native USD loading, editing, and saving with a Layer Editor. 3ds Max 2023+ offers USD import/export via a dedicated menu. Both support geometry, materials, and scene hierarchies. Autodesk integrates USD across its tools, including Arnold and Revit.
• Blender: Blender 2.83+ includes built-in USD import/export under File → Import/Export → Universal Scene Description. It supports geometry, cameras, and lights, with Hydra viewport rendering. Blender converts USD prims to objects but flattens layers. Its USD support is ideal for asset exchange in pipelines.
• SideFX Houdini: Houdini’s Solaris module (LOPs) natively authors USD scenes, manipulating layers and hierarchies. It includes a Hydra-powered Stage Viewer for previews. USD import/export is flexible via SOPs or LOPs. Houdini’s proceduralism enhances USD for complex scene assembly.
• Unreal Engine: Unreal’s USD Importer plug-in supports USD Stage editing, importing meshes, animations, and materials. It enables live-linked updates from DCCs like Maya. Export is script-based but evolving. Unreal leverages USD for virtual production and VFX pipelines.
• Unity: Unity’s USD package (com.unity.formats.usd) imports USD scenes as gameObjects, preserving hierarchies and lights. Export is supported via scripting or preview menus. Unity’s improving USD integration aligns with its USD alliance membership. It’s useful for cinematic and real-time workflows.
• NVIDIA Omniverse: Omniverse is a USD-centric platform, using USD for all scenes and enabling real-time collaboration. It connects tools like Maya and Blender via Live USD sessions. Omniverse’s renderer and physics enhance USD workflows. It acts as a hub for pipeline integration.

Other Software: Pixar’s Presto, Katana, and Adobe Substance 3D Stager use USD natively. Cinema 4D, ZBrush, and Apple’s RealityKit support USD import/export. Most modern 3D tools offer USD compatibility, ensuring pipeline interoperability. Check specific documentation for version-specific support.

USD’s widespread adoption across major 3D tools enables seamless integration into diverse pipelines. Its support in DCCs, game engines, and platforms like Omniverse ensures flexibility and collaboration in modern 3D workflows.

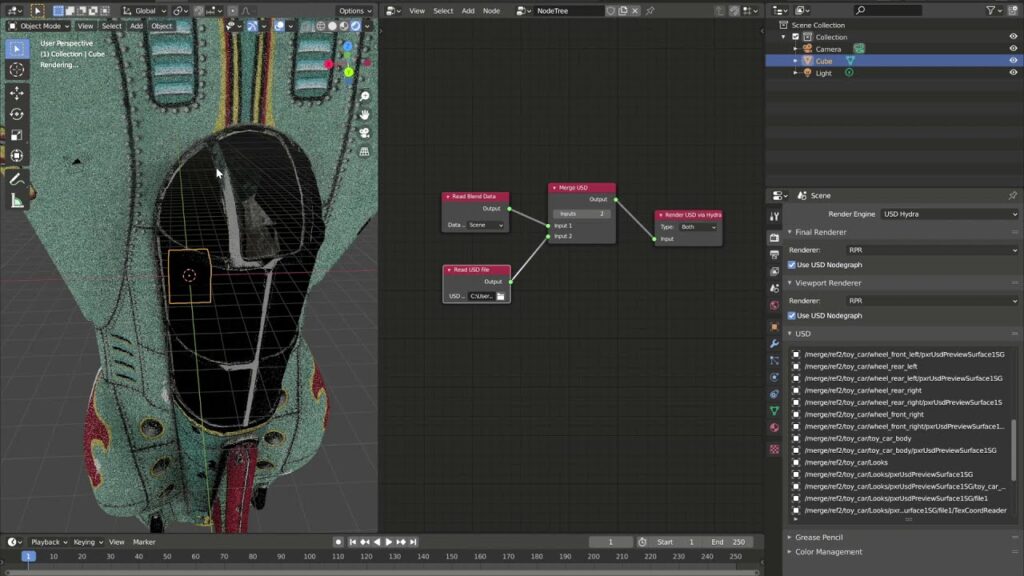

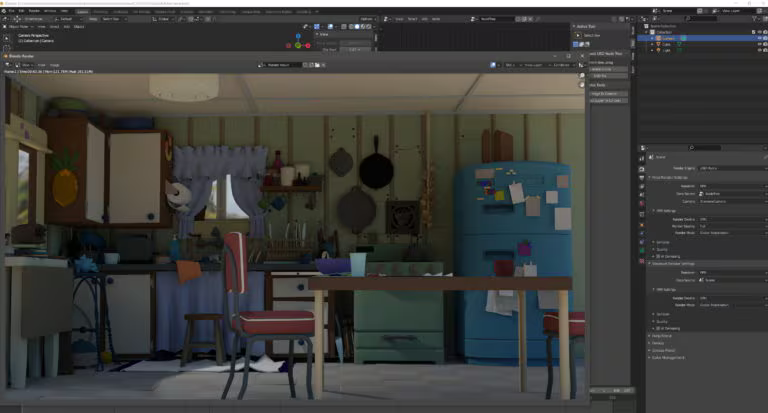

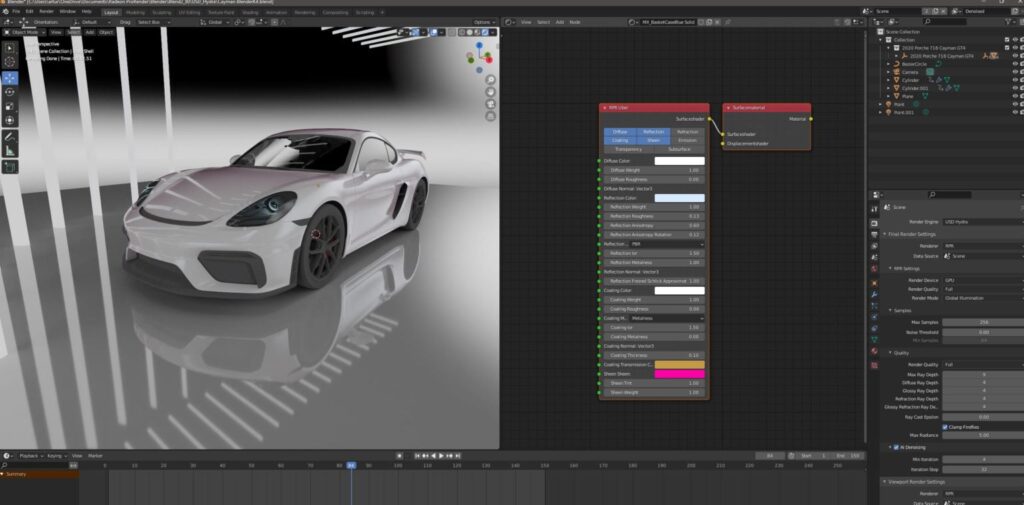

How do I set up an Open USD workflow in Blender?

Setting up a USD workflow in Blender is straightforward since USD support is built into recent Blender versions. Here’s how you can get started with USD in Blender:

• Blender Version and Add-on: Ensure Blender 3.0+ is installed, as USD import/export is supported via the built-in “Import-Export: Universal Scene Description” add-on. Verify it’s enabled in Edit → Preferences → Add-ons. This add-on is typically active by default. It provides core USD functionality for asset exchange.
• Importing USD into Blender: Use File → Import → Universal Scene Description to load .usd, .usda, or .usdz files, importing geometry, cameras, and lights. Blender converts USD prims to objects but flattens layers, lacking native layer toggling. USDZ imports can include textures if selected. Imported data is ready for standard Blender manipulation.
• Working on USD data in Blender: Manipulate imported objects normally, but changes remain in Blender’s session, not updating the USD file live. Blender treats USD as an I/O format, not a native scenegraph. This requires exporting to reflect edits in USD. It suits tasks like modeling or animation within a pipeline.
• Exporting USD from Blender: Export via File → Export → Universal Scene Description, choosing .usd, .usda, or .usdz formats. Options include exporting selected or visible objects, converting materials to USD Preview Surface. Blender flattens collections and modifiers on export. Particle systems or complex shaders may not fully translate.
• Using USD in Blender’s Workflow: Use USD to exchange assets with tools like Maya, exporting models or importing scenes for specific tasks like lighting. Blender acts as a USD importer/exporter in larger pipelines. Manage layering externally, as Blender doesn’t compose layers internally. This integrates Blender into USD-centric workflows.

Blender’s USD support enables straightforward import/export for pipeline integration, though it lacks advanced layering within the UI. Future enhancements, like Hydra viewport add-ons, promise deeper USD workflows in Blender.

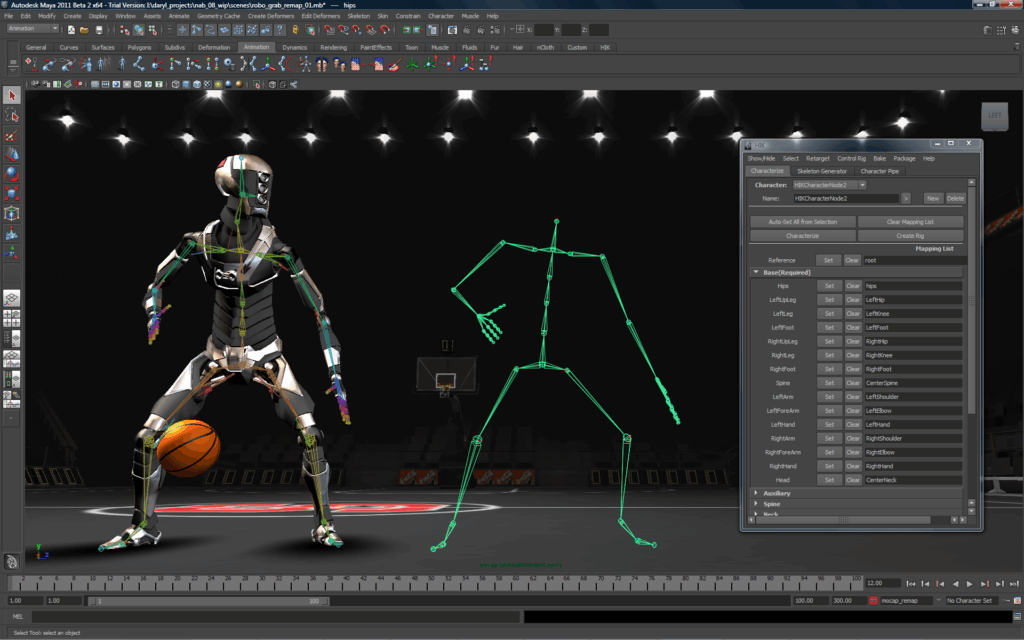

Can I use Open USD with Maya or Houdini?

Yes, both Autodesk Maya and SideFX Houdini have robust support for OpenUSD, though the workflows differ given the nature of each program. Here’s what you need to know for each:

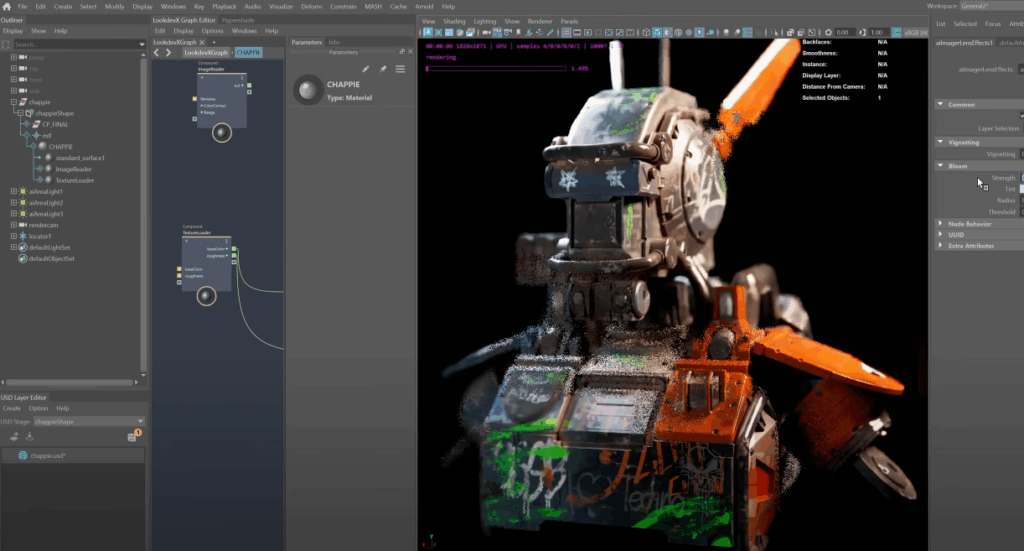

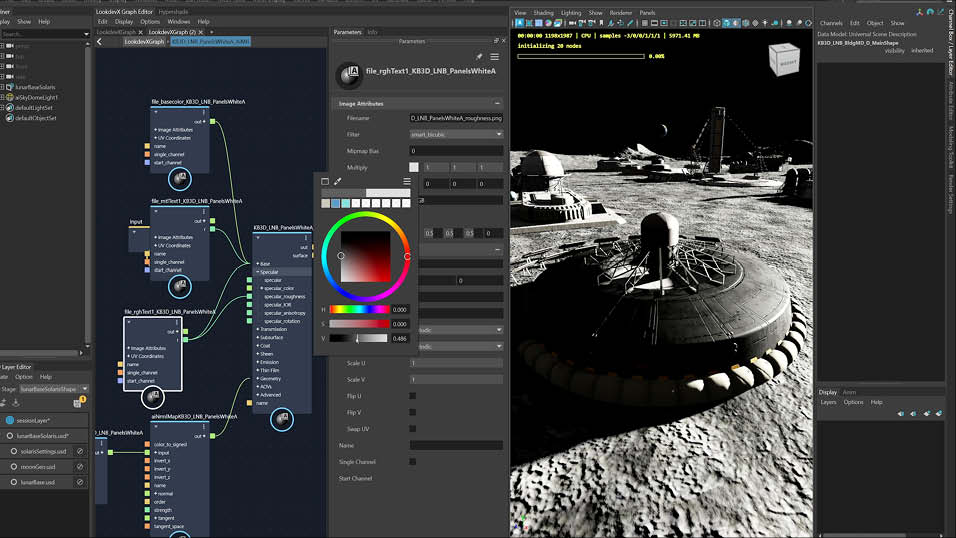

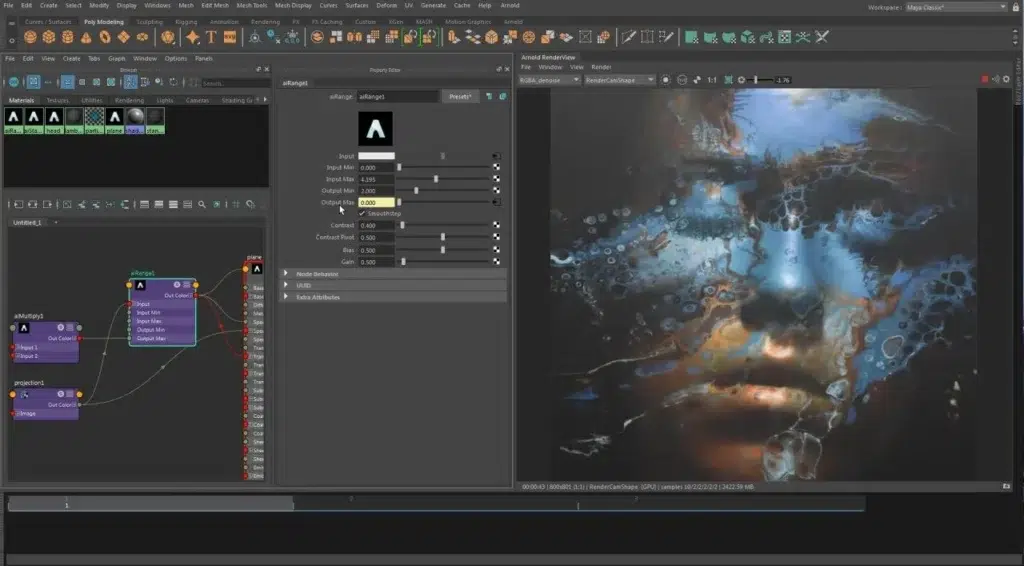

• Maya and USD: MayaUSD (Maya 2022+) enables native USD loading/editing via the USD menu and Layer Editor, activated in the Plugin Manager. Import USD as proxy shapes or Maya geometry, and export via File → Export All → USD Export. It supports referencing, overrides, and layer management. MayaUSD’s open-source development ensures robust USD workflows.
• Houdini and USD (Solaris): Houdini’s Solaris (LOPs) natively authors USD scenes, using nodes like Reference or Sublayer LOPs to import USD. Export via USD ROP nodes, leveraging Hydra’s Stage Viewer for previews. Solaris integrates USD procedurally, ideal for complex scene assembly. Houdini’s USD support is deeply embedded for pipeline flexibility.
• Interoperability: Maya and Houdini exchange USD files with high fidelity, enabling round-tripping (e.g., Maya modeling to Houdini lighting). USD ensures consistent geometry, transforms, and materials (via MaterialX). Non-shared features may not transfer fully, but USD’s common framework minimizes losses. This supports seamless multi-tool pipelines.

Both Maya and Houdini offer robust USD support Maya via MayaUSD’s intuitive tools, Houdini through Solaris’ procedural power making them standard choices for USD pipelines. Their interoperability via USD ensures efficient collaboration across diverse 3D workflows.

How do you export and import USD files in different 3D tools?

Exporting and importing USD files will vary slightly from tool to tool, but generally the process is integrated into the normal import/export dialogs. Below are brief guidelines for several major tools:

• Blender: Import via File → Import → Universal Scene Description (.usd/.usda/.usdz), with options for materials and textures. Export using File → Export → Universal Scene Description, selecting objects or visible elements. Blender flattens layers and exports materials as USD Preview Surface. Use .usdz for zipped packages with textures.
• Maya: With MayaUSD, import USD via File → Import, choosing proxy or geometry conversion. Export via File → Export All/Selection → USD Export, supporting hierarchical USD files. Use the Layer Editor to export specific layers. MayaUSD’s usdExport command offers scripting control.
• Houdini: In Solaris, import with Sublayer/Reference LOPs or USD Import SOP; export using USD ROP nodes. Standard SOPs use ROP USD Output for export. Houdini supports scripted exports and layer splitting. Solaris enables procedural USD scene manipulation.
• Unreal Engine: Enable USD Importer, open USD files in the USD Stage editor, or drag-drop into the content browser. Add USD assets to levels or use live-linked stages. Export requires Python scripting, with community tools aiding level export. Unreal’s USD support is evolving for VFX.
• Unity: With the USD package, drag USD files into Assets to import as prefabs. Export via scripting or preview USD menus, capturing hierarchies. Unity converts USD prims to gameObjects, preserving lights and cameras. It’s improving for cinematic and real-time use.

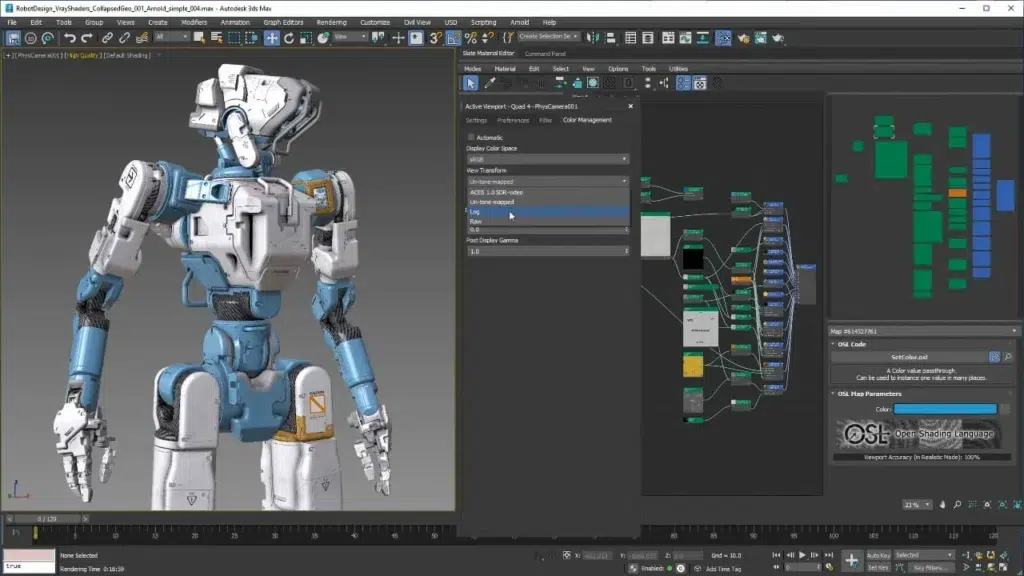

• Autodesk 3ds Max: Use File → Import/Export → USD in 3ds Max 2023+ to handle geometry, UVs, and materials. Specify up-axis (Z-up to Y-up) in options to avoid coordinate issues. Older versions use a USD plugin. Native support simplifies pipeline integration.
• Other Tools: Cinema 4D imports/exports USD via Merge/Save As commands. ZBrush exports USD for static meshes. Substance 3D Stager and SketchUp (via Omniverse) support USD natively or through conversion. Most tools integrate USD in standard import/export dialogs.

General tips for USD import/export:

• Check scale/units for consistency (meters vs. centimeters).
• Use USD Preview Surface or MaterialX for material compatibility.
• Test round-tripping to identify data loss.
• Consult tool documentation for USD-specific quirks.

USD’s standardized import/export options across 3D tools ensure reliable data exchange. Testing and attention to tool-specific settings maintain fidelity in diverse pipelines.

What are the advantages of using USD over FBX or OBJ? (Recap)

(This section is a quick recap in list form, summarizing USD’s advantages over older formats for clarity.):

• Full Scene Interchange: USD can contain entire scenes (multiple models, animation, lights, cameras) in one description, whereas FBX/OBJ are usually single-asset or single-scene without layering. This makes USD ideal for transferring complex shots or levels, not just individual models.
• Layering and Non-Destructive Edits: USD allows layering of edits and overrides on top of assets (similar to Photoshop layers). Neither FBX nor OBJ have any concept of layered edits – they are monolithic. With USD, multiple departments can contribute to the same asset by layering their changes, instead of making conflicting copies.
• Rich Data & Extensibility: USD supports a wider array of data (materials, variants, skeletal animation, particles, physics, etc.) through its schema system. FBX does support animation and bones, but something like variants (multiple versions of a model in one file) or custom properties are not well supported in FBX. USD can be extended via plugins to carry virtually any data needed, ensuring forward-compatibility.
• Open Standard and Ecosystem: USD is open-source and becoming an industry standard backed by many vendors. FBX is controlled by one company (Autodesk), and OBJ is an old standard with no modern governance. The open nature of USD encourages broad adoption and integration – for example, even Apple chose USD (USDZ) for AR content in iOS. This means skills and assets in USD are transferable across a wide range of tools and pipelines.
• Improved Collaboration and Versioning: Because USD files (especially .usda ASCII) are human-readable, they can be diffed and version-controlled like code. This is a big advantage for team collaboration – you can see changes line by line, merge files, etc. FBX and OBJ being either binary or less structured make diffs and merges nearly impossible, hindering collaborative version control.

USD’s comprehensive scene management, collaborative layering, and open standard make it a superior choice for modern 3D pipelines. While FBX/OBJ remain useful for simpler tasks, USD excels in complex, multi-tool workflows.

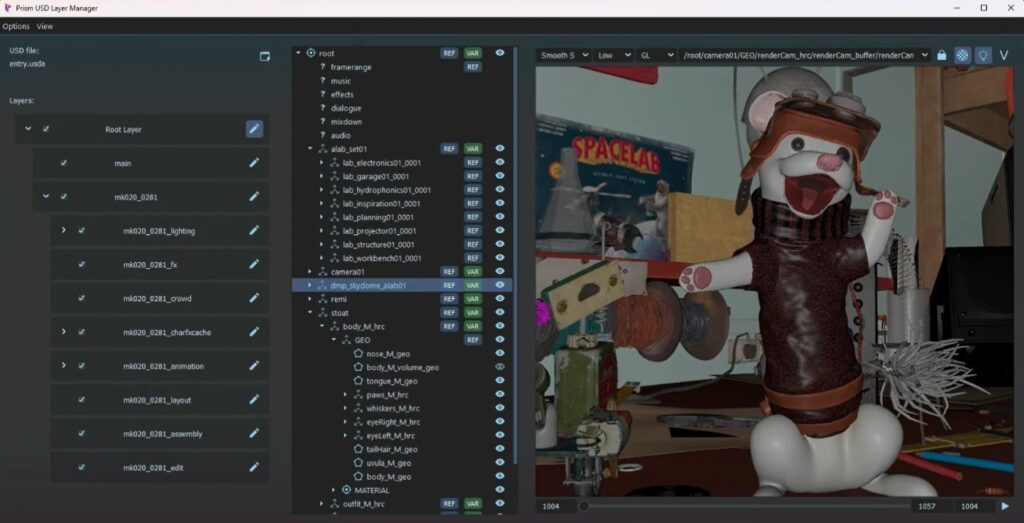

How does layering work in Open USD scenes?

Layering in USD is a fundamental concept that enables its powerful non-destructive workflows. A USD layer is essentially a container of scene description (often corresponding to a file on disk). Layering means you can stack multiple such layers together to produce a final composed scene. Here’s how it works and why it’s useful:

Layering in USD allows multiple USD files to be merged into one scene, with later layers overriding earlier ones:

• Sublayering Composition Arc: Sublayering stacks USD files, with stronger (later) layers overriding weaker (earlier) ones for conflicting attributes. For example, a base layer sets a prop’s position, while a stronger layer repositions it. This non-destructive approach preserves original data. It enables flexible scene composition across departments.
• Strength Ordering: Layer order, set explicitly or via subLayers statements, determines override priority, with later layers winning. If a stronger layer omits an attribute, the weaker layer’s value applies. This ensures predictable composition without ambiguity. Artists can experiment without altering core assets.
• Departmental Task Separation: Layers separate tasks like modeling, rigging, or lighting, each in its own file. Updates to a base model automatically integrate with override layers, maintaining shot consistency. This streamlines parallel workflows across teams. Each department’s contributions merge seamlessly.

USD supports layering multiple scene files (layers) into one composed scene:

• Shot.usd references Shot_Layout.usd (Buzz’s animation) and Shot_Sets.usd (Sunnyside set) as sublayers.
• The composed scene merges both under a single hierarchy.
• Layout and Environment departments work separately, combining contributions seamlessly.
• Layering enables non-destructive, collaborative shot assembly.

Layers can be used to separate tasks by departments or contexts:

• Modeling, rigging, animation, and lighting each use distinct layers.
• Lighting adjusts materials in its layer without altering the model file.
• Model updates flow into shots, preserving overrides.
• This ensures efficient, non-destructive pipeline integration.

Layering enables parallel, non-destructive workflows, allowing departments to contribute independently to a unified scene. USD’s composition engine ensures predictable, flexible scene assembly, making it ideal for collaborative 3D production.

Is Open USD good for real-time 3D applications and game engines?

Yes, USD is good for real-time workflows in terms of content creation and interchange; however, most game engines do not use USD as their runtime format (they typically convert USD assets into engine-specific optimized data). Let’s break it down:

• Using USD in real-time pipelines: USD efficiently transfers complex scenes from DCC tools to engines, preserving hierarchies and animations for virtual production. For example, Unreal imports USD for LED stage rendering, maintaining asset parity with VFX workflows. This streamlines scene assembly compared to exporting multiple FBX files. USD ensures consistent, high-fidelity data across tools.
• Real-time engines also benefit from USD’s non-destructive editing: USD’s layering supports live updates in engines, allowing artists to tweak scenes without re-importing. Omniverse showcases real-time USD editing synced with Unreal, enhancing collaborative design reviews. This makes USD a dynamic hub for virtual production scenes. It facilitates rapid iteration in real-time workflows.
• Game engines and USD at runtime: Engines convert USD to optimized native formats for runtime performance, though USDZ supports AR apps on iOS. Experimental Unity components explore runtime USD loading, but performance limits mainstream adoption. USD’s instancing and LOD features aid potential real-time applications. Runtime USD use is niche but has growth potential.
• For now, think of USD as real-time friendly for workflows, but not necessarily as the in-game format. Where USD is definitely good for real-time is in simulation and visualization: USD’s physics and variant schemas support real-time simulations, as seen in NVIDIA’s Isaac Sim for robotics. It describes complex scenes for real-time visualization, ideal for dynamic, interactive applications. This bridges offline and real-time workflows effectively. USD enhances simulation accuracy and flexibility.
• USD in game development pipelines: USD manages assets and environments before engine import, acting as a master format for artists using Max or Maya. Approved USD scenes are baked into game-ready assets, reducing iteration time with instant feedback via Unreal’s USD Stage. This streamlines complex game asset workflows. It optimizes pipeline efficiency.
• Performance considerations: USD’s optimized core supports instancing and streaming for efficient real-time scene handling. Naive use may impact performance, but LOD and Purpose attributes optimize for real-time rendering needs. This ensures scalability in large scenes. USD’s design aligns with real-time rendering requirements.
• Real-time collaboration: USD enables live collaboration via Omniverse, syncing edits across DCCs and Unreal in real-time for design reviews. This supports virtual production without manual exports, with USD as a unified scene source. It enhances team coordination significantly. USD revolutionizes collaborative real-time workflows.

USD’s efficiency and collaborative features make it a game-changer for real-time 3D applications, particularly in virtual production, with expanding potential for runtime integration.

How do studios use Open USD in virtual production workflows?

Virtual production – where filmmaking intertwines with real-time technology (like LED volume stages, motion capture, simulcam, etc.) – involves many moving parts and cross-disciplinary teams. OpenUSD has found an important role in virtual production workflows by providing a unified scene representation that both traditional VFX tools and real-time engines (like Unreal) can understand. Here’s how studios leverage USD in this context:

• Asset Ingestion and Management: USD packages film-quality assets with variants, preserving details for real-time engine use. Studios like ILM use USD to synchronize assets between StageCraft and VFX pipelines, ensuring on-set visuals match final renders. This maintains asset parity across production stages. USD reduces discrepancies in virtual production.
• Scene Layout and Collaboration: USD enables concurrent scene contributions via layers, with layout tweaks updating live in Unreal. Variants toggle environments, such as forest or desert, without reloading, supporting rapid director-driven changes on set. This enhances iterative flexibility. USD’s layering streamlines collaborative scene design.
• Visualization and Previs/Postvis: USD bridges previs and final production by exporting Unreal previs scenes or importing VFX animations for on-set use. Camera data in USD ensures precise post-production matching, unifying real-time and offline workflows. This facilitates seamless visualization cycles. USD enhances workflow continuity.
• Live Editing and Set Dressing: USD supports live set dressing via Omniverse or Maya, updating LED walls instantly as artists drag props into USD scenes. This enables real-time adjustments without pipeline interruptions, synced with engines. USD’s streaming ensures dynamic set changes. It accelerates on-set adaptability.
• Recording and Re-use: USD captures on-set data like camera tracks and mocap as animation curves for VFX refinement. Engine lighting saved as USD aids final renders, providing a direct path from set to post-production. This preserves production data fidelity. USD ensures seamless data re-use.
• Cross-Platform Integration: USD integrates tools like ShotGrid, Houdini, and Unreal, triggering scene builds and publishing camera moves. It ensures consistent data across planning, playback, and rendering, gluing disparate virtual production systems together. This drives end-to-end workflow cohesion. USD unifies multi-tool pipelines.

USD’s role in virtual production ensures seamless collaboration and data continuity, revolutionizing real-time filmmaking by aligning all teams on a unified scene representation.

Can I use Open USD with Unreal Engine or Unity?

• Unreal Engine: Enable the USD Importer plugin to access the USD Stage panel, streaming USD scenes without full import. Import prims as Static Meshes or edit live via Python APIs, supporting Sequencer animations for virtual production. USD simplifies large scene transfers, though materials may need manual Unreal shader replacements. This enhances real-time workflow efficiency.
• Unity: Install the USD package to drag USD files into Assets, converting prims to GameObjects with support for hierarchies and experimental materials. Export via scripting or experimental menus, aiding AR and cinematic workflows. USD enhances Unity’s interoperability, though its support is less dynamic than Unreal’s. Unity’s USD tools are rapidly evolving.
• Limitations & Workflow Considerations: Both engines use USD for import/export, not runtime, converting to native assets for performance. Unreal supports live USD stages, while Unity’s imports are static, excelling in editor-based tasks like previs. Runtime USD use is possible but not standard. USD optimizes pipeline tasks over in-game use.
• Version Compatibility: Match USD library versions between DCCs and engines to avoid compatibility issues, as Unity’s USD package may lag behind the latest features. This ensures reliable data transfer across tools, requiring documentation checks for version alignment. Consistent versions enhance USD workflow stability.

USD’s integration with Unreal and Unity enhances content pipelines, particularly for complex scenes and virtual production, with growing potential for tighter engine interoperability.

What are common issues with USD workflows and how do I fix them?

While USD is powerful, users do encounter some common issues when first adopting it. Here are frequent problems and tips to fix or avoid them:

• Materials not appearing or looking wrong after import: Materials may not transfer correctly between tools like Maya and Blender due to incompatible shading systems. USD carries materials, but renderers may not interpret them. Use USD Preview Surface or MaterialX for portable materials, and ensure textures are embedded or correctly pathed in USDZ. Baking high-end shaders or using material translation plugins in tools like Omniverse can resolve this.
• Scale or orientation mismatches: Assets may appear oversized or misoriented due to differing unit (e.g., Maya’s cm vs. Blender’s m) or coordinate systems (Y-up vs. Z-up). USD metadata like metersPerUnit may not be set correctly. Set consistent metersPerUnit and upAxis on export, and standardize units (e.g., Y-up, meters) across the pipeline. Importers can adjust settings if needed.
• Extremely large USD file size or slow performance: Large files or slow viewport performance often result from unoptimized exports, like repeated geometry or uninstanced objects. Use instancing for repeated elements, binary .usdc for compact files, and payloads for lazy loading. Set geometry purposes (e.g., proxy) to improve interaction speed.
• USD version incompatibilities or plugin errors: Errors like “Unrecognized field” arise from version mismatches or missing custom plugins across tools. Check USD versions (e.g., MayaUSD’s USD build), export in compatibility mode, and ensure custom plugins are accessible. Set environment variables like PXR_PLUGINPATH_NAME to locate plugins.
• Difficulty merging edits or branching: Concurrent edits to the same USD layer can overwrite work, as USD lacks built-in conflict resolution. Use distinct layers per artist to avoid conflicts, and employ text diff tools for .usda merges. USD-aware asset management systems like ShotGrid prevent overrides. Plan asset splits (e.g., characters vs. lighting) to simplify merging.
• Missing references or assets not found: Referenced assets fail to load if paths (e.g., “../Textures/wood.png”) are broken due to moved files. Maintain folder structures, use relative paths, or set PXR_USD_STANDARD_SEARCH_PATH. For USDZ, ensure compatible texture formats like PNG are used. Asset resolvers can handle complex pipelines.
• Exported animation doesn’t match original exactly: Animation discrepancies, like motion blur or tangent issues, occur due to inexact controller translations or frame rate mismatches. Bake animations to timeSamples, set correct TimeCodesPerSecond, and verify unit metadata (e.g., camera aperture). Adjust export settings to include sparse samples or curves.
• USD schema conflicts or deprecated features: Warnings about deprecated types (e.g., “double3”) or missing schemas arise as USD evolves. Update to newer USD versions to resolve deprecations, and install required schema plugins. Most warnings are ignorable if data is non-critical. Monitor release notes for schema changes.

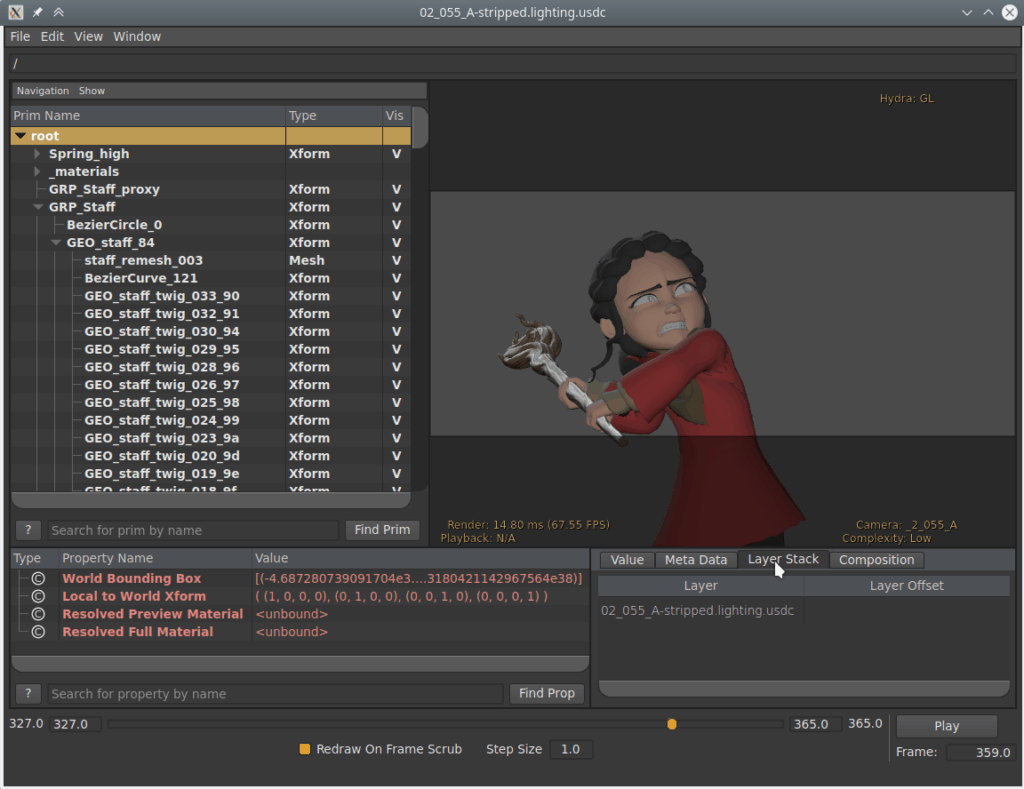

General Tips: Pixar’s usdview, usdcat, and usdzip tools help diagnose issues, displaying errors or converting formats. Engaging with USD’s open-source community via forums or mailing lists can uncover solutions. Many issues stem from USD’s evolving ecosystem, but standardized practices like layer separation and unit consistency prevent most problems. These strategies ensure USD’s benefits collaboration and scalability are fully realized.

Where can I learn Open USD for 3D production?

Learning OpenUSD can seem daunting due to its technical depth, but there are a wealth of resources available for artists, technical directors, and developers alike. To get started, you should familiarize yourself with both USD fundamentals and how USD is used in your specific area (be it animation, games, etc.). Here are some steps and resources:

Official Pixar documentation on openusd.org offers foundational tutorials and a programmer’s reference, with the “Introduction to USD” and “USD Glossary” being particularly useful for beginners. NVIDIA’s free Learn OpenUSD courses cover basics to advanced topics like shading, available on their Developer site or Omniverse hub. Tool-specific tutorials from Autodesk, Foundry, and SideFX contextualize USD for Maya, Houdini, or Katana users. Online forums like CGForums, Reddit, and the Alliance for OpenUSD provide community support, with experts from Pixar and NVIDIA often active.

Hands-on practice with sample USD scenes in usdview or DCCs like Houdini Solaris clarifies concepts. Workshops at SIGGRAPH or providers like CG Master Academy, plus USD’s GitHub examples for coders, deepen expertise. Starting with docs, courses, and experimentation builds proficiency.

Best practices for managing assets in Open USD pipelines

Here are several best practices that studios follow when dealing with USD assets:

• Adopt a Consistent Asset Structure: A clear hierarchy separates model assets (e.g., characters, props) from shot files, referencing library USDs into scenes. Root prims use Kind (e.g., assembly) and names like /TreeOak for clarity. This structure simplifies asset swaps for lighters or animators. Consistent naming enhances pipeline predictability.
• Use Component vs. Assembly asset design: Components are self-contained assets (e.g., a prop) marked as kind=component, while assemblies reference multiple components (e.g., a forest). Payloads defer heavy geometry loading for components. This distinction clarifies asset roles. It optimizes referencing and loading efficiency.
• Leverage Variants for Asset Versions: Variant Sets within a USD asset (e.g., Color: Red, Blue) consolidate variations like costumes or LODs, reducing file proliferation. Avoid overloading with unused variants; use sub-assets for complex cases. Variants streamline switching in context. They maintain a single, manageable asset file.
• Encapsulate materials and shaders smartly: Materials can be in a global USD library or asset-specific, with namespaced bindings (e.g., CarA/Materials/CarPaint) to avoid collisions. Scene-level overrides handle lookdev tweaks without duplicating assets. This separates material management from geometry. It supports flexible, non-destructive shading adjustments.
• Follow Naming Conventions and Metadata: Prims under scopes like “Geom” or “Coll” and metadata (e.g., assetInfo with name, version) ensure clarity. Machine-friendly names and versioning in prims or files aid tracking. This enhances tool interoperability. Metadata improves asset identification in large pipelines.
• Versioning and Freezing Assets: Version assets via file names (e.g., Environment_v1.usd) or layered publishing to maintain references. Non-destructive overrides prevent shot breakage, with scripts swapping versions. This ensures stability across shots. Versioning supports rollback if changes disrupt production.
• Asset Localization: Relative paths for references ensure portability across sites, while USDZ packages assets for sharing. Absolute paths align with studio conventions or use resolvers. This maintains reference integrity. It simplifies multi-vendor collaboration.
• Testing and Validation: Validate assets with usdchecker for errors like missing prims or invalid paths. Opening in usdview confirms functionality. Rules like mandatory metersPerUnit catch issues early. Validation ensures pipeline reliability.
• Documentation for Artists: Guidelines clarify USD basics, like avoiding animation in model files or excluding lights from assets. This prevents common errors among artists. Clear rules maintain clean assets. Documentation fosters team alignment.

By structuring assets with clear hierarchies, variants, and validation, USD pipelines stay organized and reusable. Treating assets like code modules encapsulated and versioned ensures efficiency and robustness.

Best Practices for Cross-Platform USD Asset Sharing

Here are best practices to achieve smooth cross-platform USD sharing:

• Stick to Standard Schemas: Use core USD schemas like UsdGeom, UsdShade, or UsdSkel for broad compatibility, avoiding custom attributes unless optional. MaterialX ensures complex material portability across tools. Proprietary schemas may not be recognized, breaking assets. Standard schemas maximize interoperability with diverse platforms.
• Use Relative Paths for Assets: Relative paths (e.g., ../../Assets/Tree.usd) prevent broken references when sharing, unlike absolute paths. Deliver assets with intact folder structures or use USDZ to embed resources. This ensures references resolve correctly. It simplifies cross-studio asset transfers.
• Choose Universal Units and Up-Axis: Standardize on Y-up and meters, embedding metersPerUnit and upAxis in stage metadata for consistency. This prevents scale or orientation issues in tools like Unity or ARKit. Consistent units align with Pixar’s defaults. It avoids misinterpretation across platforms.
• Test in Multiple Viewers: Test assets in usdview, Blender, or other DCCs to catch compatibility issues, like unsupported lights. Independent viewers reveal proprietary dependencies. This ensures assets are platform-agnostic. Testing enhances reliability for recipients.
• Provide USD in Compatible Formats: Binary .usdc is efficient for most platforms, while .usdz suits AR or mobile with embedded textures. Check recipient tool limitations (e.g., .usda-only support). This ensures format compatibility. It accommodates diverse platform needs.
• Minimize External Dependencies: Include all textures and material USDs with the asset, or use USDZ to package them. A manifest lists included files to avoid missing dependencies. This prevents loading errors. It streamlines cross-site collaboration.
• Encoding and Platform Considerations: Use UTF-8 encoding and alphanumeric names for paths and prims to avoid filesystem issues. Avoid spaces or special characters in file names. This ensures cross-platform stability. Standard naming prevents locale-related errors.
• Performance tuning for target platform: Include LOD variants (e.g., LOD0, LOD1) in USDs for platforms like mobile AR, allowing apps to select appropriate detail. High-end tools use full detail. This optimizes performance across devices. Variants cater to diverse hardware capabilities.
• Material compatibility: Use UDIM or single-file textures with MaterialX or Preview Surface for real-time engines, avoiding complex procedural shaders. Provide preview materials for simpler viewers. This ensures visual consistency. Universal materials enhance cross-tool rendering.
• Documentation and Conventions: Document conventions like Y-up, 24 fps animation, or variant purposes (e.g., “Destroyed” vs. “Intact”). This clarifies asset usage for recipients. Clear documentation reduces setup errors. It ensures plug-and-play functionality.

By using standard schemas, relative paths, and thorough documentation, USD assets become universally compatible. These practices leverage USD’s interoperability, ensuring seamless cross-platform sharing.

Troubleshooting Common Issues in USD Workflows

When working in USD workflows, you might encounter situations where “things don’t work as expected.” Here is a quick troubleshooting guide for some common scenarios:

• Geometry or Objects Missing: Objects may not appear if on inactive layers or unloaded payloads. Check prim activity in viewers and load payloads manually if needed. Verify reference paths to ensure files exist. Activating prims or fixing paths resolves missing geometry.
• Layer Edits Not Appearing: Edits in stronger layers may not show if the layer order is incorrect or the wrong layer is edited. Use usdview to check layer contributions and confirm variant selections. Correcting layer stack order applies overrides. This ensures intended changes are visible.
• Slow Playback or Interaction: Heavy geometry or excessive timeSamples can slow performance. Prune prims (set active=false) or use “guide” purpose, and switch to simpler Hydra delegates like Storm. Flattening layers may help if composition is complex. Optimizing data or drivers improves interaction.
• Unexpected Overrides (One edit undoing another): Namespace collisions or variant/sublayer conflicts cause unintended overrides. Ensure unique prim paths and encapsulate variants fully. Check path matches for overrides. Clear scoping prevents override conflicts.
• Crashes or Instability: Consistent crashes may indicate tool bugs or corrupted files. Test in usdview to isolate issues, simplify files by removing layers, and report bugs. Partial loading can recover data. Simplifying files pinpoints crash causes.
• Material or Texture Problems: Missing textures or color issues stem from incorrect paths or color space mismatches. Verify shader file attributes and configure tool color management. Use MaterialX for precision. Correct paths and settings restore visuals.
• Animation Offsets or Timing Issues: Misaligned animations result from time code offsets or frame rate mismatches. Align layer start frames and standardize TimeCodesPerSecond. Check for intentional offsets. Uniform settings synchronize animations.
• Memory Consumption: High RAM usage occurs with large datasets. Use payloads to load only needed prims via UsdPrim::Load/Unload. Structure assets (e.g., city blocks) as payloads. This reduces memory demands. Selective loading optimizes resource use.
• Understanding USD Errors: Errors like “Failed to find asset” or “def prim inside instance” guide fixes. Resolve bad paths for reference errors and avoid authoring inside instances. Use UsdUtils.CompositionInspection to diagnose programmatically. Reading diagnostics directs targeted solutions.

Reading USD’s verbose error messages and isolating problematic layers or assets simplifies troubleshooting. Community forums and the USD reference manual provide further support, leveraging the growing ecosystem’s expertise.

FAQ Questions and Answers

Below are common questions about OpenUSD and their answers to clarify its purpose and usage:

1. What does “OpenUSD” stand for and how is it related to Pixar’s USD?
   OpenUSD stands for Open Universal Scene Description, representing Pixar’s USD as an open standard. Pixar developed USD for internal use before releasing it open-source. OpenUSD reflects multi-company governance by firms like Pixar, Adobe, and NVIDIA. The core technology remains identical, emphasizing its open evolution.
2. Is USD meant to replace FBX and OBJ completely?
   USD aims to be a robust interchange format, potentially replacing FBX and OBJ in complex workflows. It handles more data than simpler FBX/OBJ, which remain prevalent in game dev and legacy systems. USD is increasingly adopted for studio pipelines, but FBX/OBJ persist for basic exports. Over time, USD may dominate as tool support grows.
3. What’s the difference between USD and USDZ?
   USDZ is a packaged USD format, bundling a USD scene and dependencies like textures into a single zip archive. Popularized by Apple for AR, USDZ ensures self-contained assets for iOS devices. It contains USD files and resources, behaving like USD when opened. USD is the format, while USDZ is a delivery mechanism.
4. Can USD handle animations and rigged characters, or is it only for static geometry?
   USD supports animations and rigged characters via UsdSkel for skeletal animations, blend shapes, and baked transformations. It handles visibility, materials, and time-sampled data, replacing Alembic in some pipelines. Rigging stays in animation software, but deformers and results export to USD. Tools like Maya support USD skeletal exports.
5. Do I need to know programming to use USD?
   Artists can use USD through 3D software GUIs like Maya or Blender without coding. Advanced pipeline tasks, like custom USD processing, may require Python or C++ scripting. Basic scene assembly and asset tweaking are GUI-driven. Scripting enhances automation but isn’t mandatory for everyday use.
6. How does USD interact with other formats like Alembic or glTF?
   USD complements formats like Alembic, which can be referenced or converted into USD scenes. glTF serves lightweight web/game delivery, while USD handles complex pipelines. USD-to-glTF conversion supports web outputs with some data loss. They coexist, with USD for creation and glTF for distribution.
7. What software support is there for USD on macOS/iOS?
   Apple strongly supports USD, with macOS offering native USDZ previews and tools like Reality Composer. Maya, Blender, and other software on macOS handle USD similarly to Windows. iOS uses USDZ for ARKit, with apps like Reality Viewer for viewing. USD is well-integrated for AR and visualization.
8. How do I view or inspect a USD file without a full DCC like Maya?
   Pixar’s usdview tool offers a lightweight GUI to inspect USD files, showing scene graphs and properties. NVIDIA’s Omniverse View/Create and Blender’s USD importer provide interactive alternatives. Command-line tools like usdcat or text editors for .usda files work for quick checks. usdview is ideal for debugging.
9. Can USD be used for 2D or other data, or is it strictly 3D?
   USD is primarily for 3D scenes, referencing images as textures but not designed for 2D data. It supports physics and simulation schemas for 3D contexts, not UI or audio. Some explore USD for metadata like storyboards, but its practical use is 3D-focused. It remains a 3D scene description format.
10. Is USD file size a concern? How do I keep USD files from getting too big?
    USD files can grow large but are compact via instancing and binary .usdc formats. Use instancing for repeated objects, payloads for heavy geometry, and layering to split scenes. Compress animation data by reducing sample rates, and use USDZ for texture compression. Smart structuring manages large scenes efficiently.

OpenUSD is a versatile 3D scene description format, gaining traction across industries for its robust data handling. Its open governance and tool support make it a powerful choice for modern pipelines.

These FAQs cover some of the most common curiosities and concerns new USD users have. As the community grows, more Q&A and knowledge gets shared, making it easier to troubleshoot and master USD.

Learning Resources to Master Open USD Workflows

• Pixar’s OpenUSD Documentation (official) – The authoritative resource covering USD concepts, APIs, and examples. Start with the “Introduction to USD” to grasp key ideas. The docs include tutorials on composition, variants, and Python snippets.
• USD Glossary and Schemas Guide – Part of the official docs, the glossary defines terms like prim, layer, variant, etc., and the schemas guide explains built-in schemas (UsdGeom, UsdShade, UsdSkel, etc.) so you know how geometry, shading, animation are structured in USD.
• NVIDIA Learn OpenUSD Course – A free online learning path provided by NVIDIA, consisting of multiple courses from fundamentals to advanced topics. Includes hands-on exercises (often using Omniverse) and covers USD scene building, materials, and best practices in a production-like environment.
• NVIDIA Omniverse YouTube Playlist – A set of explanatory videos: “5 Things to Know about USD”, “USD’s 4 Superpowers”, “USD Composition and Layering”. These are short, digestible videos that illustrate USD concepts visually and how they apply in workflows.
• Autodesk USD Learning Hub – Autodesk’s resources, including their blog series and tutorials on USD in Maya and 3ds Max. E.g., “Get started with USD in Maya” which walks through enabling the plugin, basic layering, etc. Also, Autodesk’s AU presentations/panels on USD (like the one with Epic Games on game pipelines) provide great insight.
• Foundry’s USD Tutorials (for Katana/Nuke) – Foundry has a “Foundry Learn” section with USD basics (like the USD Basics article for Nuke’s 3D system). Even if you don’t use Katana or Nuke, their explanation of USD concepts is generally useful (with examples like the superhero city analogy which makes concepts accessible).
• SideFX Solaris (USD) Documentation – SideFX docs for Houdini’s Solaris contain practical info on using USD in a node-based workflow. It’s useful to read how a full-fledged 3D software implements USD concepts (e.g., layering, variants) in UI – helps reinforce understanding.
• USD on Developer Forums (graphics and VFX forums) – The community-driven Q&A. The CG Society forums, Stack Exchange (computer graphics tag), and Reddit’s r/vfx or r/Animation often have threads from professionals discussing USD adoption, with Q&A that can be enlightening. Search for “USD pipeline tips” or “USD workflow”.
• Alliance for OpenUSD Forum & Resources – The AOUSD forum is an emerging place where contributors discuss improvements and usage. They sometimes post recordings of meetings or demonstrations. Also check out Linux Foundation’s OpenUSD page for any whitepapers or webinars they publish as the Alliance progresses.
• Sample USD Assets and Case Studies – Exploring real examples is educational. Pixar’s USD repository might have sample assets (there used to be a USD Kitchen set, etc.). NVIDIA Omniverse includes sample scenes (like Marbles, the physics demo in USD). Also, some studios have shared case studies: e.g., Pixar’s RenderMan “USD Pipeline” story and Goodbye Kansas case study. These often reveal how they set up their workflows and can inspire your approach.
• Books or Academic Courses – USD is relatively new, so dedicated books are scarce, but conference courses (like SIGGRAPH course on USD) have materials accessible online. Keep an eye out for any forthcoming books or chapters in broader VFX books covering USD.

With these resources, you can build a strong understanding of OpenUSD. It’s recommended to mix theory (documentation, videos) with practice (using USD in a scene) to truly master it. The community is enthusiastic – don’t hesitate to engage on forums or at events, as many are eager to share knowledge about this rapidly evolving standard.

Sources and Citations

• Pixar Animation Studios – Universal Scene Description (USD) Documentation​openusd.org​openusd.org, defining USD’s purpose and collaboration model.
• Goodbye Kansas Studios – USD Pipeline Case Study​goodbyekansasgroup.com​goodbyekansasgroup.com, real-world benefits of USD in a VFX studio’s pipeline (improved collaboration and iteration).
• Autodesk – What is OpenUSD? (Autodesk Blog)​autodesk.com​autodesk.com, information on industry support (Alliance for OpenUSD) and usage in Maya/Max and game workflows.
• USD Frequently Asked Questions (openusd.org)​openusd.org​openusd.org – clarifications on USD vs other formats and technical capabilities.
• NVIDIA – Omniverse USD Resources​openusd.org​openusd.org, describing USD’s role in Omniverse and listing software in USD ecosystem.
• Reddit Unreal Engine thread – “USD vs FBX”​forums.unrealengine.com, highlighting differences in preserving fidelity across applications.
• Blender Manual – USD Export/Import​docs.blender.org​docs.blender.org, outlining Blender’s support and current limitations for USD.
• Foundry Learn – USD Basics​learn.foundry.com​learn.foundry.com, explaining USD layering in context of VFX workflows and departmental separation.
• Pixar RenderMan – “Pixar’s USD Pipeline” article​renderman.pixar.com, giving analogies (Photoshop-like layering) and diagrams of USD scene composition.
• Threekit Blog – “Should you use USD/USDZ?”​threekit.com​threekit.com, providing a quick overview of USD vs USDZ and USD’s wide feature support.

Recommended

• Redefining Representation: Authentic Black Hairstyles in Video Games
• What is the camera’s field of view in Blender?
• Blender Straighten Hair Curves Geometry Nodes Preset – Complete Guide & Best Practices
• How do I set up a VR camera in Blender?
• Unreal Engine for Beginners: A Step-by-Step Guide to Getting Started
• Cascadeur: The Ultimate AI-Powered 3D Animation Software for Game Developers and Animators
• Devil May Cry Characters Guide: Meet the Heroes, Villains, and Icons of the Series
• MetaHuman Creatures: Crafting Non-Human Characters with Unreal Engine’s MetaHuman Framework
• Cyberpunk 2077 Hair Mods: Top Custom Hairstyles, Installation Guides, and Community Favorites
• How to Get the Best Hair Highlights for Realistic Rendering
