Changing the render resolution in Blender is essential for achieving the right shot or render output, whether for high-quality renders, specific screen sizes, or quicker previews.
Blender’s default camera doesn’t directly manage resolution, but tools like The View Keeper make it easy to assign unique resolution settings to individual cameras. This allows you to set up a scene where each camera can have its own resolution, simplifying workflows for projects with diverse requirements. This guide walks you through managing and customizing render resolutions effectively in Blender.
Understanding Render Resolution in Blender
The render resolution in Blender defines the dimensions of the final output image or animation in pixels. It is primarily managed through the Output Properties panel. However, when using The View Keeper, resolution settings can be tied to individual cameras, enabling more flexible workflows for projects with varied output requirements.
Step-by-Step Guide to Changing Render Resolution
1. Access the Output Properties
- In the Properties Editor, navigate to the Output Properties tab (the icon that looks a printer ).
- Under the Dimensions section, you will find the resolution settings.
2. Adjust the Resolution Dimensions
- Set the Resolution X and Resolution Y values to define the width and height of the render in pixels.
- Example: For a 1920×1080 HD render, set Resolution X to 1920 and Resolution Y to 1080.
- Use the aspect ratio options to adjust how pixels are displayed. For most projects, the default 1:1 aspect ratio is sufficient.
3. Modify the Percentage Scale
- Below the Resolution X and Y fields, the Percentage Scale slider allows you to render at a fraction of the full resolution.
- Example: Setting the percentage to 50% for a 1920×1080 resolution will render at 960×540 pixels. This is useful for quick previews.
4. Using The View Keeper for Camera-Specific Resolutions
- Open The View Keeper panel from the N sidebar.
- For each camera in your scene, you can assign unique resolution settings by adjusting the Output Properties and refreshing the record for the selected camera. This would save the resolution setting to that camera.
- This allows Blender to associate specific resolutions with individual cameras, making it possible to render scenes with varying resolutions based on camera selection.
Optimizing Render Resolution for Different Outputs
1. For Web or Screen Use
- Standard resolutions:
- HD: 1280×720
- Full HD: 1920×1080
- 4K: 3840×2160
- Ensure the frame rate matches the target platform (e.g., 24 FPS for film, 30 or 60 FPS for web).
2. For Print
- Print resolutions require higher pixel densities (e.g., 300 DPI).
- Calculate the resolution based on the print size. Example:
- For a 10-inch by 8-inch print at 300 DPI, set the resolution to 3000×2400 pixels.
3. For Previews or Drafts
- Reduce the percentage scale to 25% or 50% to speed up render times while retaining enough detail to evaluate the scene.
Aspect Ratios and Camera Alignment
Understanding Aspect Ratios
Aspect ratios define the proportional relationship between the width and height of your render. For example, a 16:9 aspect ratio means the image is 16 units wide for every 9 units of height. Aspect ratios help maintain consistency across platforms and ensure the render fits display requirements. Common aspect ratios include:
- 16:9 for widescreen formats.
- 4:3 for standard screens.
- 1:1 for square compositions.
Adjusting the Camera Alignment
- Press Numpad 0 to view through the camera.
- Use the Camera Properties tab to adjust the focal length or sensor size, ensuring the subject fits within the aspect ratio.

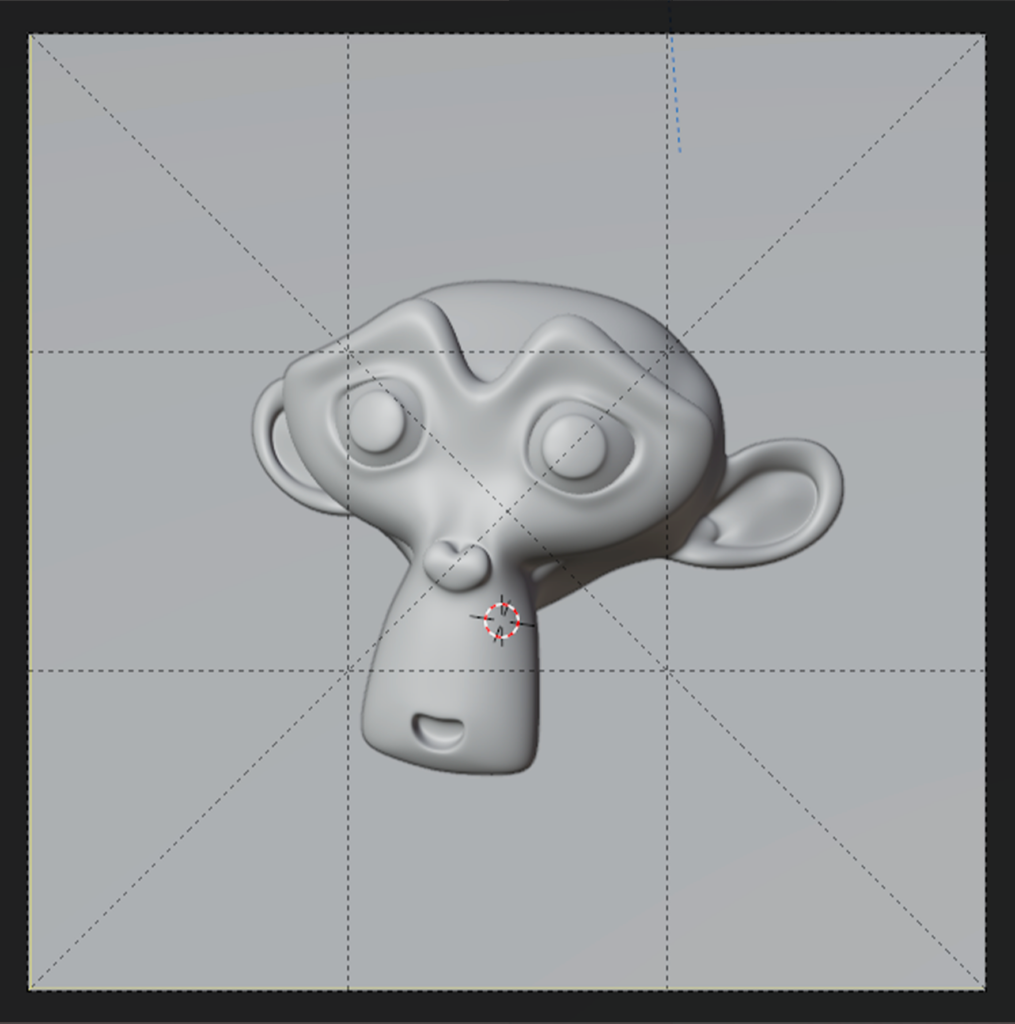

- Enable the Composition Guides (found in the camera viewport settings) to align objects with rules like the rule of thirds or the golden ratio.
Using Multiple Cameras with Different Resolutions
If your project requires rendering from multiple cameras with varying resolutions, The View Keeper offers a seamless way to manage these settings:
- Assign Unique Resolutions to Each Camera
- Select a camera and adjust the resolution settings in the Output Properties.
- Use The View Keeper’s Refresh Record feature to save the resolution to the specific camera record.

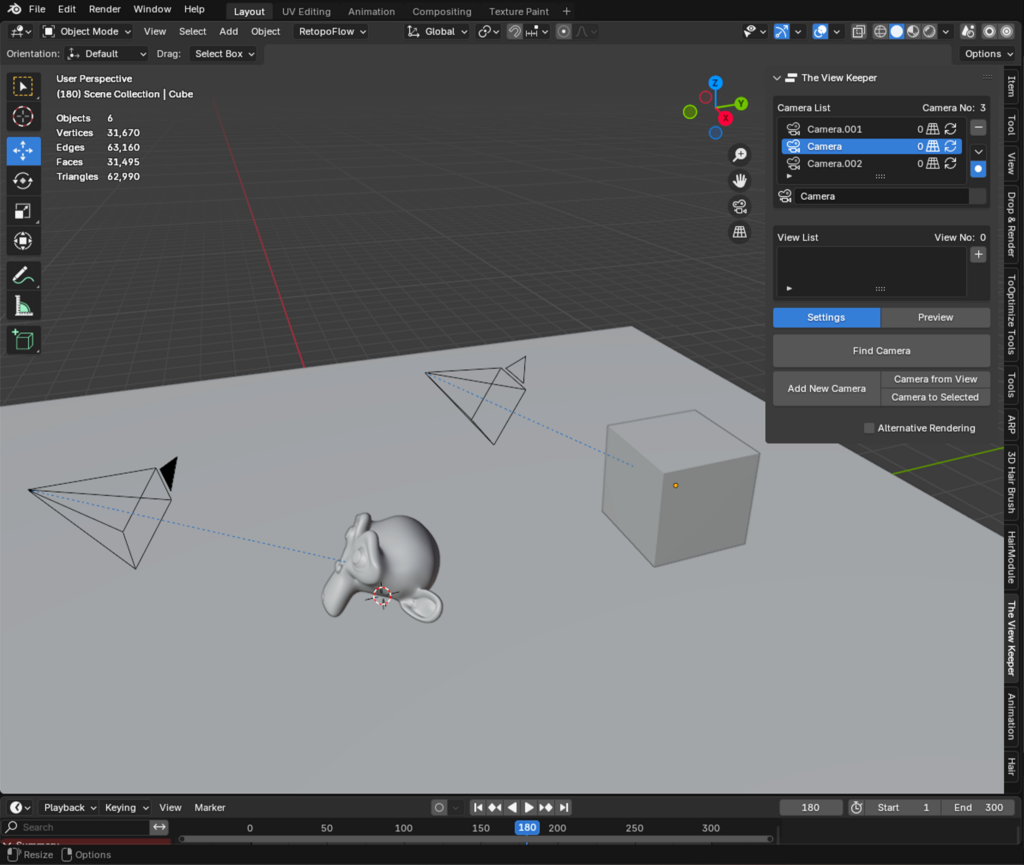

- Switch Between Camera Views
- In The View Keeper panel, select the desired camera record to automatically switch to its associated resolution and settings.
- Render Using Alternative Rendering
- Use The View Keeper’s Alternative Rendering feature to render multiple cameras, each with its unique resolution.
Tips for Optimizing Resolution
- Use Render Region:
- Enable Render Region (Ctrl+B in the viewport then create a box) to focus rendering on a specific area of the scene. This is particularly helpful for testing details.
- Consider Output File Format:
- Choose file formats that support the required resolution and quality, such as PNG or EXR for high-resolution stills.
- When using The View Keeper, you can assign specific file formats to individual camera records. This allows for seamless rendering in multiple formats, like rendering one camera in EXR for post-processing while saving another in JPEG for quick previews.
- Leverage Eevee for Previews:
- If you’re working with high resolutions, use the Eevee render engine for faster previews before switching to Cycles for final renders.
- Check Output Settings Regularly:
- Ensure that resolution, frame rate, and output formats align with your project requirements.
Common Questions About Render Resolution
Can I change resolution mid-animation?
No, you cannot keyframe resolution by default in Blender because resolution is a scene-wide setting. However, with The View Keeper, you can change the resolution mid-animation by tying specific resolutions to camera records. These records store the resolution settings for each camera, and activating them during specific frames applies the changes seamlessly.
To change resolution mid-animation:
- Set up and store a camera record with the desired resolution in The View Keeper.
- Navigate to the desired frame in the timeline.
- Activate the appropriate camera record in The View Keeper and keyframe it by selecting the record and right-clicking to choose Insert Keyframe.
- Repeat this process for all camera records at the frames where resolution changes are required.
When the animation renders, The View Keeper will ensure the resolution updates as intended based on the keyframed camera records.
My render looks pixelated—what’s wrong?

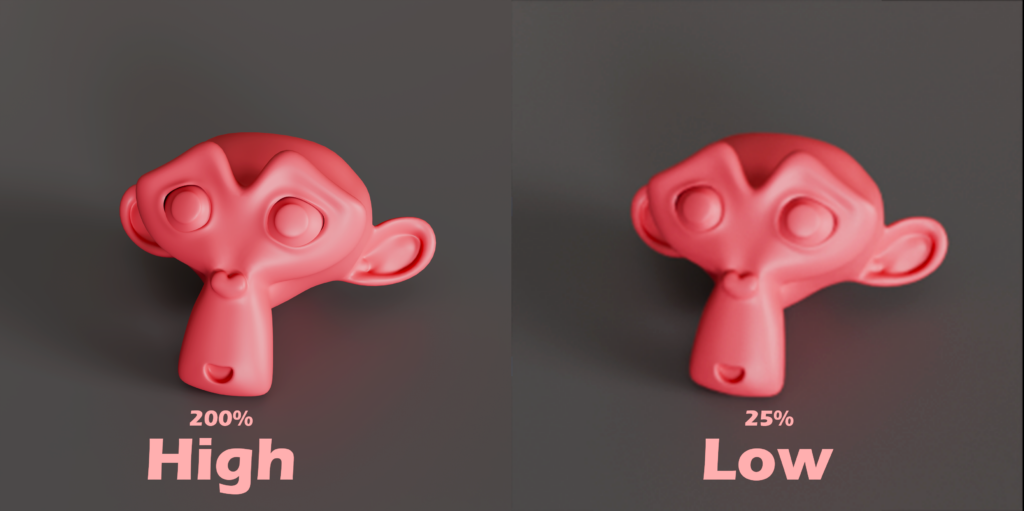

- Check the Percentage Scale in the Output Properties. If it’s set below 100%, your render will have reduced resolution, resulting in pixelation. Set it to 100% or higher for full resolution.
- Ensure that your textures are high resolution and properly mapped.
Why doesn’t my render fit the camera view?
- The aspect ratio in the Output Properties may not match the camera’s framing. Adjust the aspect ratio or reposition the camera to ensure the subject fits correctly. Use the composition guides in the camera viewport to help with alignment.
How do I handle different resolutions for multi-shot projects?
- Use The View Keeper to assign specific resolutions to different cameras. This ensures each shot is rendered with the correct resolution without manual adjustments between renders.
What’s the best resolution for large-scale prints?
- Calculate the resolution based on print dimensions and DPI (dots per inch). For example, a 24×36-inch poster at 300 DPI requires a resolution of 7200×10800 pixels.
Can I render in non-standard aspect ratios?
- Yes, you can manually adjust the Resolution X and Y values to create custom aspect ratios. Just ensure your camera alignment and framing are adjusted accordingly.
Changing and managing render resolution in Blender is straightforward but impactful. By understanding how to adjust dimensions, optimize for different outputs, and use tools like The View Keeper for multi-camera projects, you can enhance both your workflow and the final results. Whether you’re creating for the web, print, or animations, mastering render resolution including camera-specific settings with The View Keeper is a fundamental step in Blender.
